7 Screwed joint 7.2 Replacing the screwed joint Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 59 Fig.80: Ground connections ► Fasten the two ground connections (1) with one screw each (TX6. M2x4, torque 0.35…
7 Screwed joint
7.2 Replacing the screwed joint
58 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019

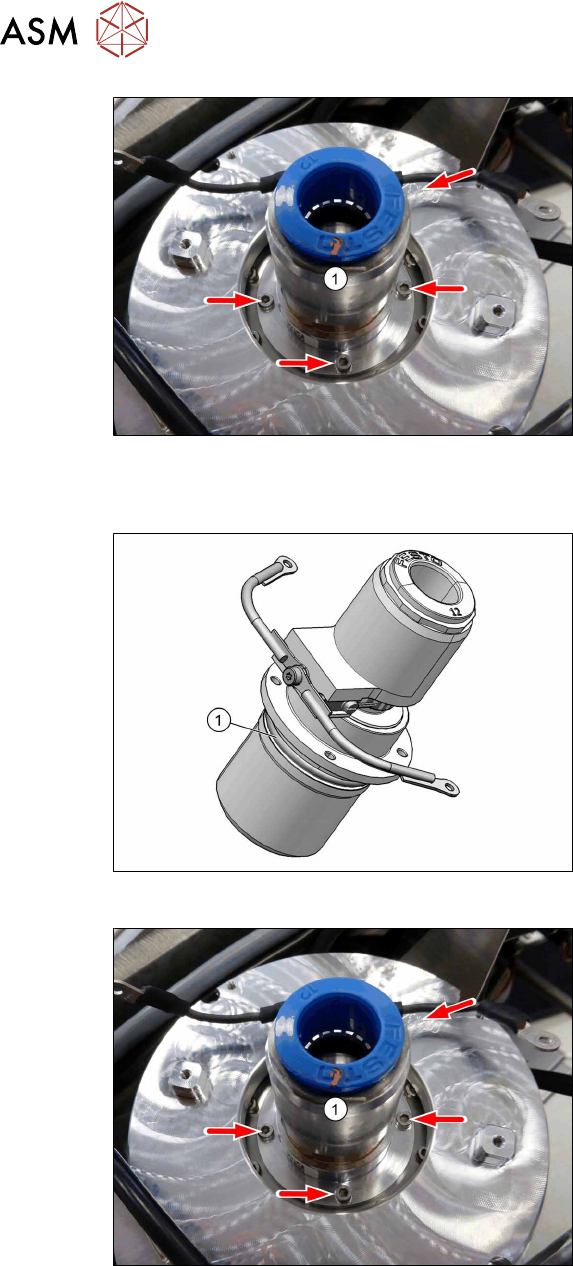

Fig.77: Screwed joint
► Remove the four screws (TX6) fasten-
ing the screwed joint(1).
► Pull the screwed joint up and out of the
head. You may need to apply some ef-
fort.
Installation
Fig.78: O-ring on the screwed joint
► Grease the rubber ring [03134226‑xx]
on the screwed joint slightly with unisi-
likon.
Fig.79: Screwed joint
► Insert the screwed joint(1) into the
head. Try and hit the screwed holes
well and first time, as subsequent
screwing in is only possible with great
effort.
► Fasten the screwed joint with the four
screws (TX6, M2x6, torque 0.56Nm).
7 Screwed joint
7.2 Replacing the screwed joint
Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 59

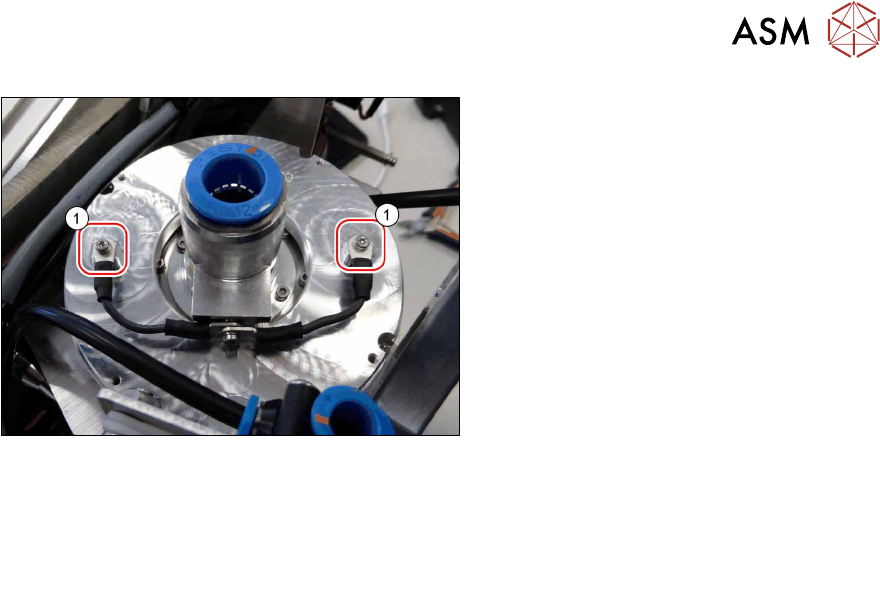

Fig.80: Ground connections
► Fasten the two ground connections(1)
with one screw each (TX6. M2x4,
torque 0.35Nm). Place a toothed disk
below and one above each ground con-
nection.
► Follow the removal instructions in reverse order for further installation.
Also observe the installation instructions in the following section:
7.1 "Replacing the cover cap and grommet" [}55]
► Observe in particular the torques specified!
7 Screwed joint
7.2 Replacing the screwed joint
60 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019
