1 Introduction

1.2 Other instructions

6 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019

1.1.2 Safety instructions on hazardous materials

CAUTION

Observe the safety data sheets

Observe the applicable safety data sheet, when handling hazardous materials (e. g. Loctite

241, ethanol).

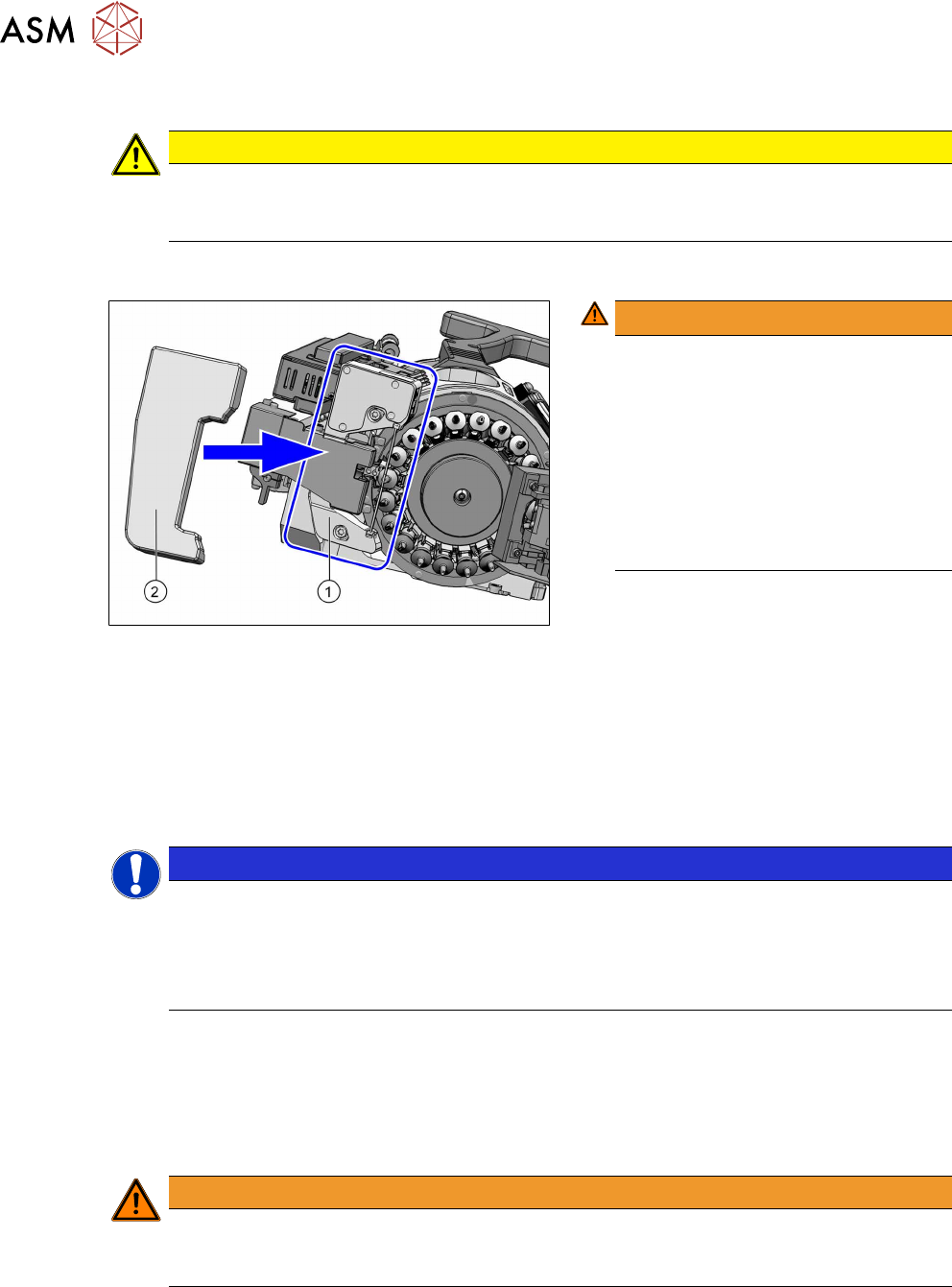

1.1.3 Safety instructions for the component sensor

Fig.1: Component sensor protective cap [03156306‑xx]

 WARNING!

Prisms on the component sensor

(1)

The component sensor prisms, under-

neath the placement head, are easily

damaged.

Never place the placement head down

on the component sensor.

For all work, fit the protective cap

[03156306‑xx](2) onto the component

sensor of the placement head.

1.2 Other instructions

1.2.1 Environmentally-friendly disposal of materials and components

Our products are manufactured using only materials and parts that can be easily separated and

disposed of in an environmentally-friendly way.

NOTICE

Observe the applicable regulations

The company operating the system has sole responsibility for the proper, environmentally-

friendly disposal of machines, working materials, consumable materials and wear parts.

► Please observe your national statutory provisions for waste disposal and environ-

mental protection.

1.2.2 Use of original accessories and spare parts

Only use original spare parts and authorized accessories. The use of other parts will affect safety

and will invalidate the liability for any consequential damage.

1.2.3 Information about this service manual

WARNING

Additional qualifications required

The service work described in this manual may only be performed by specially trained ser-

vice technicians, with appropriate qualifications and expertise.

If you should have any questions during the service work, please contact the SIPLACE customer

hotline directly or send an e-mail to hotline.siplace@asmpt.com.

1 Introduction

1.2 Other instructions

Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 7

1.2.4 ESD guidelines

1.2.4.1 What does ESD mean?

Fig.2: ESD label

Almost all of the modules in use today are equipped with highly integ-

rated Metal-Oxide-Semiconductor (MOS) blocks and components.

The manufacturing techniques used mean that these electronic com-

ponents are extremely sensitive to overvoltage and thus to electro-

static discharge.

The abbreviation for such modules is "ESD" (Electrostatic Sensitive

Device). "ESD" is used internationally. The following symbol on cab-

inet rating plates, racks or packaging indicates that components

which are sensitive to electrostatic discharge have been used and

thus that the modules concerned are also touch-sensitive.

ESDs can be destroyed by voltages and power levels that are far below the level that can be per-

ceived by humans. Such voltages occur if a person touches a component or module without

earthing themselves. Components that are exposed to such overvoltages do not generally appear

to be defective immediately - incorrect behavior starts after the component or module has been in

operation for some time.

1.2.4.2 Important measures to protect against static charging

► Most plastics can easily become charged and must therefore be kept away from at-risk com-

ponents.

► Always ensure that people, the workplace and packaging are safely earthed when handling

electrostatic sensitive components.

1.2.4.3 Handling ESD modules

Do not touch electronic modules unless it is absolutely essential to do so in order to carry out other

work. If it is necessary, make sure that you do not touch the pins or printed conductors when you

pick up flat modules.

Do not touch components unless:

●

you are constantly earthed by an ESD wrist strap or

●

You are wearing ESD shoes or ESD shoe earthing strips on an ESD floor.

Always discharge yourself before you touch an electronic module. To do this, simply touch a con-

ductive and earthed object immediately before you touch the module (such as unpainted parts of a

switch cabinet, a water pipe, etc.).

Do not allow modules with chargeable and highly insulating materials to touch one another, e.g.

plastic films, insulating table surfaces or items of clothing made from synthetic fibers.

Always place the modules on a conductive surface (table with an ESD coating, conductive ESD

foam, ESD bag or container).

Do not move the assemblies near to data view devices, monitors or television units. Keep a min-

imum distance of 10 cm to monitors.

1.2.4.4 Measurements and modifications to ESD modules

Do not take measurements on the modules unless the following conditions are fulfilled:

●

The measuring device is earthed (e.g. via PE conductors) or

●

You discharge the measuring head just before taking measurements with a potential-free

measuring device (e.g. by touching an unpainted metal part of the controller casing).

► Always use an earthed soldering iron if you carry out any soldering work.

1 Introduction

1.2 Other instructions

8 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019

1.2.4.5 Dispatching ESD modules

► Always store modules and components in conductive packaging (e.g. metallized plastic bags

or metal sleeves) and dispatch them in conductive packaging.

► If the packaging is not conductive, place the modules in a conductive envelope before pack-

aging. Use conductive expanded rubber, ESD bags, domestic aluminum foil or paper, for

example. NEVER use plastic bags or film.

► If the module has integral batteries, ensure that the conductive packaging does not touch or

short circuit the battery terminals and, if necessary, first cover the terminals with insulating

tape or material.

1.2.5 Validity of Document

This document contains service work instructions for all SIPLACE C&P20P2 placement heads.

The service work described in this manual is largely identical for all placement heads:

●

Diagrams should be seen as examples e.g. the diagram of a different paint finish does not

mean that the following information only applies to the type shown.

The manual focuses on describing mechanical service work.

Please refer to the circuit diagram folder for any electrical checks.

1.2.6 Release History

Document

SIPLACE Speedstar

(C&P20P2)

Service manual

Edition Amendments

08/2018 Initial release

01/2019 Amendments and supplements

●

Calibrating the heads and cameras (SW70x)

●

Zero point calibration of the pressure control valve

●

Minor corrections and supplements

1.2.7 ASM on the World Wide Web (WWW)

You can choose between the German and English version.

The different sections contain information about our products, services and contact persons.

In addition, registered customers can also access the MySIPLACE user group. Here you can call

up special information about our placement systems, e.g.

●

Technical documentation

●

Technical information

●

Spare parts lists etc.

Registration for the MySIPLACE user group is very simple:

► At the head of the web site, click on

and then on the Register

link.

► Fill in the registration form and send it off to us.

Soon afterwards, you will receive your access authorization with user name and password.
