9 Boards
9.2 Intermediate distributor board for SIPLACE C&P20P2
70 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019
9.2 Intermediate distributor board for SIPLACE C&P20P2

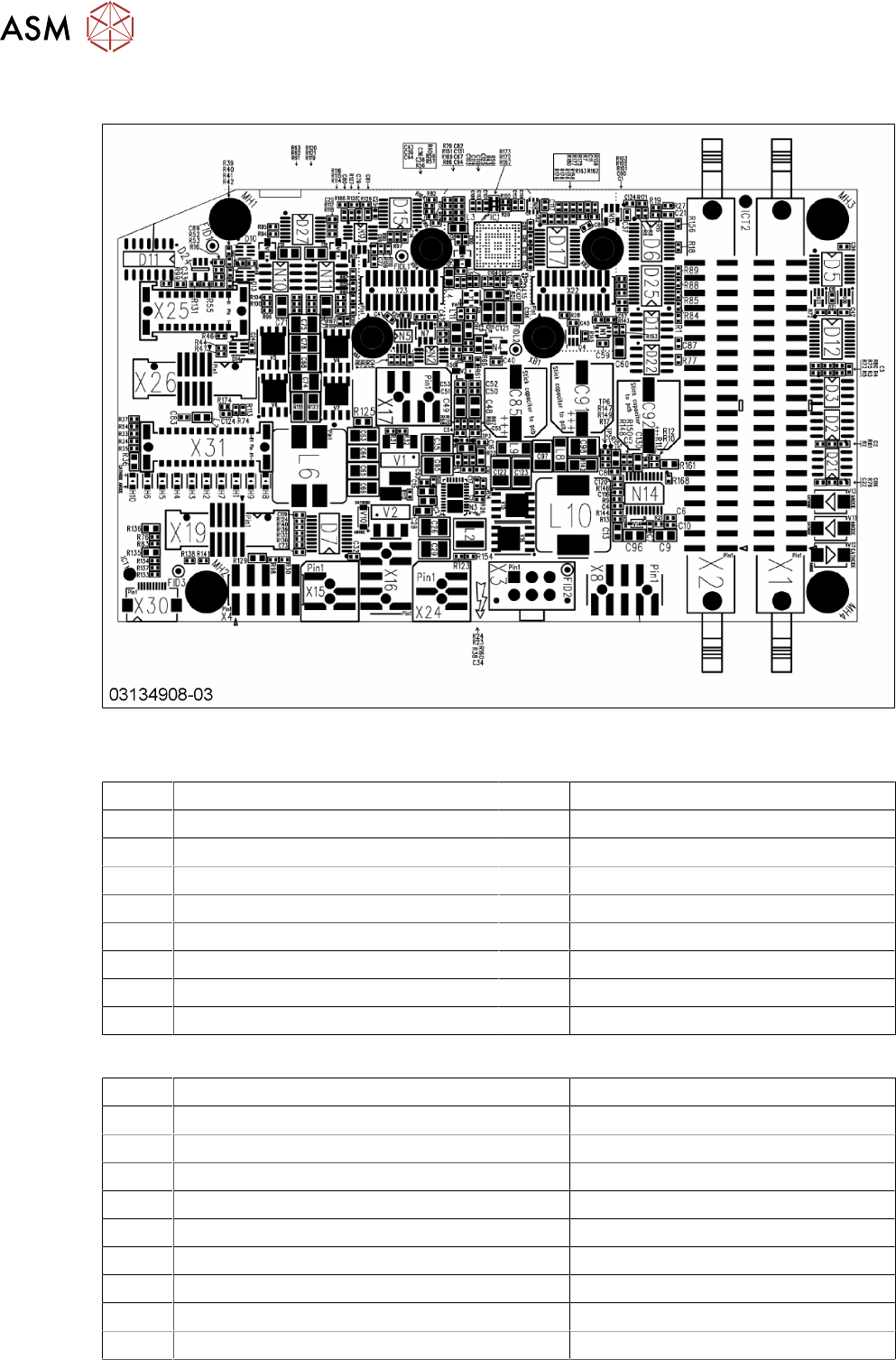

Fig.98: Intermediate distributor board for SIPLACE C&P20P2 [03134908-03]
Connector [03134908‑03]
X1,X2 Flat ribbon cable to the head adapter X3 Power supply for star motor
X4 Test connector X8 Power supply for Z axis
X15 Valve for return unit X16 CAN bus
X16b CAN bus X17 Z axis light barrier down
X19 Holding circuit board X20 Power supply for ED distributor
X21 Diagnosis connector X22 Incremental encoder for star and Z
X23 Incremental Z axis X24 Fan
X25 Digital pressure control valve X26 CO sensor
X30 Diagnostic FPGA X31 KED stator ring
LEDs [03134908‑03]
H1 Return unit Amber
H2 3.3 V Green
H3 5 V Green
H4 15 V Green
H5 24 V Green
H6 30V Green
H7 5 V pressure control valve Amber
H8 Fan FAN Amber
H9 Fan error ERR Red
H10 EON error 24 V DP (ground PWRGD_Dp) Green
9 Boards
9.3 Replacing the holding circuit board
Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 71
9.3 Replacing the holding circuit board
Parts
Fig.99: Holding circuit board
03130694-xx Board for holding circuit assembly SIPLACE C&P20 P2
Equipment and tools
T07 03078400-xx Torque Screwdriver ESD 1.0-5.0 Nm
T19 00318673-xx Wire cutter electronic size 110
T44 00386132-xx Torque screwdriver ESD 0.1-0,6 Nm
T47 00386253-xx Torque screwdriver ESD 0.4-1.0 Nm
T78 03090019-xx Torque interchangeable blades 2.5 mm, hexagonal
T98 03171857-xx Torque Allen swap blade 1.5 mm TX10
C08 00308458-xx Cable ties B=2.5mm, L=102mm Panduit
T --- Tools for removing/fitting and calibrating the placement head, if needed
(see also the service manual for your machine)
Preparation
► Remove the head from the machine. For details about removing and fitting the placement
head, refer to the service manual for your machine.
Fit the head on the head mount [03056231‑xx].
CAUTION
Do not damage or contaminate the camera lens system.
► Make sure that you do not damage or contaminate the camera lens system.
► Make sure that the component sensor protective cap is fitted.
1.1.3 "Safety instructions for the component sensor" [}6]
9 Boards
9.3 Replacing the holding circuit board
72 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019
Removal
► Dismantle the component camera.
3.1 "Replacing the Component Camera" [}13]
Fig.100: Loosening cable ties
► Remove the cable ties holding the fan
cable.
Fig.101: Unplugging the hose
► Pull the hose(1) off the circuit board for
the holding circuit(2).
Fig.102: Fastening screws
► Remove the two fastening screws (1)
(TX10) and(2) (TX10).
