10 Miscellaneous (fan, retaining elements) 10.1 Replacing the fan Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 77 Fig.110: Fan cable ► Run the fan cable from the fan (1) to the circuit board for the intermed…
10 Miscellaneous (fan, retaining elements)
10.1 Replacing the fan
76 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019
Removal
► Dismantle the component camera.
3.1 "Replacing the Component Camera" [}13]

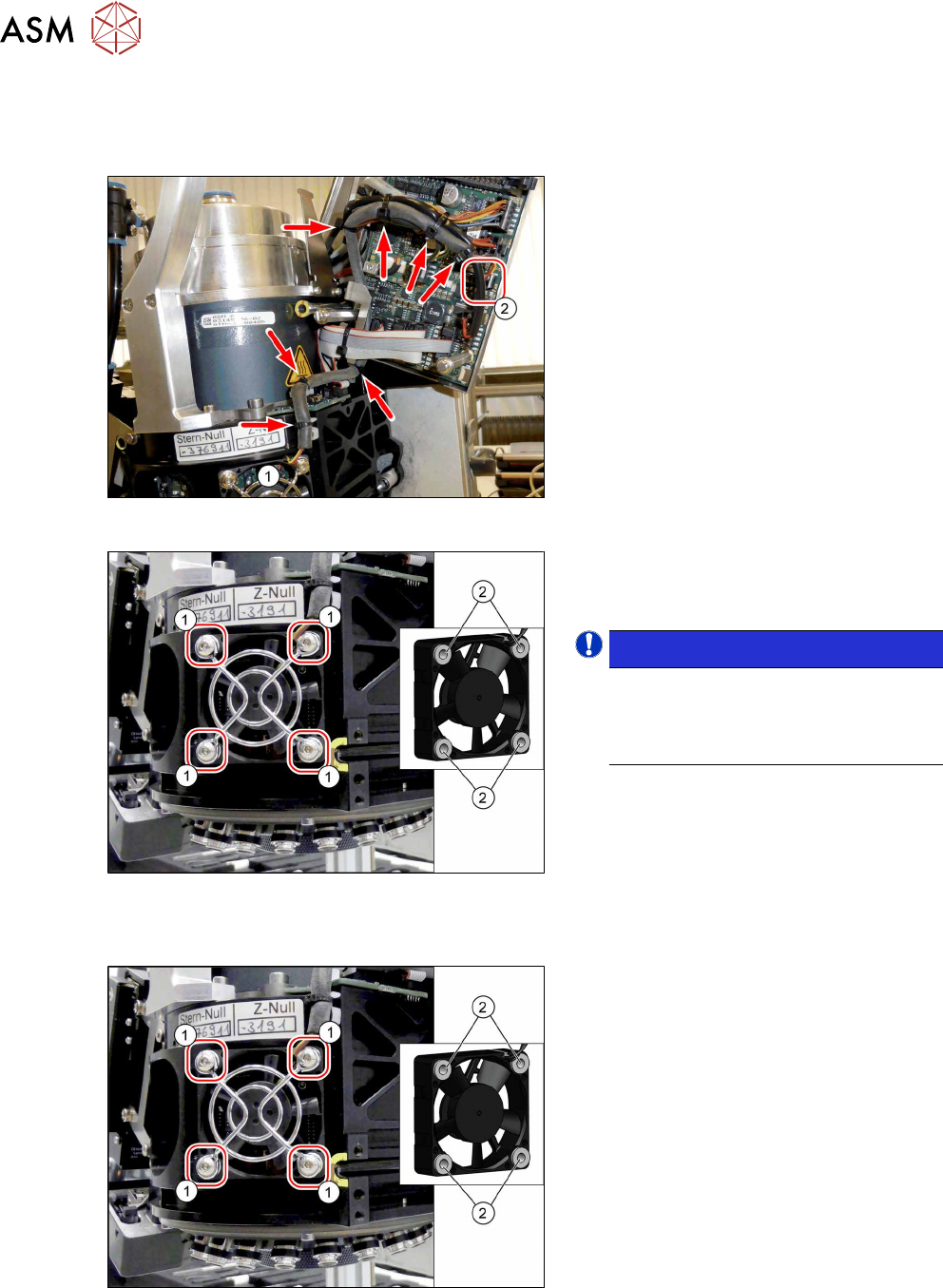

Fig.107: Fan cable
► Unthread the fan cable from the fan(1),
as far as the circuit board for the inter-
mediate distributor(2).
Open the relevant cable ties for this.
Fig.108: Screws fastening the fan
► Remove the four screws (1)(Allen 2)
fastening the fan and then remove the
fan, together with the fan grille.
NOTICE!
Between the fan and the fan grille,
there is a fan clamp(2)on each
screw.
Make sure that you do not loose these.
.
Installation
Fig.109: Screws fastening the fan
► Place the fan clamps (2) between the
fan and the fan grille.
► Fasten the fan and the fan grille with
the four screws(1) (Allen2, M3x16,
Torque 0.35Nm).
10 Miscellaneous (fan, retaining elements)
10.1 Replacing the fan
Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 77

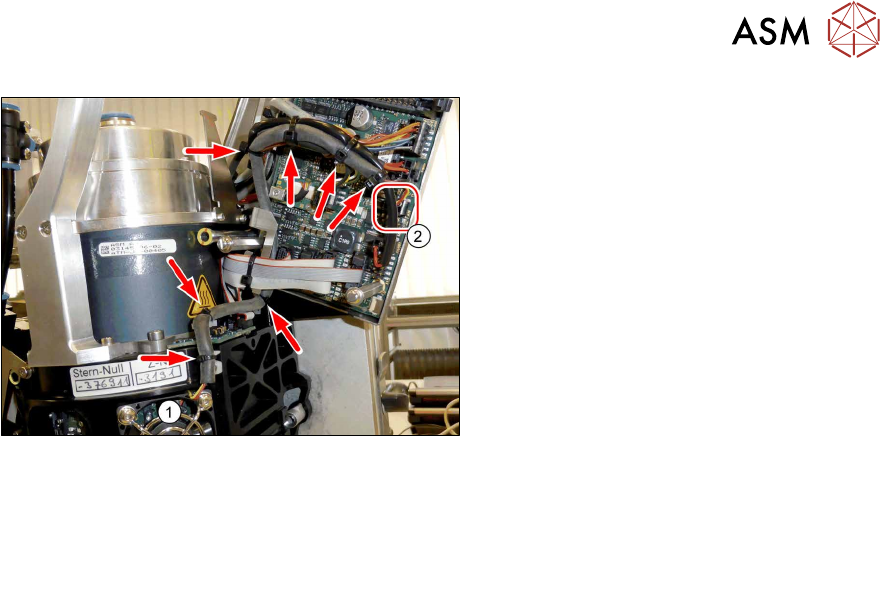

Fig.110: Fan cable
► Run the fan cable from the fan(1) to
the circuit board for the intermediate
distributor(2) (connector X24).
► Replace the cable ties.
► Follow the removal instructions in reverse order for further installation.
Also observe the installation instructions in the following section:
3.1 "Replacing the Component Camera" [}13]
► Observe in particular the torques specified!
10 Miscellaneous (fan, retaining elements)
10.2 Replacing the retaining element mount and mount
78 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019
10.2 Replacing the retaining element mount and mount
Parts

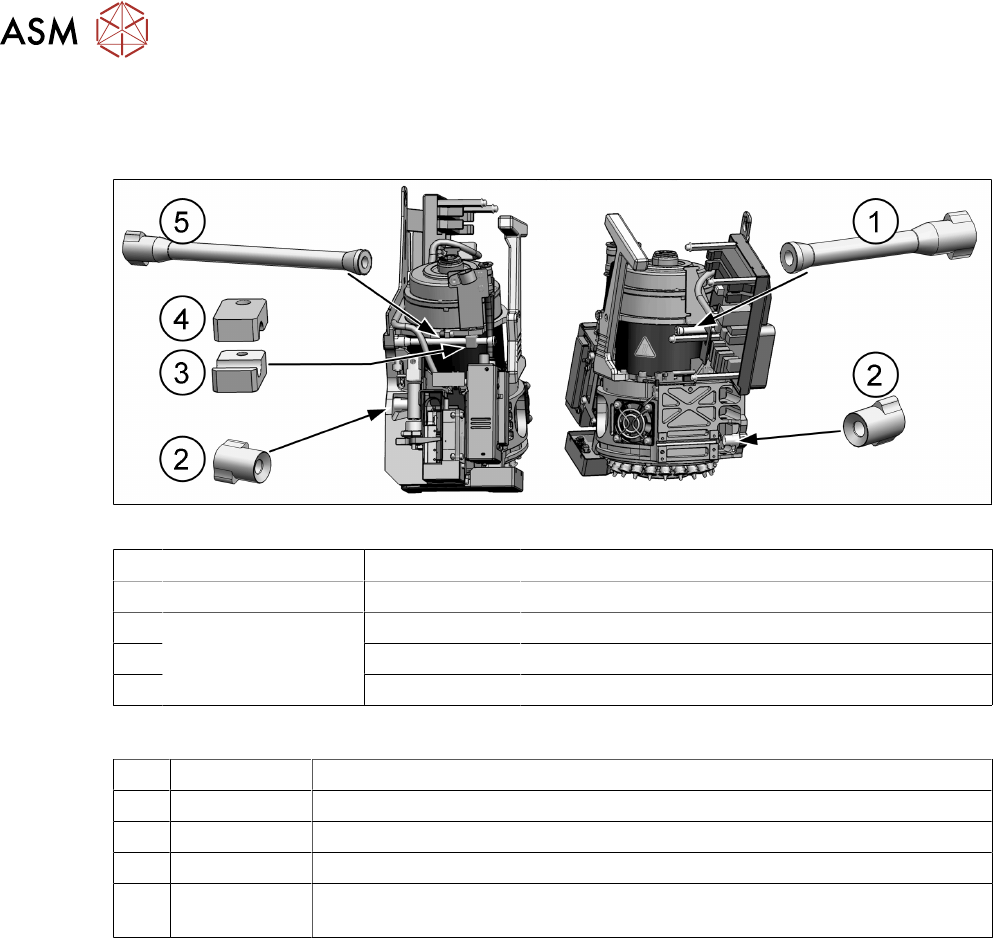

Fig.111: Retaining element mount and mount
1 Top right 03139206-xx Retaining element TR / C&P20 P2 S 2
2 Bottom right/left 03069898-xx Retaining element BR / C&P20 A
3 Top left 03149793-xx Mount 2 retaining element / C&P20 P2 S 2
4 03139617-xx Mount retaining element / C&P20 P2 S 2
5 03138542-xx Retaining element TL / C&P20 P2 S 2
Equipment and tools
T44 00386132-xx Torque screwdriver ESD 0.1-0,6 Nm
T47 00386253-xx Torque screwdriver ESD 0.4-1.0 Nm
T76 00386135-xx Torque interchangeable blades 1.5 mm, hexagonal
T97 03075862-xx Torque Allen swap blade 1.5 mm TX8
T --- Tools for removing/fitting and calibrating the placement head, if needed
(see also the service manual for your machine)
Preparation
► Remove the head from the machine. For details about removing and fitting the placement
head, refer to the service manual for your machine.
► Do not fit the head onto the head mount.
► Make sure that the component sensor protective cap is fitted.
1.1.3 "Safety instructions for the component sensor" [}6]
