1 Introduction

1.2 Other instructions

Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 7

1.2.4 ESD guidelines

1.2.4.1 What does ESD mean?

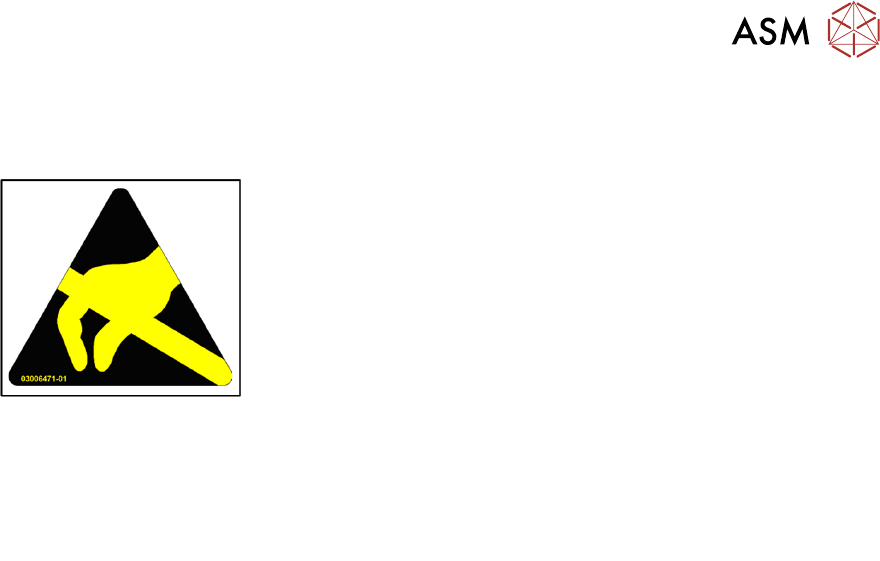

Fig.2: ESD label

Almost all of the modules in use today are equipped with highly integ-

rated Metal-Oxide-Semiconductor (MOS) blocks and components.

The manufacturing techniques used mean that these electronic com-

ponents are extremely sensitive to overvoltage and thus to electro-

static discharge.

The abbreviation for such modules is "ESD" (Electrostatic Sensitive

Device). "ESD" is used internationally. The following symbol on cab-

inet rating plates, racks or packaging indicates that components

which are sensitive to electrostatic discharge have been used and

thus that the modules concerned are also touch-sensitive.

ESDs can be destroyed by voltages and power levels that are far below the level that can be per-

ceived by humans. Such voltages occur if a person touches a component or module without

earthing themselves. Components that are exposed to such overvoltages do not generally appear

to be defective immediately - incorrect behavior starts after the component or module has been in

operation for some time.

1.2.4.2 Important measures to protect against static charging

► Most plastics can easily become charged and must therefore be kept away from at-risk com-

ponents.

► Always ensure that people, the workplace and packaging are safely earthed when handling

electrostatic sensitive components.

1.2.4.3 Handling ESD modules

Do not touch electronic modules unless it is absolutely essential to do so in order to carry out other

work. If it is necessary, make sure that you do not touch the pins or printed conductors when you

pick up flat modules.

Do not touch components unless:

●

you are constantly earthed by an ESD wrist strap or

●

You are wearing ESD shoes or ESD shoe earthing strips on an ESD floor.

Always discharge yourself before you touch an electronic module. To do this, simply touch a con-

ductive and earthed object immediately before you touch the module (such as unpainted parts of a

switch cabinet, a water pipe, etc.).

Do not allow modules with chargeable and highly insulating materials to touch one another, e.g.

plastic films, insulating table surfaces or items of clothing made from synthetic fibers.

Always place the modules on a conductive surface (table with an ESD coating, conductive ESD

foam, ESD bag or container).

Do not move the assemblies near to data view devices, monitors or television units. Keep a min-

imum distance of 10 cm to monitors.

1.2.4.4 Measurements and modifications to ESD modules

Do not take measurements on the modules unless the following conditions are fulfilled:

●

The measuring device is earthed (e.g. via PE conductors) or

●

You discharge the measuring head just before taking measurements with a potential-free

measuring device (e.g. by touching an unpainted metal part of the controller casing).

► Always use an earthed soldering iron if you carry out any soldering work.

1 Introduction

1.2 Other instructions

8 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019

1.2.4.5 Dispatching ESD modules

► Always store modules and components in conductive packaging (e.g. metallized plastic bags

or metal sleeves) and dispatch them in conductive packaging.

► If the packaging is not conductive, place the modules in a conductive envelope before pack-

aging. Use conductive expanded rubber, ESD bags, domestic aluminum foil or paper, for

example. NEVER use plastic bags or film.

► If the module has integral batteries, ensure that the conductive packaging does not touch or

short circuit the battery terminals and, if necessary, first cover the terminals with insulating

tape or material.

1.2.5 Validity of Document

This document contains service work instructions for all SIPLACE C&P20P2 placement heads.

The service work described in this manual is largely identical for all placement heads:

●

Diagrams should be seen as examples e.g. the diagram of a different paint finish does not

mean that the following information only applies to the type shown.

The manual focuses on describing mechanical service work.

Please refer to the circuit diagram folder for any electrical checks.

1.2.6 Release History

Document

SIPLACE Speedstar

(C&P20P2)

Service manual

Edition Amendments

08/2018 Initial release

01/2019 Amendments and supplements

●

Calibrating the heads and cameras (SW70x)

●

Zero point calibration of the pressure control valve

●

Minor corrections and supplements

1.2.7 ASM on the World Wide Web (WWW)

You can choose between the German and English version.

The different sections contain information about our products, services and contact persons.

In addition, registered customers can also access the MySIPLACE user group. Here you can call

up special information about our placement systems, e.g.

●

Technical documentation

●

Technical information

●

Spare parts lists etc.

Registration for the MySIPLACE user group is very simple:

► At the head of the web site, click on

and then on the Register

link.

► Fill in the registration form and send it off to us.

Soon afterwards, you will receive your access authorization with user name and password.

1 Introduction

1.3 Staff qualifications and training

Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 9

1.3 Staff qualifications and training

Qualified or adequately trained personnel means that these people are familiar with the setting up,

operation and maintenance of the machine and the add-on devices and are suitably qualified, e.g.:

●

Have been trained, instructed or authorized to switch on and off, isolate, earth and identify

electrical circuits and system components in accordance with normal safety standards.

●

Have been trained or instructed in the upkeep and use of appropriate safety equipment in

accordance with normal safety standards.

●

Have received first aid training.

1.4 Abbreviations

Abbreviation Description

PA, PA1, PA2 Placement area, Placement area 1, Placement area 2

CO Component

CP Collect&Place

C&P20, CP20 Collect&Place head with 20 segments

C&P20/A/M Collective term for C&P20, C&P20 A and C&P20 M

C&P20 P/M2/P2 Collective term for C&P20 P, C&P20 M2 and C&P20P2

PRV Pressure control valve (PRV)

ESD Electrostatic sensitive device

EMC Electromagnetic compatibility

FHE Fast Hardware Exchange

HEK Head Exchange Kit

HMK Head Maintenance Kit

Board PCB board

P&P Pick&Place

SC Station computer

ID Intermediate distributor
