11 Software functions 11.1 Calibration Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 83 From SW 712.x Fig.119: Combined steps view ► On the left-hand side, under Combined steps , select the check box Cali- bra…
11 Software functions
11.1 Calibration
82 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019
11.1.2 Calibrating the heads and cameras (SW7x)

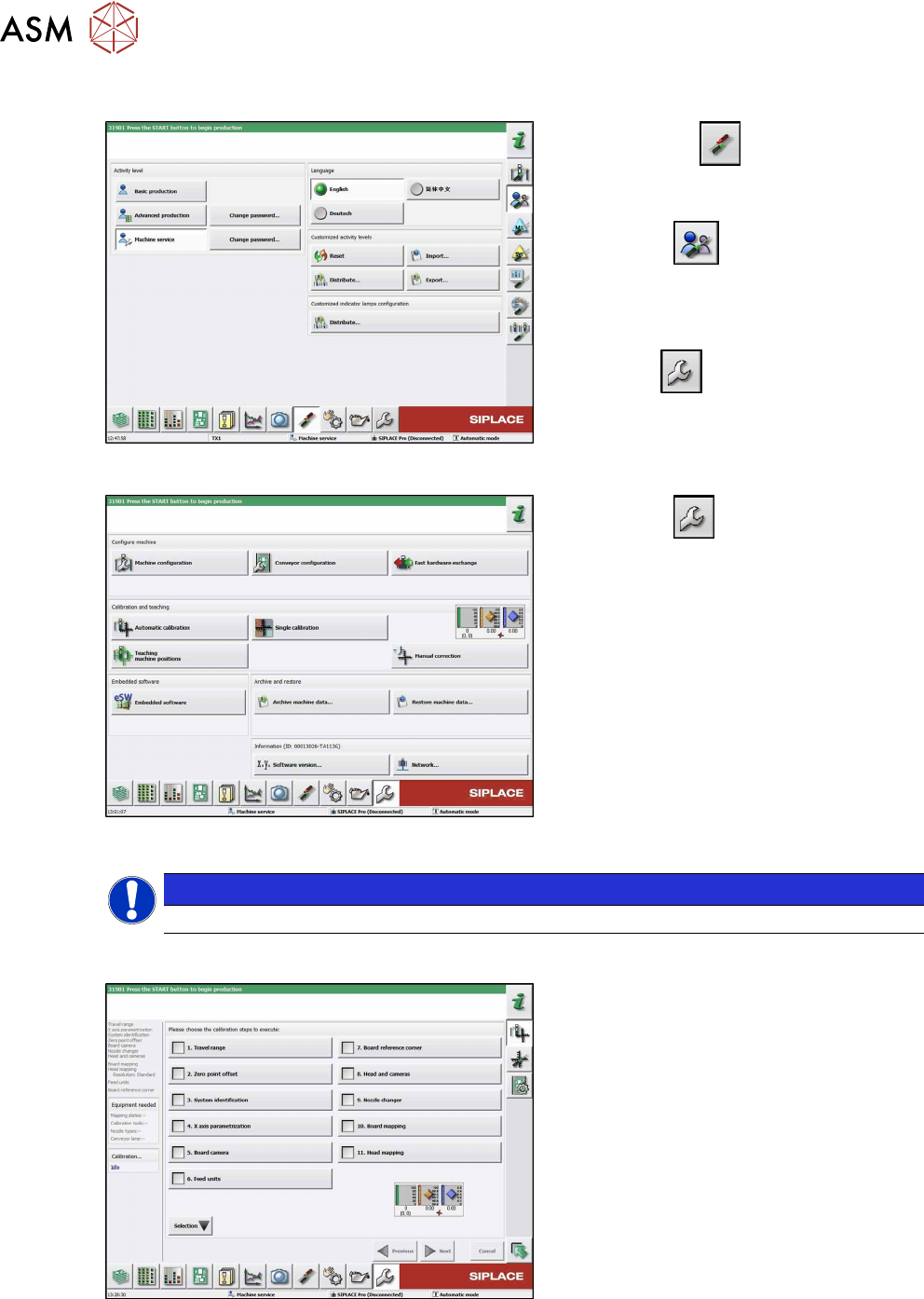

Fig.116: Select operator level
► Click on the
button, to open the
Configure, update and calibrate the
machine menu.
► Click the
button to open the
Check and set user settings menu.
► Switch over to the operator level Ma-
chine service.
ð The
button will appear.
Fig.117: Service menu
► Click the
button to enter the Ser-
vice menu.
► Click the Automatic calibration but-
ton.
NOTICE
With station software 712.0, the user interface of the Automatic calibration has changed.
Up to SW 711.x
Fig.118: Automatic calibration
► Choose Heads and cameras.
► Choose the Next button.
Follow the instructions on the next pages:
► On the next page, select the gantries
on which the heads to be calibrated are
located and then click on the Next but-
ton.
► The next step is to check the calibration
conditions (nozzle, calibration tool etc.).
Follow the instructions provided.
After this step, the calibration will begin. All
required intermediate steps (head height
etc.) will be performed automatically.
11 Software functions
11.1 Calibration
Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019 83
From SW 712.x

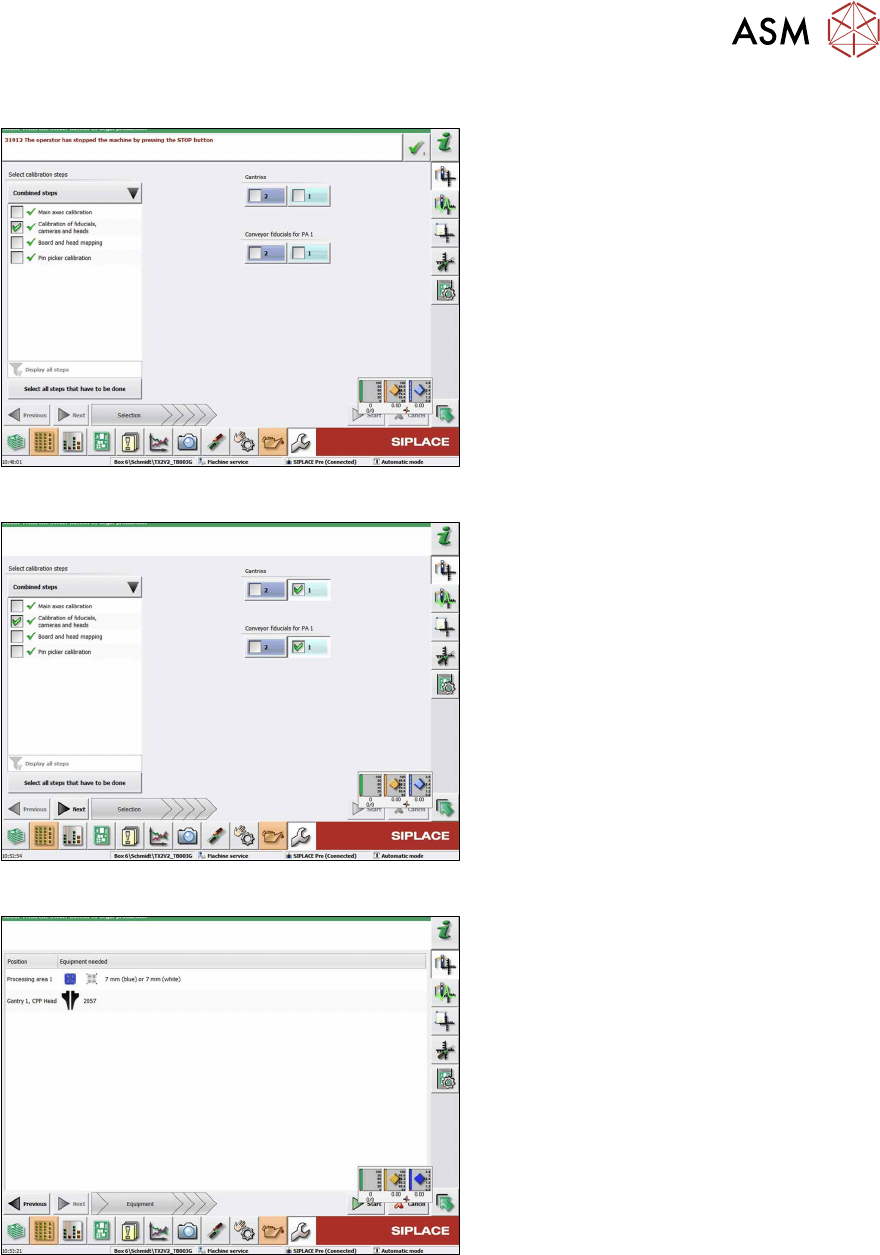

Fig.119: Combined steps view
► On the left-hand side, under Combined
steps, select the check box Cali-
bration of fiducials, cameras and
heads.
► If you chose Display all steps on the
left-hand side, choose Calibration of
cameras and heads.
► Under Gantries, select the location. For
a TX machine, always location 1.
► Choose Next.
Fig.120: Prerequisites view
Prerequisites view.
► Check the preconditions and choose
Start to start the calibration.
Fig.121: Calibration steps and status view
Calibration steps and status view.
11 Software functions
11.1 Calibration
84 Service Manual SIPLACE SpeedStar (C&P20 P2) 01/2019
Fig.122: Results view
► Choose Results to display detailled in-
formation (important in case of an
error).
Fig.123: Save view
► Choose Save after successful cali-
bration.
Fig.124: Save button
► Choose the Save button.
ð Calibration has finished.
