KM8-9910 Edge Clamp 7 6 Conveyor Unit N o . Part No. Part Name Q'ty Remarks N o . Part No. Part Name Q'ty Remarks 1 KU7-M9231-00X P L A TE, EDGE CLAMP 2 2 KU0-M9232-00X P L A T E 2 , ED G E 3 3 KU0-M9233-10X BR…

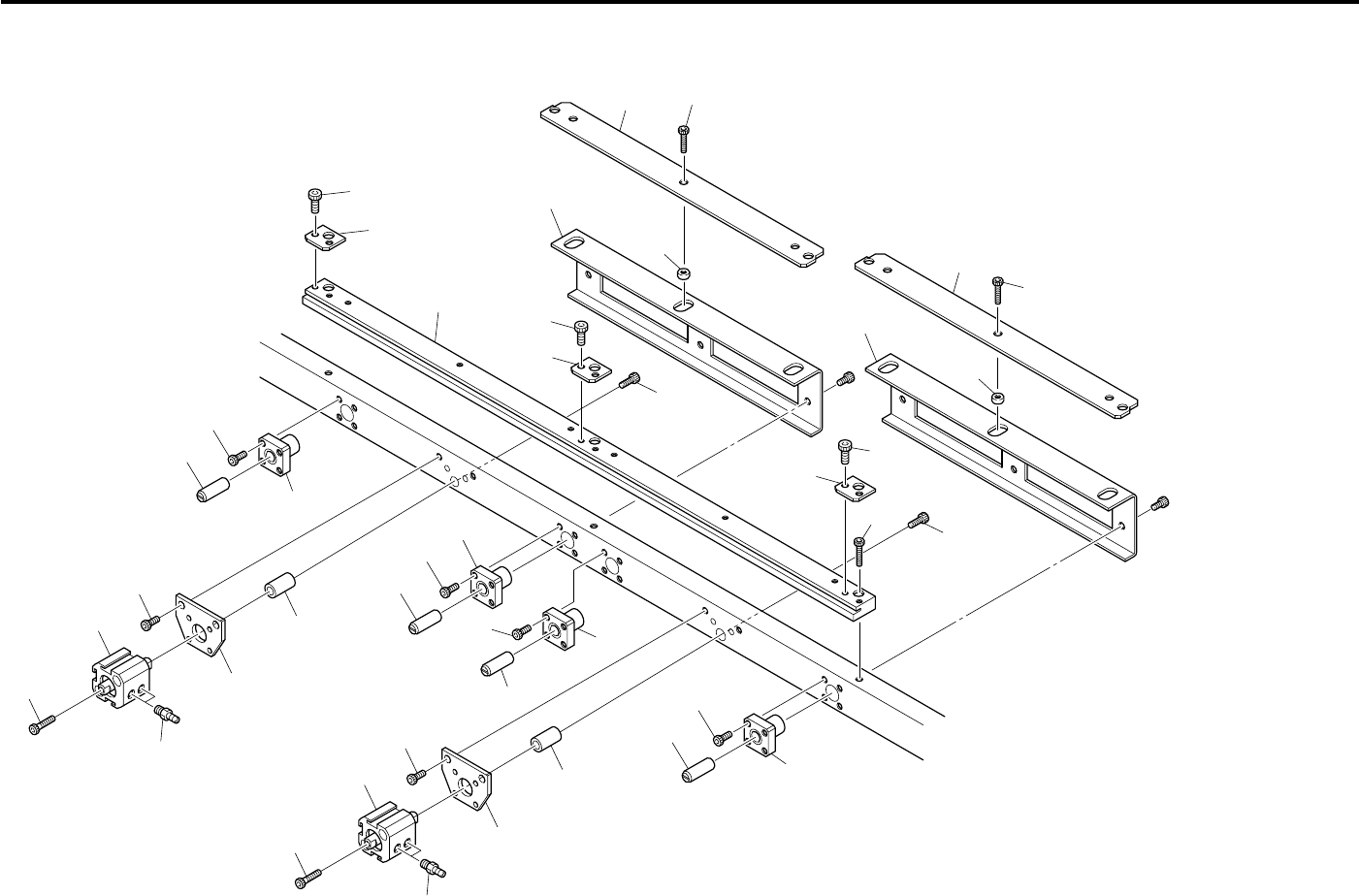

KM8-9910
Edge Clamp
76
Conveyor Unit
12
2
4
4
11
5
12
11
5
4
13
13
11
5
11
4
5
2
12
16
2
8
1
13
9
1
7
7
13
9
6
15
17
3
18
10
6
15
17
3
18
10
KM8-9910
Edge Clamp
76
Conveyor Unit
No. Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 KU7-M9231-00X PLATE, EDGE CLAMP 2
2 KU0-M9232-00X PLATE 2, EDGE 3
3 KU0-M9233-10X BRACKET, CYLINDER 2
4 KU0-M9234-00X NUT, SHAFT 4
5 KU0-M9235-00X SHAFT 4
6 KG7-M9236-00X CYLINDER 2
7 KU0-M9237-01X COLLAR 3 6
8 KU0-M9130-01X GUIDE 2 1
9 KU0-M9131-00X PLATE 3, GUIDE 2
10 $BF4 BU JOINT 4
11 91317-03008 BOLT, HEX. SOCKET HEAD 16
12 91317-03010 BOLT, HEX. SOCKET HEAD 6
13 91317-03012 BOLT, HEX. SOCKET HEAD 6
14 91317-03014 BOLT, HEX. SOCKET HEAD 1
15 91317-03022 BOLT, HEX. SOCKET HEAD 4
16 91317-04010 BOLT, HEX. SOCKET HEAD 3
17 91317-04008 BOLT, HEX. SOCKET HEAD 4
18 KU0-M9238-00X COLLAR 4 2
