Page 1-46
Check Every 140 Hours (Once a Week)
3. Cleaning and lubricating the board conveyor
Clean the surroundings of the board holder and the support pin receiver and directly apply the
grease to the width adjustment ball screw and width adjustment linear shaft on the board conveyor.
1. Ensure that the safety cover is
closed, and turn on the servo switch.
2. Select the operation table.
3. Press
UNLOCK
+ .
• The board conveyor moves to the widest width,
and the board holder rises to the exchange
position.
4. Turn OFF the servo switch.
5. Open the safety cover.
6. Pull out all of support pins.
∗ When the accurate positioning is necessary for
setting the support pin, as setting the dual side
mounting, mark the receiver.
∗ You can also pull out the support pin batch
exchange table.
“1-4-4 Cleaning the Support Pin Batch
Exchange Table”
7. Remove dust on the board holder and
support pin receiver with a broom.
To the next page
444C-E-MMA01-A06-07
OFF ( )
ON ( )
SERVO
OFF ( )
ON ( )
SERVO
444C-417P
Support pin
Pin change
Rise
2
1
Page 1-47
REGULAR
MAINTENANCE
1
Check Every 140 Hours (Once a Week)
8. Close the safety cover.
9. Turn ON the servo switch.
10. Press
UNLOCK
+ .
• The board holder moves down to the origin.
11. Press
UNLOCK
+ Conveyor Mid posi .
• The movable side rail of the board conveyor
moves to the middle position.
12. Turn OFF the servo switch.
13. Open the safety cover.
14. Apply grease to the width adjustment
ball screw and width adjustment
linear shaft on the board conveyor.
[Grease : SHELL STAMINA GREASE RL2]
∗ Apply grease to both rails on the middle
position.
To the next page
444C-E-MMA01-A06-04
OFF ( )
ON ( )
SERVO
OFF ( )
ON ( )
SERVO
2
1
Width adjustment
ball screw
Width adjustment
linear shaft
Pin change
Down
0306C0AA
Page 1-48

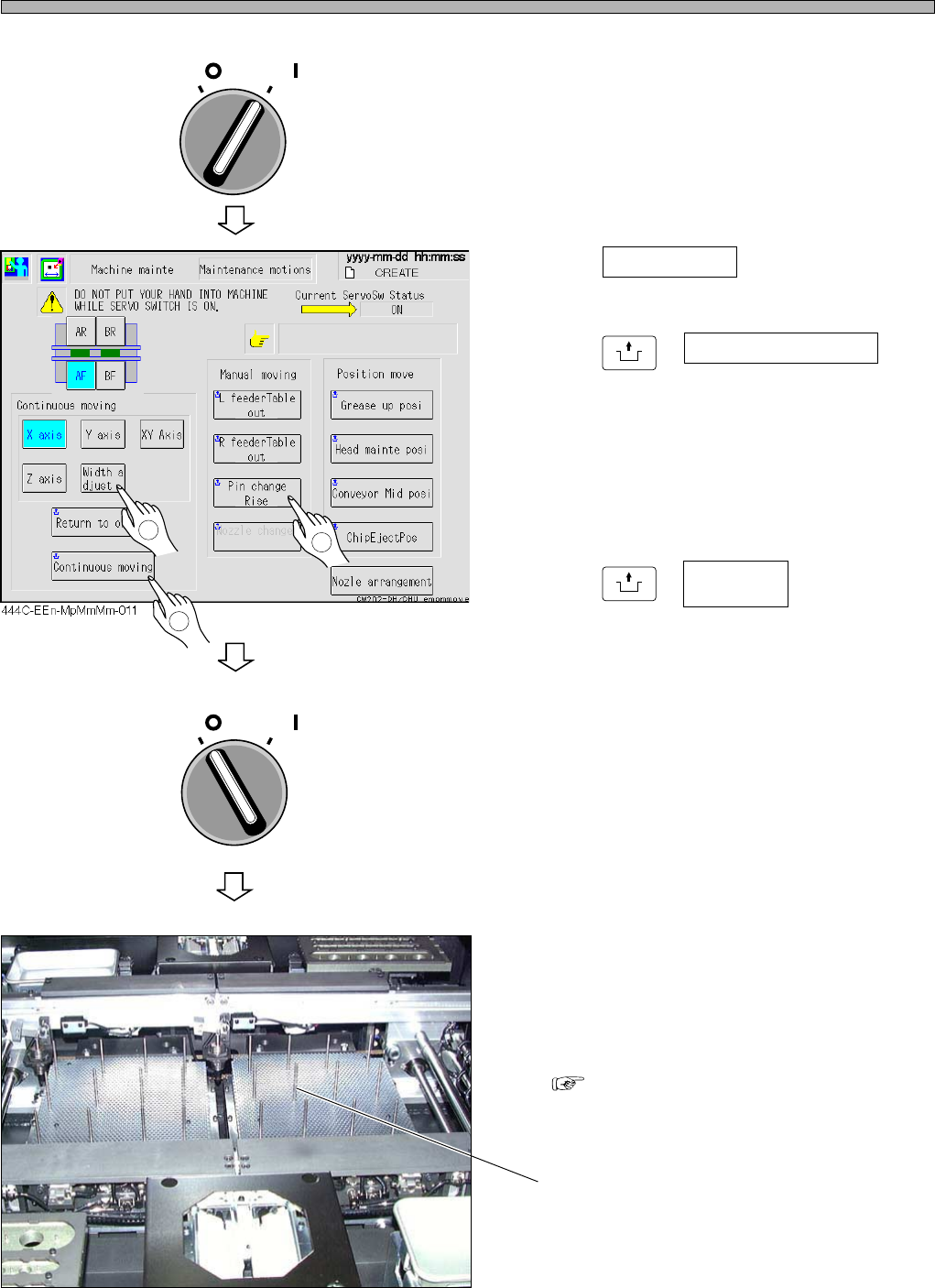

Check Every 140 Hours (Once a Week)
15. Close the safety cover.
16. Turn ON the servo switch.
17. Press Width adjust .
18. Press
UNLOCK
+ continuous moving .
• The movable side rail of the board conveyor
goes back and forth on the width adjustment
axis at full stroke, and spreads the grease over
whole area of the width adjustment ball screw
and width adjustment linear shaft.
19. Press
UNLOCK
+ .
• The board holder rises to the exchange
position.
20. Turn OFF the servo switch.
21. Open the safety cover.
22. Insert the support pin into the support
pin receiver.
∗ When the support pin batch exchange table is
pulled out, return it back.
“1-4-4 Cleaning the Support Pin Batch
Exchange Table”
444C-E-MMA01-A06-04
OFF ( )
ON ( )
SERVO
OFF ( )
ON ( )
SERVO
2
1
Pin change
Rise
Support pin
3
444C-417P
