Page 1-52 Check Every 140 Hours (Once a Week) 9. Lubricate the Y -axis linear bearing and Y -axis ball screw on the front side through the grease nipple. [Grease : Stamina Grease RL2] 10. Lubricate the X-axis linear bear…

100%1 / 158
Page 1-51
REGULAR
MAINTENANCE
1
444C-E-MMA01-A07-08

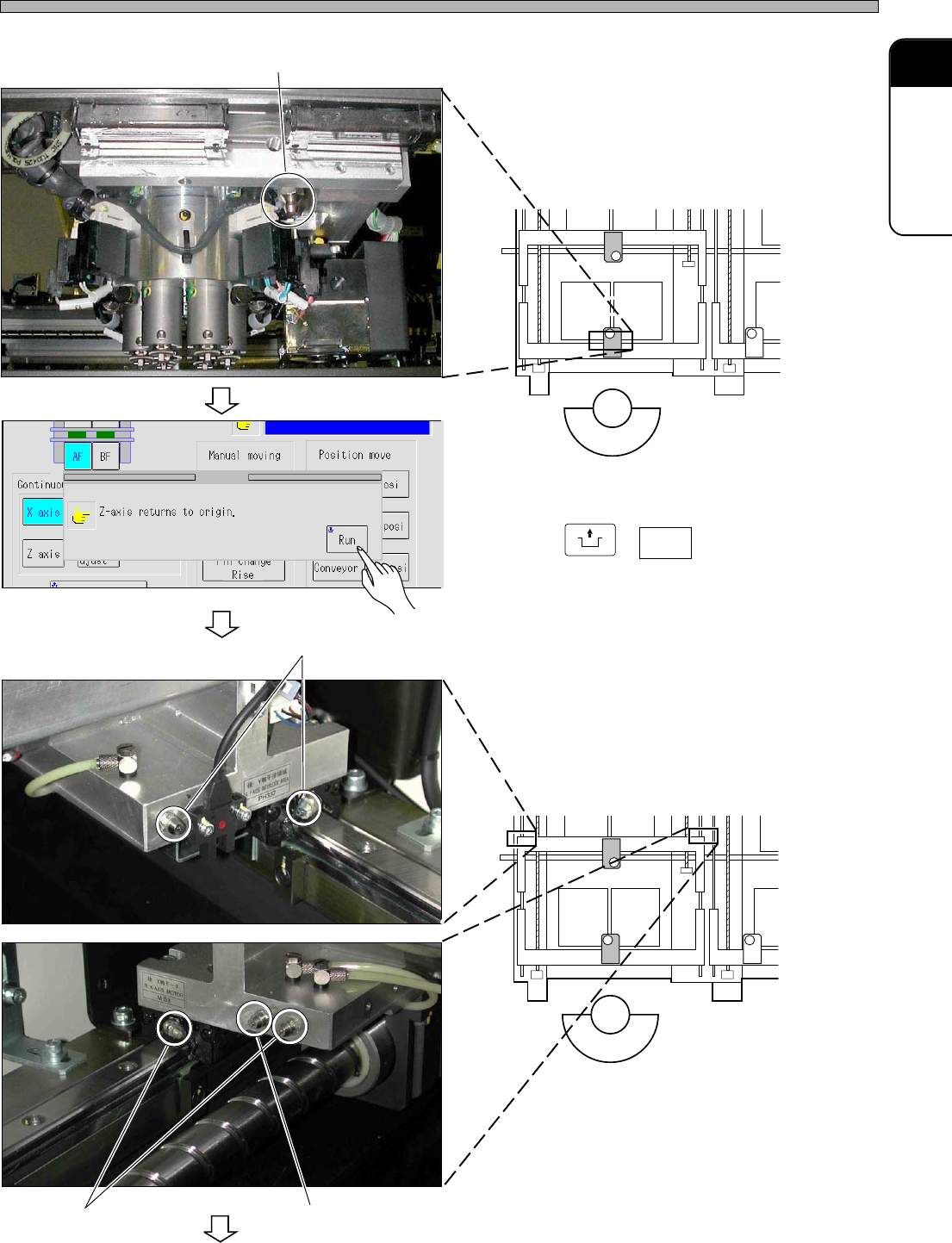

Check Every 140 Hours (Once a Week)
6. Lubricate the Z-axis ball screw
through the grease nipple.
[Grease : SHELL STAMINA GREASE RL2]
∗ Be careful not to infuse too much grease.
Otherwise, grease can drop on a board or a
motor-overload error during wintertime can
occur.
7. Press
UNLOCK
+ Run .
8. Lubricate the Y-axis linear bearing
and Y-axis ball screw on the rear side
through the grease nipple.
[Grease : Stamina Grease RL2]
To the next page
444C-418E
Grease nipple
444C-523P
444C-EEn-MpMmMm-015
444C-418E
4H4C-509P
4H4C-510P
Grease nipple for linear bearing
Grease nipple for
linear bearing
Grease nipple for
ball screw
Page 1-52

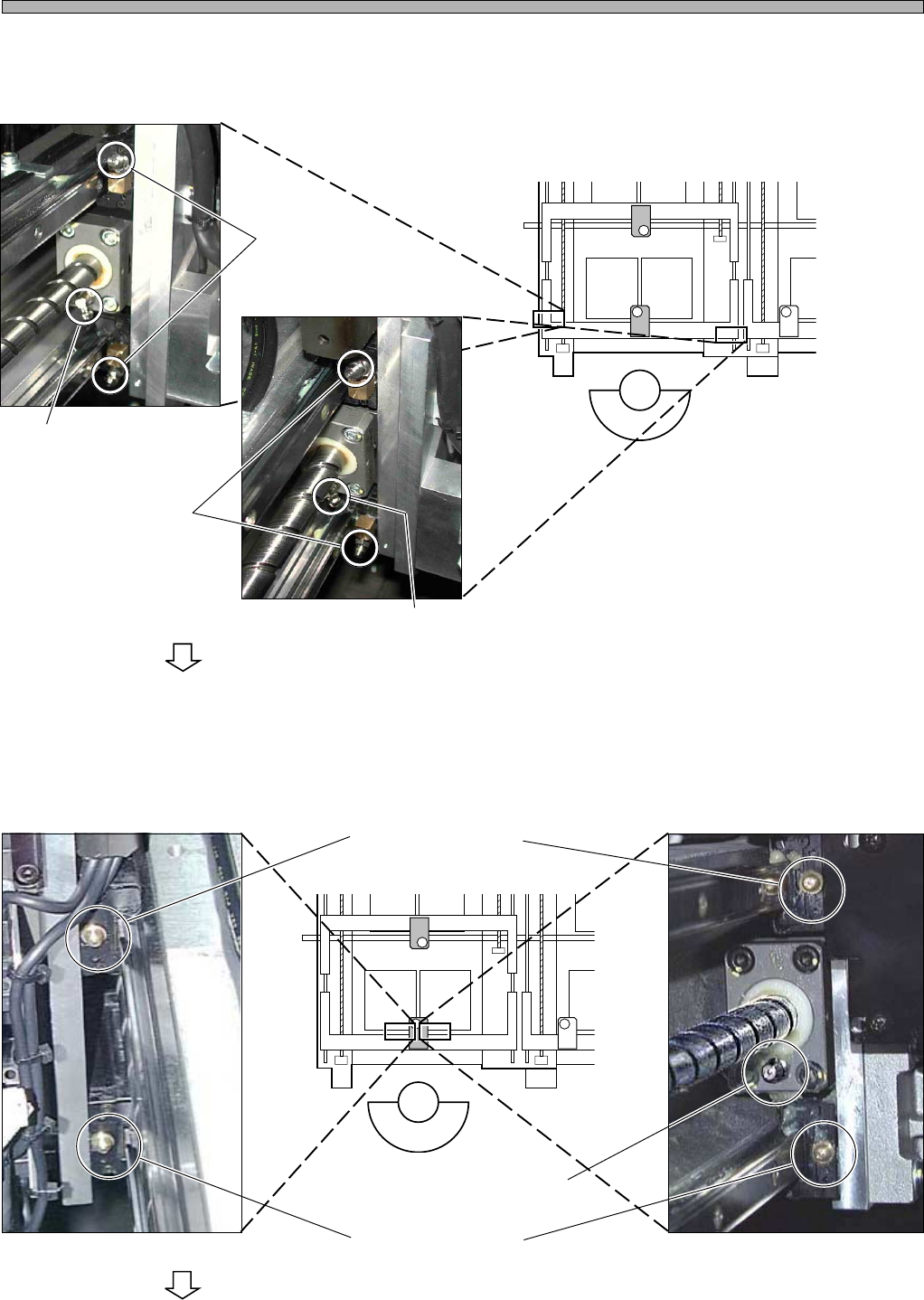

Check Every 140 Hours (Once a Week)
9. Lubricate the Y-axis linear bearing
and Y-axis ball screw on the front side
through the grease nipple.
[Grease : Stamina Grease RL2]
10. Lubricate the X-axis linear bearing
and X-axis ball screw on the front and
rear sides through the grease nipple.
[Grease : SHELL STAMINA GREASE RL2]
To the next page
444C-E-MMA01-A07-05
444C-418E
4H4C-511P
4H4C-512P
Grease nipple for
linear bearing
Grease nipple for
linear bearing
Grease nipple for
ball screw
Grease nipple for
ball screw
444C-441P
444C-418E
444C-432P
X-axis linear bearing
X-axis ball screw
X-axis linear bearing
Page 1-53
REGULAR
MAINTENANCE
1
2
1
2
1
444C-E-MMA01-A07-02

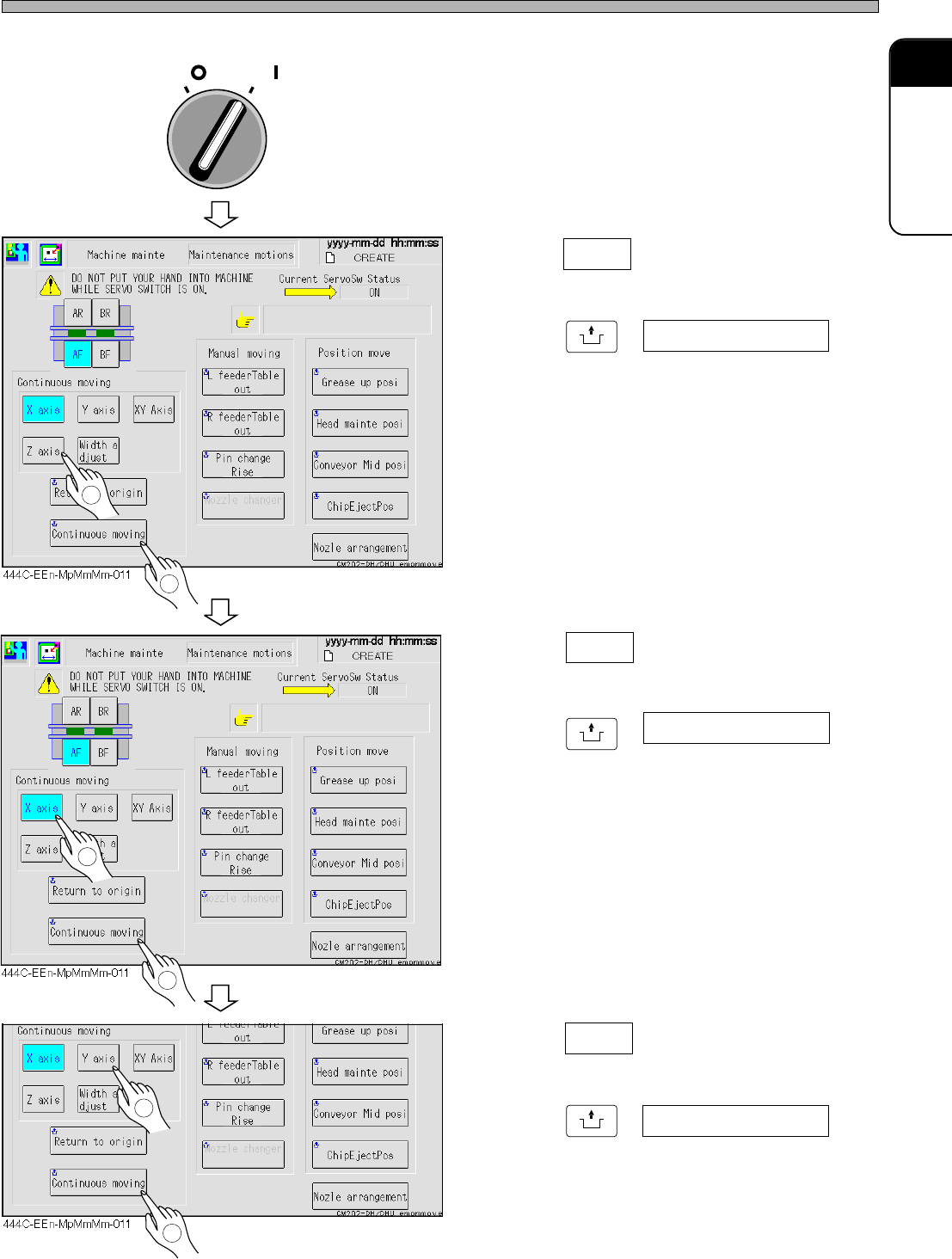

Check Every 140 Hours (Once a Week)
11. Close the safety cover.
12. Turn ON the servo switch.
13. Press Z axis .
14. Press
UNLOCK
+ Continuous moving .
• The Z-axis ball screw of the head repeats to go
back and forth at full stroke, and spreads the
grease over whole area of it.
15. Press X axis .
16. Press
UNLOCK
+ Continuous moving .
• The X-axis repeats to go back and forth at full
stroke, and spreads the grease over whole of
ball screw and linear bearing.
17. Press Y axis .
18. Press
UNLOCK
+ Continuous moving .
• The Y-axis repeats to go back and forth at full
stroke, and spreads the grease over whole of
ball screw and linear bearing.
OFF ( )
ON ( )
SERVO
2
1
