Page 1-57 REGULAR MAINTENANCE 1 Check Every 140 Hours (Once a Week) 444C-E-MMA01-A07-01 10. Lubricate the X-axis linear bearing and X-axis ball screw on the front and rear sides through the grease nipple. [Grease : SHELL…
Page 1-56
444C-E-MMA01-A07-02
Check Every 140 Hours (Once a Week)
To the next page

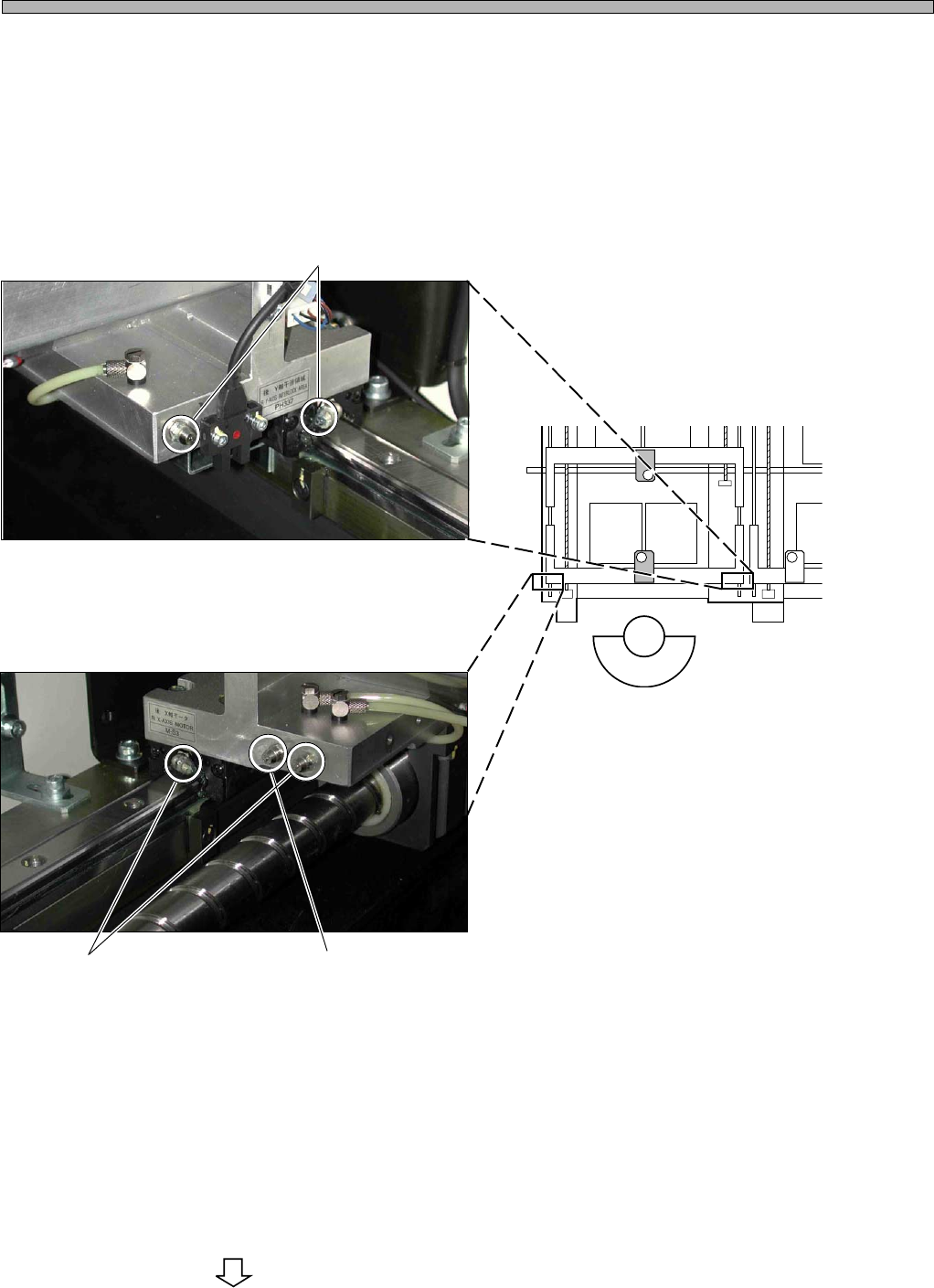

9. Lubricate the Y-axis linear bearing
and Y-axis ball screw on the front side
through the grease nipple.
[Grease : Stamina Grease RL2]
Grease nipple for linear bearing
444C-418E
4H4C-509P
4H4C-510P
Grease nipple for
linear bearing
Grease nipple for
ball screw
Page 1-57
REGULAR
MAINTENANCE
1
Check Every 140 Hours (Once a Week)
444C-E-MMA01-A07-01

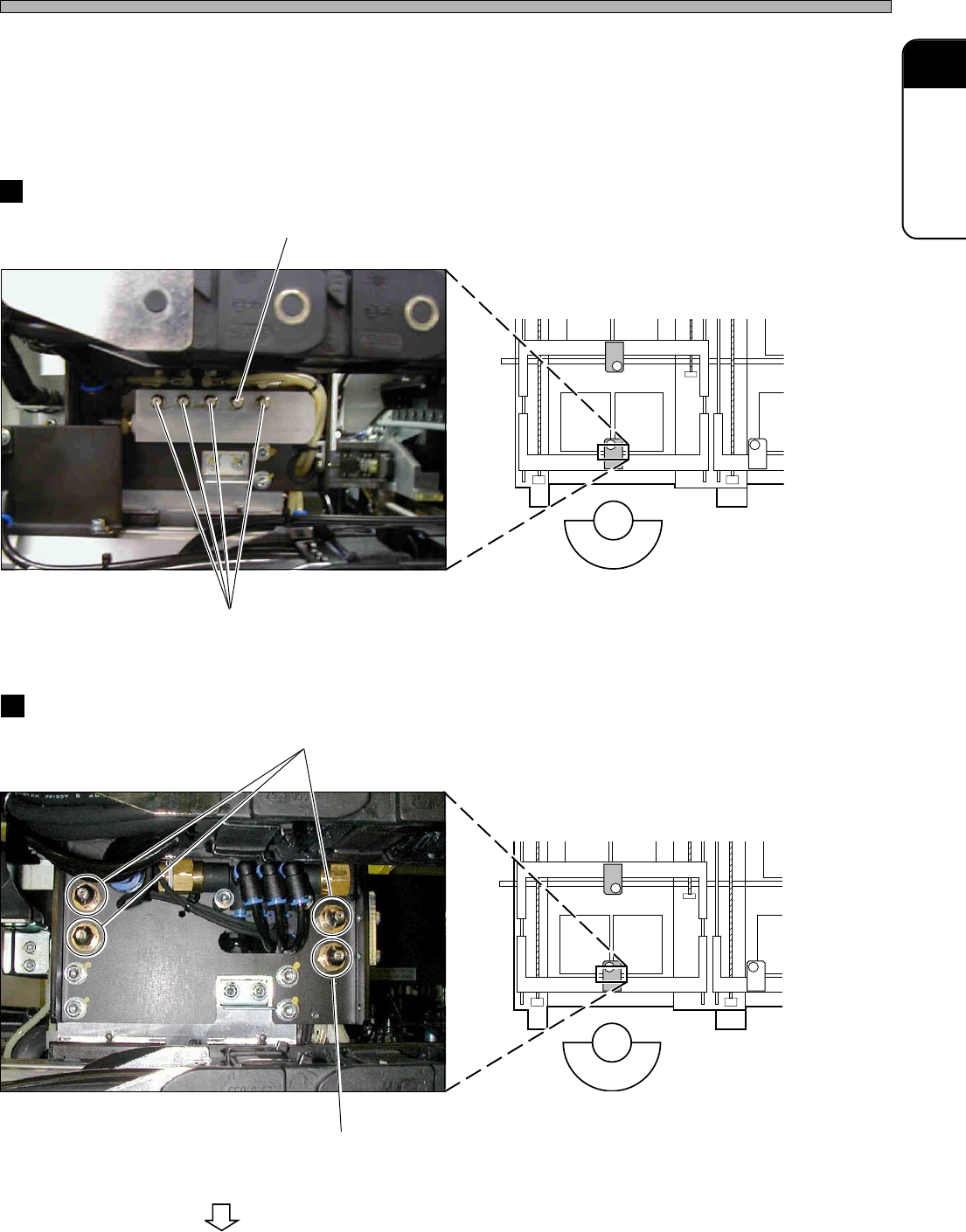

10. Lubricate the X-axis linear bearing
and X-axis ball screw on the front and
rear sides through the grease nipple.
[Grease : SHELL STAMINA GREASE RL2]
444C-418E
X-axis ball screw
Linear bearing
4H4C-511P
CM201-DH, CM202-DH/DHU/DK
444C-418E
X-axis ball screw
Linear bearing
444C-524P
CM201-DS, CM202-DS
To the next page
Page 1-58
444C-E-MMA01-A07-02
Check Every 140 Hours (Once a Week)

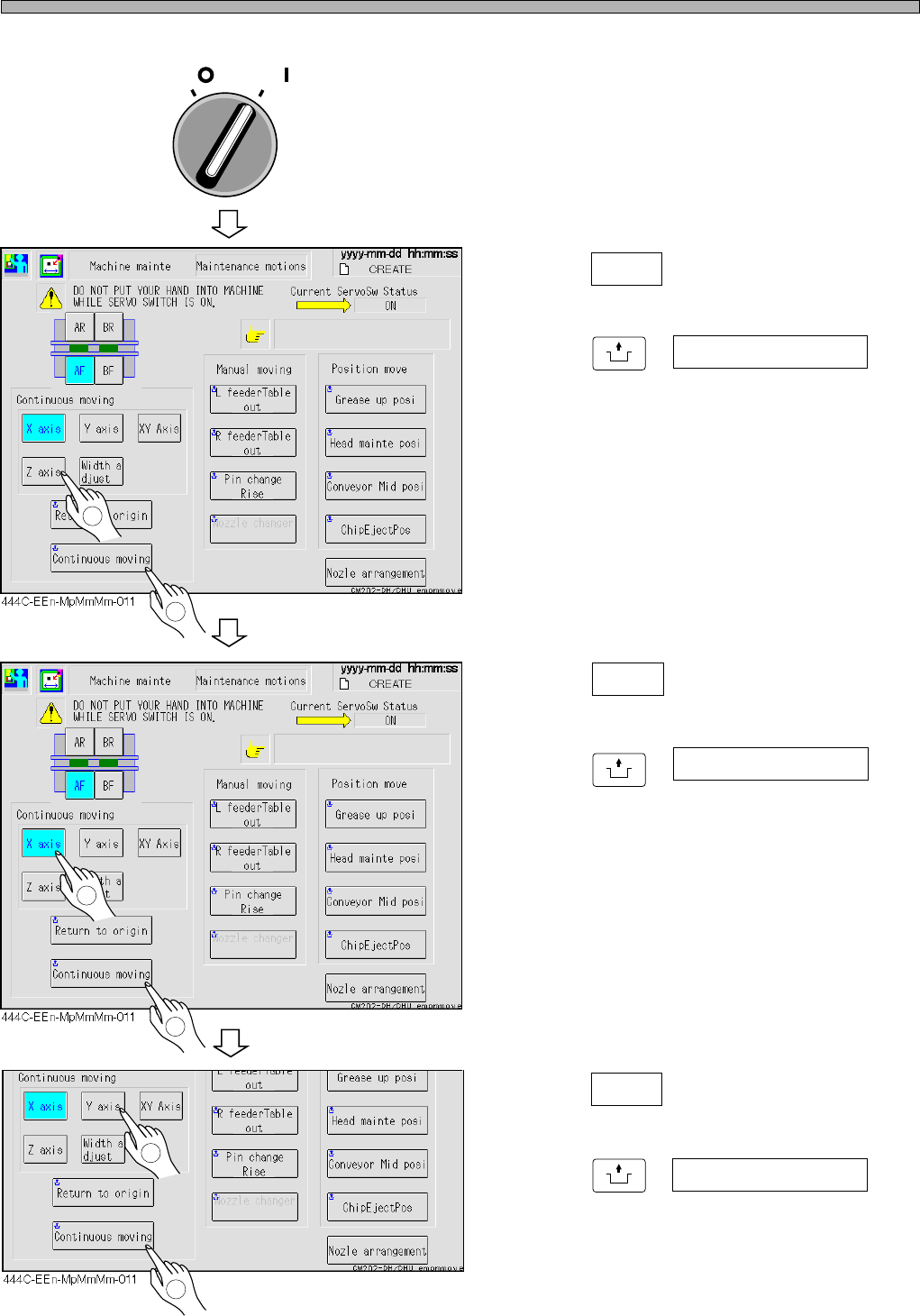

11. Close the safety cover.
12. Turn ON the servo switch.
13. Press Z axis .
14. Press
UNLOCK
+ Continuous moving .
• The Z-axis ball screw of the head repeats to go
back and forth at full stroke, and spreads the
grease over whole area of it.
15. Press X axis .
16. Press
UNLOCK
+ Continuous moving .
• The X-axis repeats to go back and forth at full
stroke, and spreads the grease over whole of
ball screw and linear bearing.
17. Press Y axis .
18. Press
UNLOCK
+ Continuous moving .
• The Y-axis repeats to go back and forth at full
stroke, and spreads the grease over whole of
ball screw and linear bearing.
OFF ( )
ON ( )
SERVO
2
1
2
1
2
1
