Page 1-63 REGULAR MAINTENANCE 1 Check Every 560 Hours (Once a Month) 10. Apply a bit of grease to the bearing and groove using a syringe. [Grease : BARRIERT A IEL/V] 11 . Push the nozzle holder upward. ∗ Carry out cleani…
Page 1-62
Check Every 560 Hours (Once a Month)

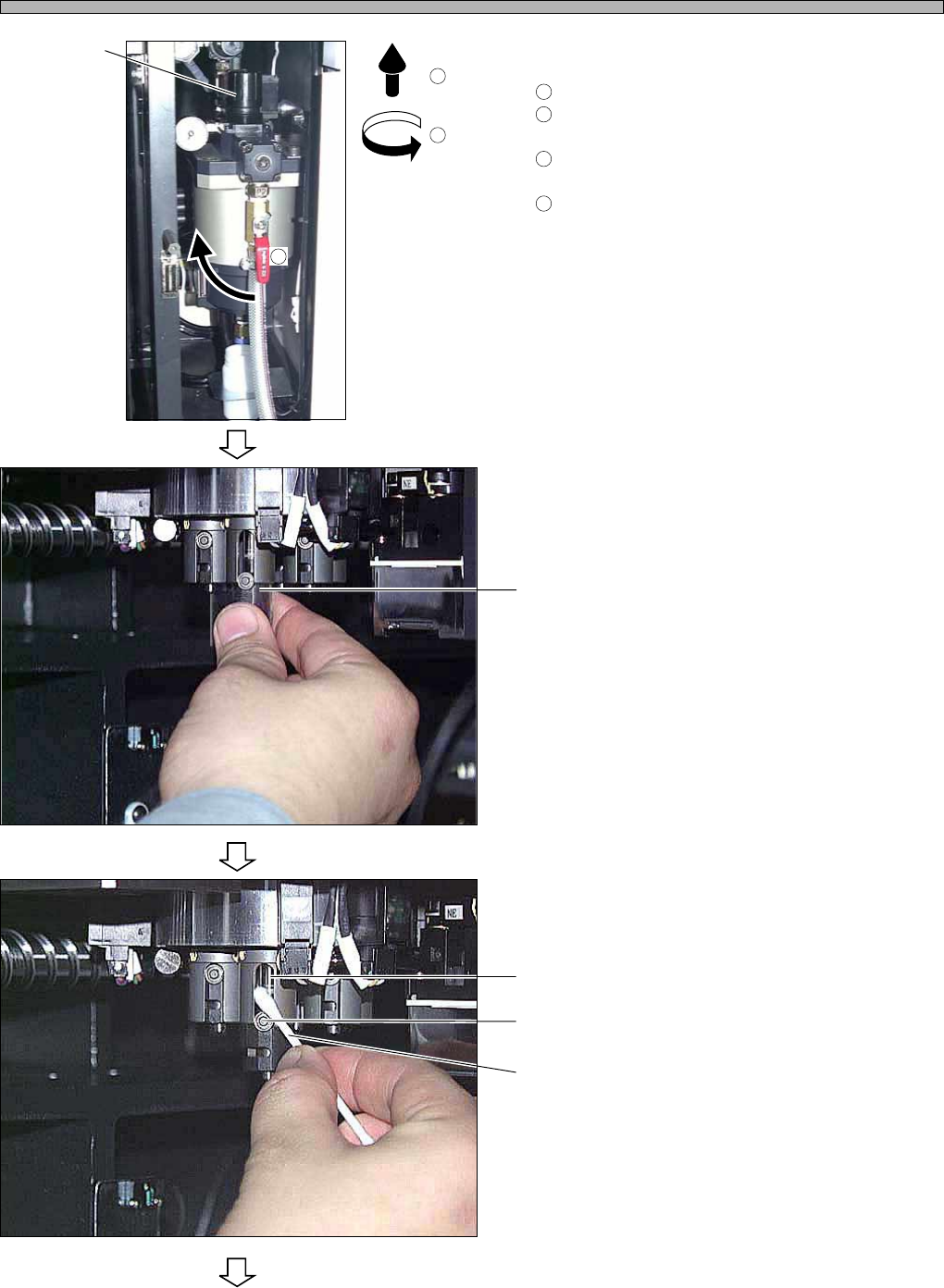

6. Discharge the air.
Close the main air valve.
Pull up the regulator knob, and turn it to the left
until it stops.
Make sure the exhaust sound disappears and
the gauge shows 0 MPa.
Lock the valve lever. A worker should carry the
key. (DU/DHU only)
7. Open the safety cover.
8. Lower the nozzle holder.
9. Clean the bearing and groove by
using a cotton bud.
To the next page
444C-E-MMA01-A08-03
Nozzle holder
Groove
Valve
Bearing
Cotton bud
444C-443P
444C-402P
444C-444P
1
2
3
4
1
2
3
Page 1-63
REGULAR
MAINTENANCE
1
Check Every 560 Hours (Once a Month)

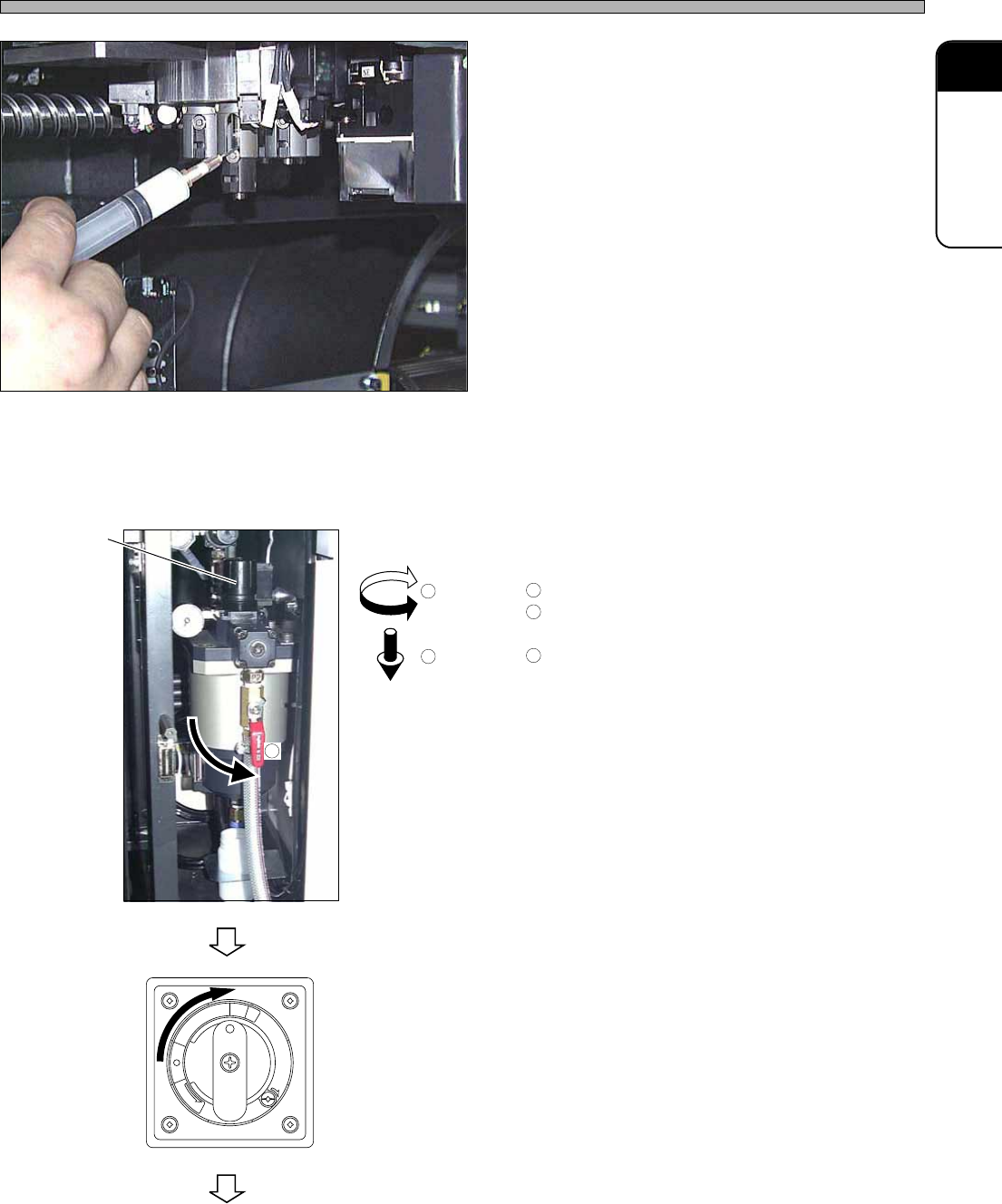

10. Apply a bit of grease to the bearing
and groove using a syringe.
[Grease : BARRIERTA IEL/V]
11. Push the nozzle holder upward.
∗ Carry out cleaning and lubricating in steps 8 to
11 for all nozzles.
2. Checking the vacuum pressure
Ensure that the vacuum pressure is within the specified value.
∗ Check it with the nozzle set to all heads.
1. Supply the air.
Open the lever.
Adjust the air pressure within the specified
value using the valve.
Lock the valve.
2. Turn ON the power.
To the next page
444C-E-MMA01-A08-01
444C-402P
444C-445P
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
1
2
3
2
3
1
Valve
Page 1-64
1
2
Vacuum pump
OFF
Air blow
OFF
444C-E-MMA01-A08-03
Check Every 560 Hours (Once a Month)

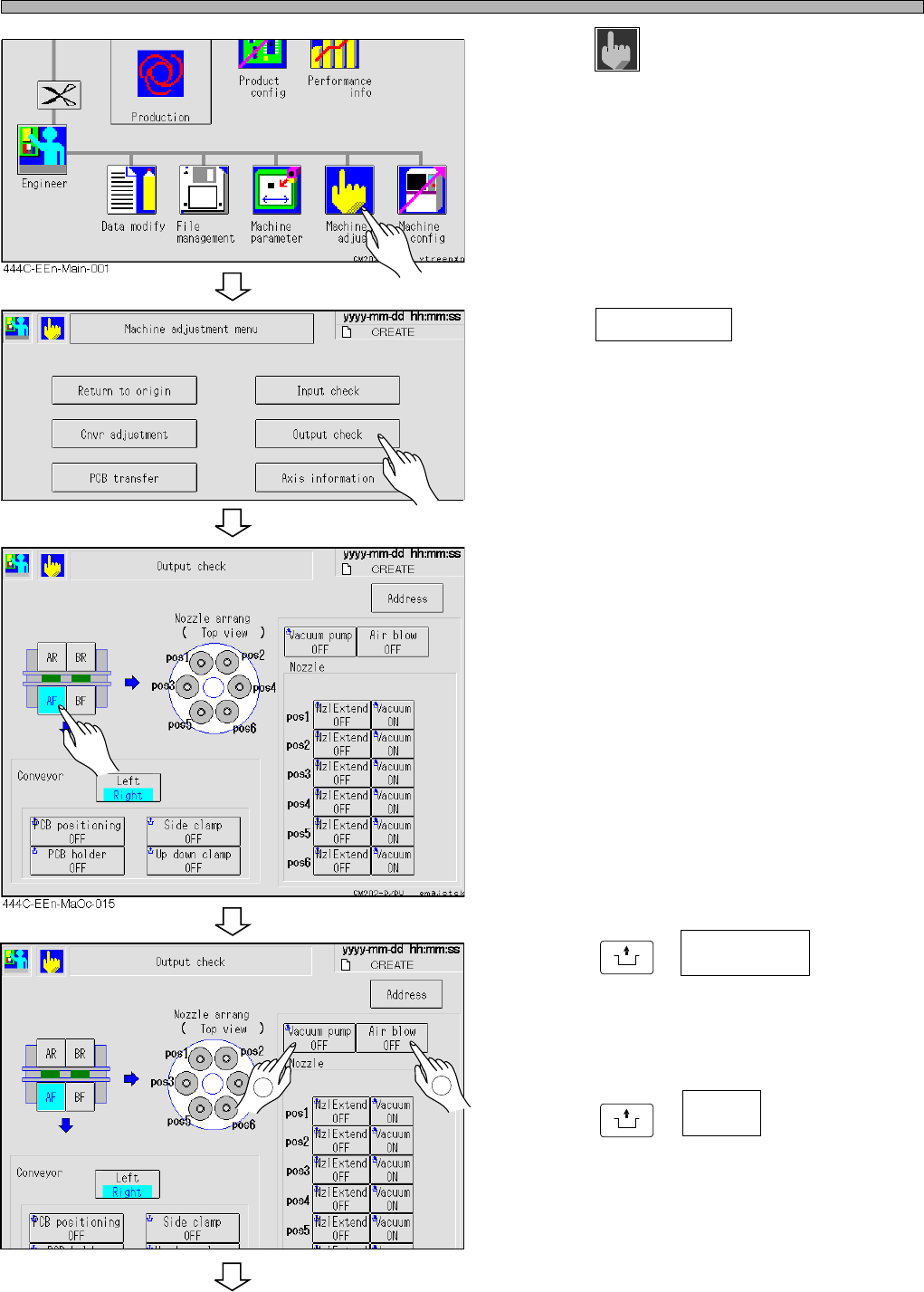

3. Press
Machine
adjust
in the “Main menu”
screen.
• The “Machine Adjustment” screen appears.
4. Press Output check .
• The “Output Check” screen appears.
5. Select the operation table (the one
with the transfer head of which the
vacuum pressure is measured.)
6. Press
UNLOCK
+ .
• The display turns to be ON, and the vacuum
pump works.
7. Press
UNLOCK
+ .
• The display turns to be ON, and the air flows
into the pass.
To the next page
444C-EEn-Ma-001
444C-EEn-MaOc-015
