Page 1-70 444C-E-MMA01-A09-04 Check Every 560 Hours (Once a Month) 7. Apply the grease to the fulcrum part of the movable blades. [Grease : SHELL ST AMINA GREASE RL2] ∗ Ensure that the blade is not broken. 8. Set the tap…
Page 1-69
REGULAR
MAINTENANCE
1
Check Every 560 Hours (Once a Month)

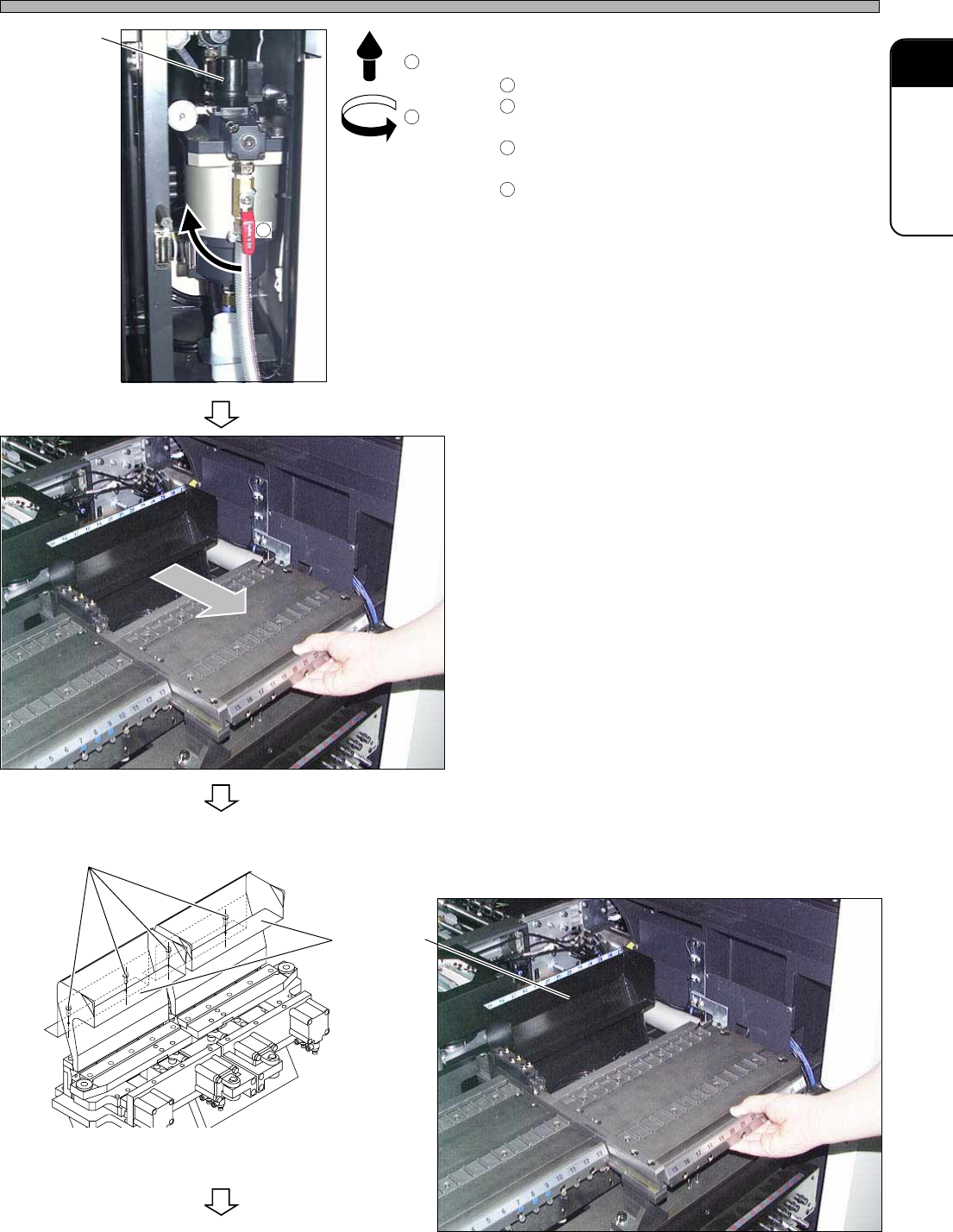

3. Discharge the air.
Close the main air valve.
Pull up the regulator knob, and turn it to the left
until it stops.
Make sure the exhaust sound disappears and
the gauge shows 0 MPa.
Lock the valve lever. A worker should carry the
key. (DU/DHU only)
4. Open the safety cover.
5. Draw the tape feeder table.
6. Remove the tape chute.
∗ Loosen the bolt set to the inner side.
To the next page
444C-E-MMA01-A09-03
Bolt
444C-464P
444C-465P
Tape chute
444C-425E
Valve
444C-402P
1
2
3
4
1
2
3
Page 1-70
444C-E-MMA01-A09-04
Check Every 560 Hours (Once a Month)
7. Apply the grease to the fulcrum part
of the movable blades.
[Grease : SHELL STAMINA GREASE RL2]
∗ Ensure that the blade is not broken.
8. Set the tape chute.
∗ After that, carry out these steps in the reverse
order to prepare for supplying the power.
Procedure of CM201-DH and CM202-DH/DHU/DK
1. Turn OFF the power.
2. Open the safety cover.
3. Lubricate through the grease nipple
for the cutting unit.
[Grease : SHELL STAMINA GREASE RL2]
444C-467P
Fixed blade
Movable blade
444C-426E
Fulcrum part
Fulcrum part
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
444C-505P
444C-504P
Grease nipple
Page 1-71
REGULAR
MAINTENANCE
1
Check Every 560 Hours (Once a Month)
444C-E-MMA01-A09-08
Procedure of CM201-DS and CM202-DS
1. Turn OFF the power.
2. Remove the cutting cover.
3. Lubricate through the grease nipples
for the cutting unit.
[Grease : SHELL STAMINA GREASE RL2]
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
E24C-402P
E24C-403P E24C-405P
E24C-404P
E24C-406P
Grease nipples
Cutting cover
Left (Two locations) Right (One location)
