Page 1-71 REGULAR MAINTENANCE 1 Check Every 560 Hours (Once a Month) 444C-E-MMA01-A09-08 Procedure of CM201-DS and CM202-DS 1. T urn OFF the power . 2. Remove the cutting cover . 3. Lubricate through the grease nipples f…

100%1 / 158
Page 1-70
444C-E-MMA01-A09-04
Check Every 560 Hours (Once a Month)
7. Apply the grease to the fulcrum part
of the movable blades.
[Grease : SHELL STAMINA GREASE RL2]
∗ Ensure that the blade is not broken.
8. Set the tape chute.
∗ After that, carry out these steps in the reverse
order to prepare for supplying the power.

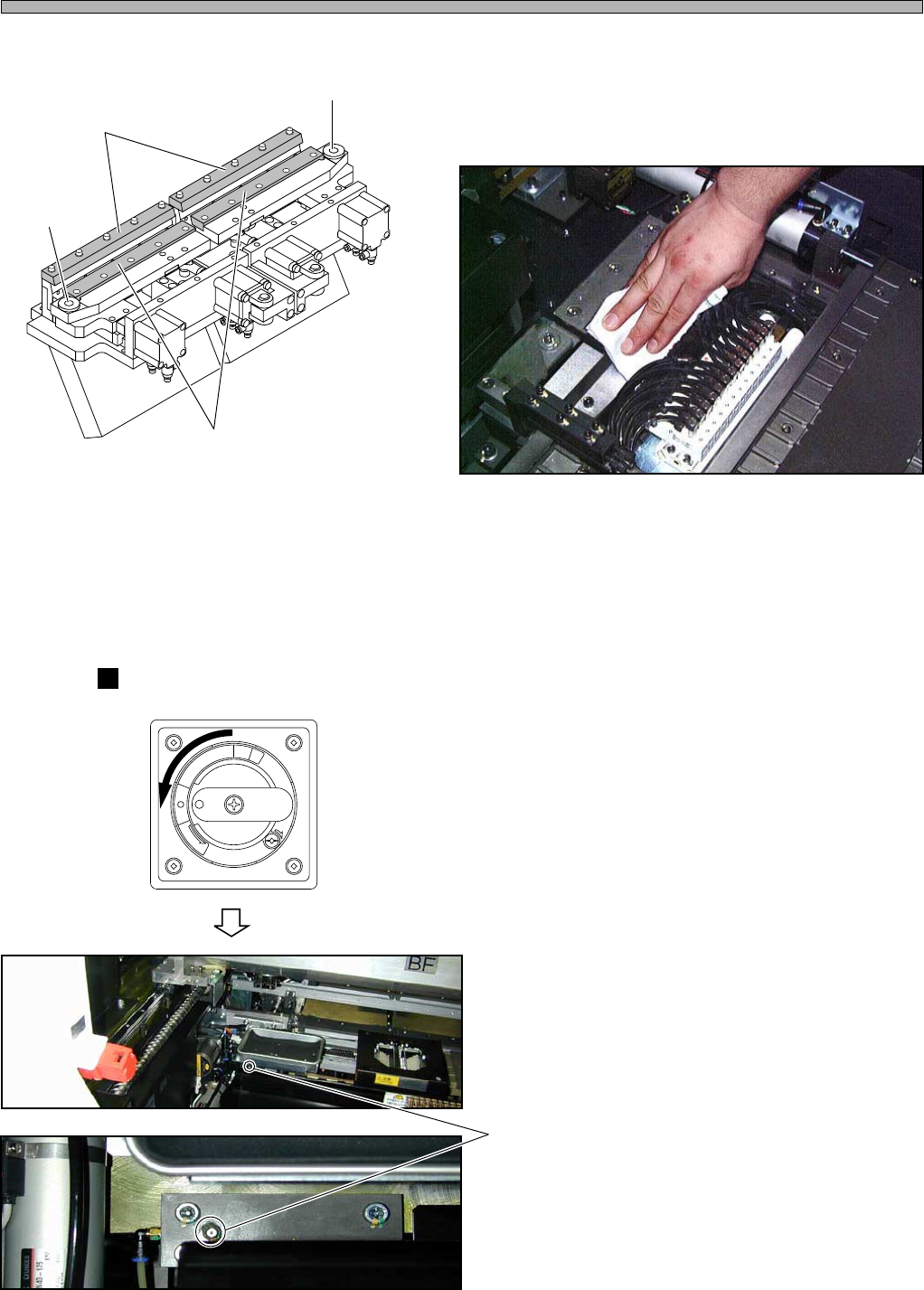

Procedure of CM201-DH and CM202-DH/DHU/DK
1. Turn OFF the power.
2. Open the safety cover.
3. Lubricate through the grease nipple
for the cutting unit.
[Grease : SHELL STAMINA GREASE RL2]
444C-467P
Fixed blade
Movable blade
444C-426E
Fulcrum part
Fulcrum part
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
444C-505P
444C-504P
Grease nipple
Page 1-71
REGULAR
MAINTENANCE
1
Check Every 560 Hours (Once a Month)
444C-E-MMA01-A09-08
Procedure of CM201-DS and CM202-DS
1. Turn OFF the power.
2. Remove the cutting cover.
3. Lubricate through the grease nipples
for the cutting unit.
[Grease : SHELL STAMINA GREASE RL2]
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
E24C-402P
E24C-403P E24C-405P
E24C-404P
E24C-406P
Grease nipples
Cutting cover
Left (Two locations) Right (One location)
Page 1-72
Check Every 560 Hours (Once a Month)
1-5-3 How to Check the Setting of the Blow Pressure
1. Press
Machine
adjust
.
• The “Machine adjustment menu” screen
appears.
2. Press Output check .
• The “Output check” screen appears.
3. Select the operation position (the
table with the transfer head of which
the vacuum pressure is to be mea-
sured).
To the next page
444C-E-MMA01-A09-07
Tools Required time 5 minutes
444C-EEn-MaOc-015
