Page 1-73 REGULAR MAINTENANCE 1 444C-E-MMA01-A09-05 Check Every 560 Hours (Once a Month) 4. Press UNLOCK + . • The display turns to be ON, and the air flows into the pass. ∗ Ensure that the air is jetting from the tip of…
Page 1-72
Check Every 560 Hours (Once a Month)
1-5-3 How to Check the Setting of the Blow Pressure

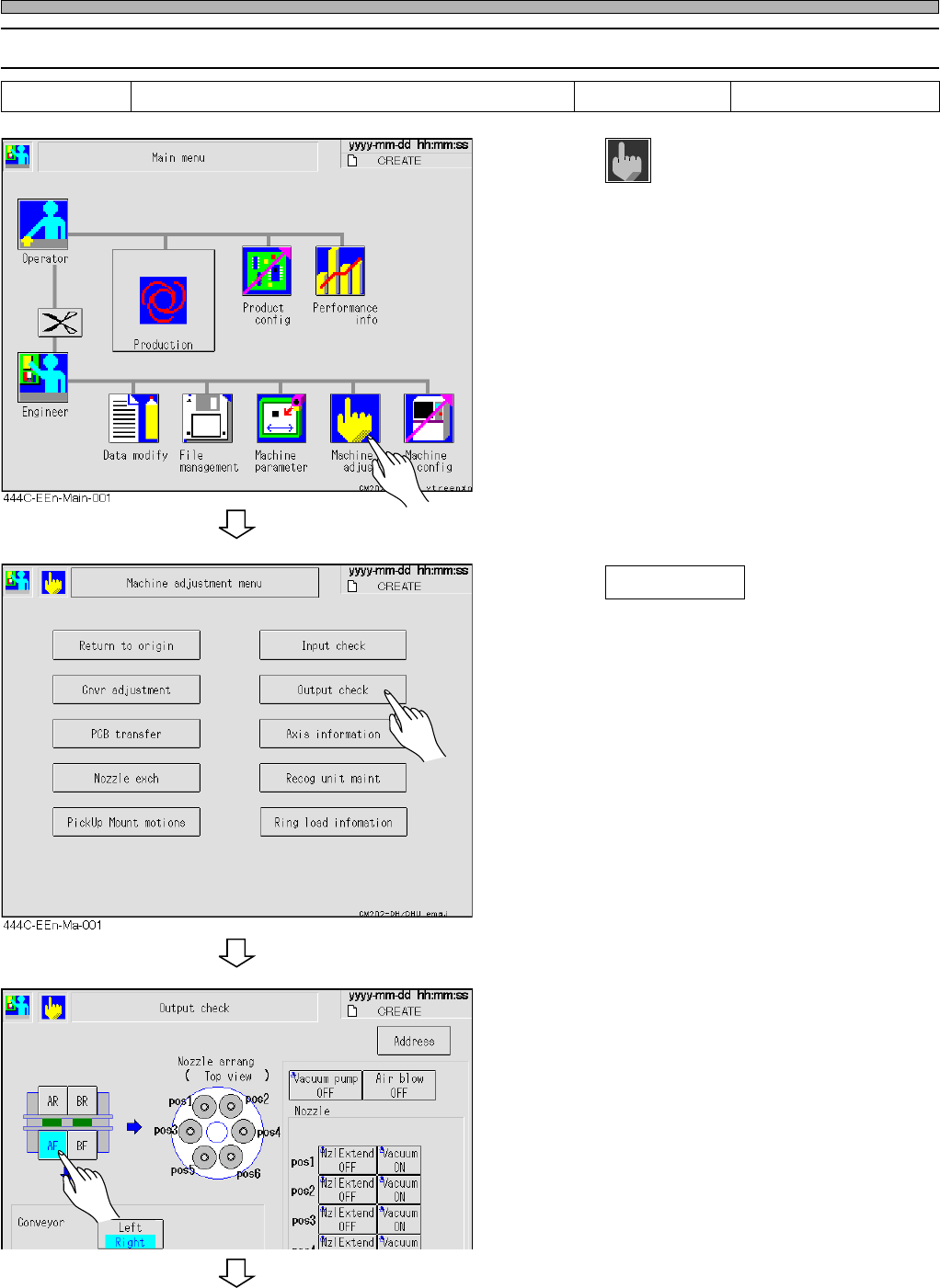

1. Press
Machine
adjust
.
• The “Machine adjustment menu” screen
appears.
2. Press Output check .
• The “Output check” screen appears.
3. Select the operation position (the
table with the transfer head of which
the vacuum pressure is to be mea-
sured).
To the next page
444C-E-MMA01-A09-07
Tools Required time 5 minutes
444C-EEn-MaOc-015
Page 1-73
REGULAR
MAINTENANCE
1
444C-E-MMA01-A09-05
Check Every 560 Hours (Once a Month)

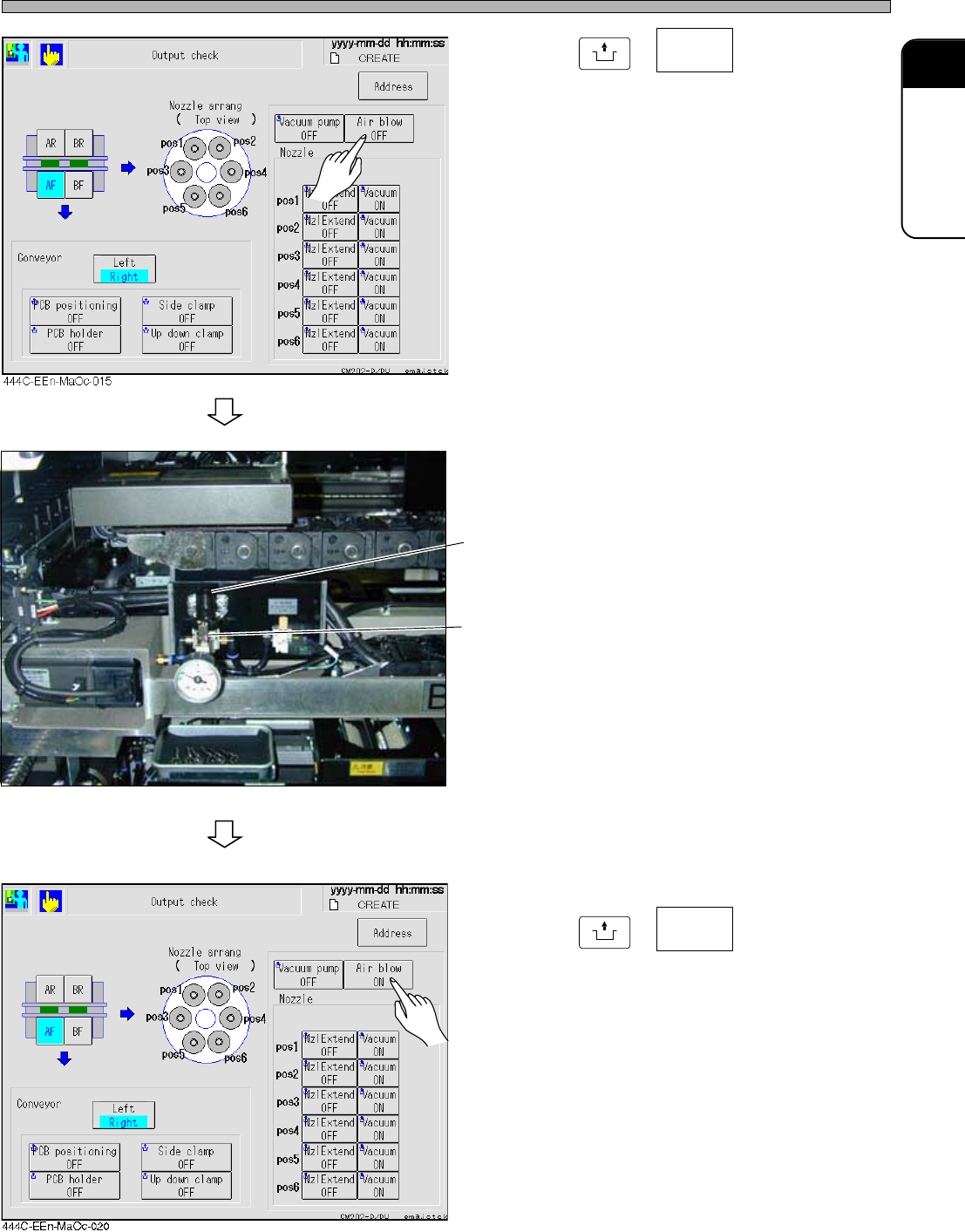

4. Press
UNLOCK
+ .
• The display turns to be ON, and the air flows
into the pass.
∗ Ensure that the air is jetting from the tip of the
nozzle.
5. Release the lock of the A valve and
adjust the indicating pointer of the B
regulator graduation to within the
indicating range.
• The adjustment value is 0.04 MPa ± 0.005
MPa.
∗ Adjust it with the air jetting.
6. Press
UNLOCK
+ .
• The display changes to OFF.
Air blow
OFF
Air blow
ON
444C-491P
B
A
Page 1-74
1-6 Check Every 3000 Hours (Once Six Months)
1-6-1 Exchanging the Board Transfer Belt and Roller
The board transfer belt and board transfer roller on the board conveyor must be exchanged regu-
larly.
∗ For DU/DHU specifications, it is necessary to remove the feeder base cover for the maintenance.
“1-2-3 Setting and Removing the Feeder Base Cover (Only for DU/DHU Specifications)”
1. Removing the board transfer belt
∗ You may store the removed belt as an spare. If you do not store it, cut it off with a nipper.
1. Turn OFF the power.
2. Remove the belt by pulling it out.
444C-E-MMA01-A09-04
Tools Allen wrench and push-pull gauge Required time 15 minutes
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
