Page 1-82 Check Every 6000 Hours (Once a Y ear) 1-7-2 Replacing the V acuum Pump The fall of the vacuum pressure will cause the miss of the chip pick-up. For the stability of the vacuum pressure, the replacement of the v…

100%1 / 158
Page 1-81
REGULAR
MAINTENANCE
1
444C-E-MMA01-A09-04
Check Every 6000 Hours (Once a Year)
27. Return the chute to the original posi-
tion.
• Adjust the position so that the positioning bolt
will fit to the 2 positioning holes of the chute
(See the picture).
28. Set the 3 fixing bolt, tighten it.
29. Open the air valve.
30. Operate the regulator, set to the regu-
lated pressure.
31. Turn ON the power. And turn OFF/ON
the cutter on the screen of the output
test, and check the abnormal noise.
4H4C-518P
Page 1-82
Check Every 6000 Hours (Once a Year)
1-7-2 Replacing the Vacuum Pump
The fall of the vacuum pressure will cause the miss of the chip pick-up. For the stability of the
vacuum pressure, the replacement of the vacuum pump is required regularly.
1. Turn OFF the power.
2. Open the cover at the rear side of the
machine (AR • BR).
∗ Remove the setting bolt by using the philips
driver.
3. Remove the tubes (black X 2) con-
nected to the vacuum pump.
4. Remove the 2 bolts fixing the vacuum
pump.
To the next page
444C-E-MMA01-A09-05
Tools Required time 60 minutes
Philips driver, allen wrench
R
E
L
E
A
S
E
T
R
I
P
O
F
F
O
N
R
E
S
E
T
444C-492P
444C-493P
cover
Fixing boltsTube
Page 1-83
REGULAR
MAINTENANCE
1
Check Every 6000 Hours (Once a Year)
Notice

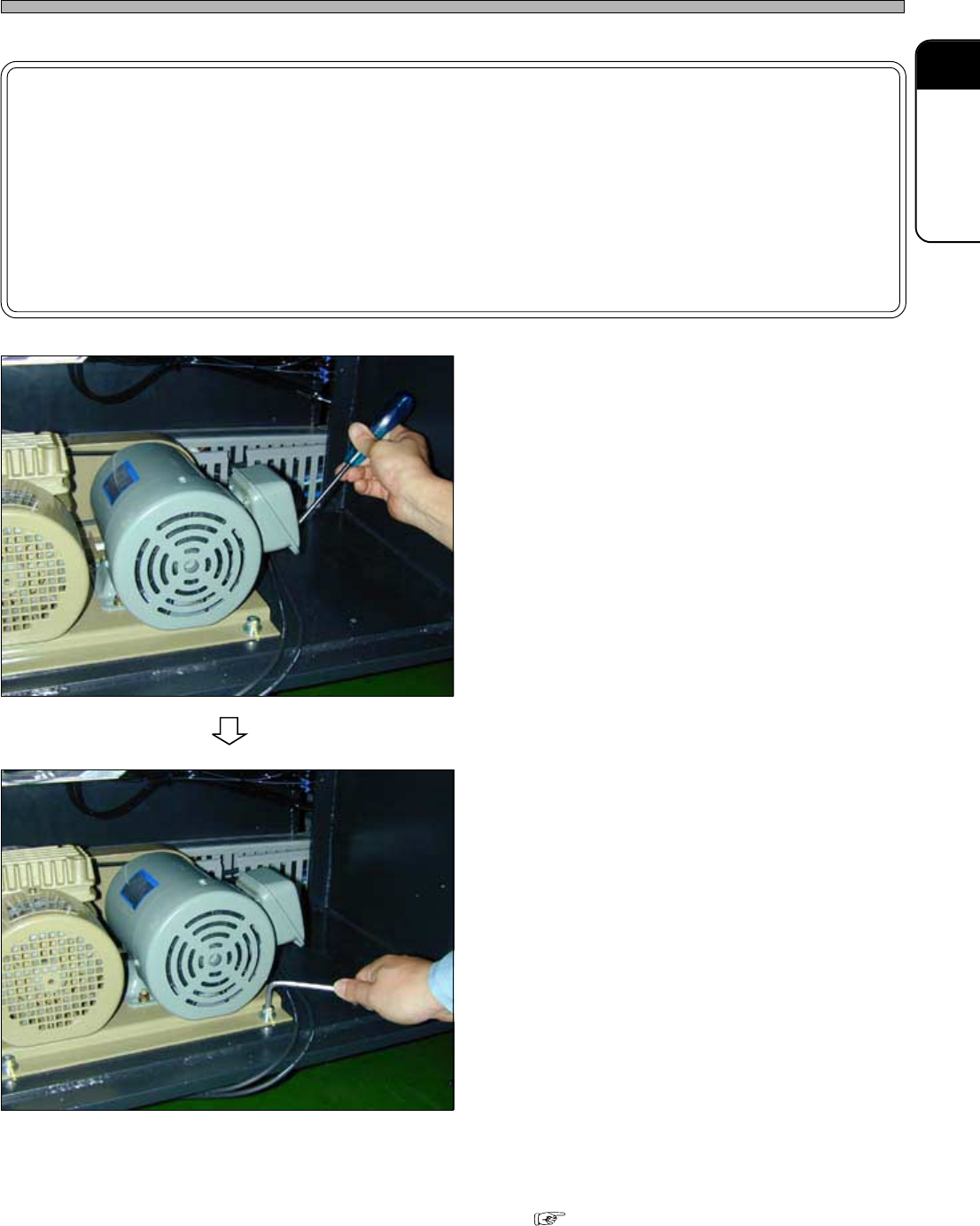

Before opening the distributor, ensure that the power of the machine is certainly
OFF.
Remove the 3 wiring connected to the distribution part.
Write down the wiring order not to mistake. The mistaken order will cause the
reverse of the vacuum pump.
5. Open the distributor.
6. Remove the vacuum pump, and re-
place it with a new one.
7. Connect the tube.
8. Connect the wiring as written down at
step 5.
9. Fix the vacuum pump by the 2 bolts.
10. Set the cover.
Checking the vacuum pressure
“1-5-1 Cleaning the Lubricating the
Transfer Head 2. Checking the vacuum
pressure”
444C-E-MMA01-A09-04
444C-494P
444C-495P
