Outline of Maintenance

3. Press Yes .

• The update is started.

• The message “Update complete“ is displayed

when the update finishes successfully.

∗ The message “Restart the system“ is displayed

when the installation is complete successfully.

Turn on the power of the machine again.

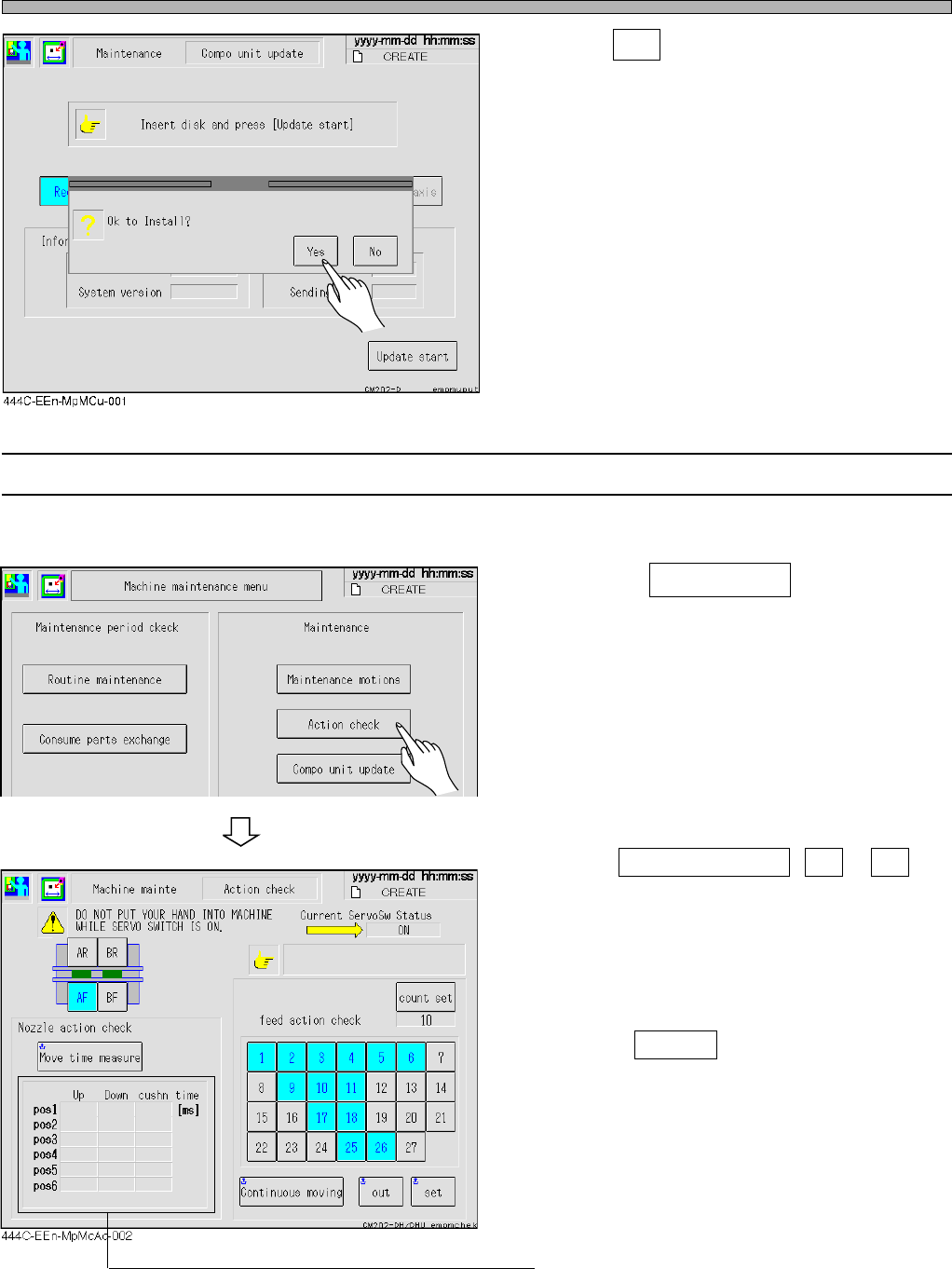

1-1-7 Action Check

The feeder sending can be checked.

1. Press the Action check on the “Ma-

chine maintenance menu” screen.

∗ Choose the feeder address that is a target for

movement.

The target for movement is a light blue and

highlighted.

• Select Continuous moving , Out or Set

and check the feeder sending of the moving

target address.

• The continuous moving repeats out and set

reserved count.

• It is possible to set from 1 to 100 times by

pressing count set .

∗ The moving time of the nozzle cylinder is

measured.

444C-E-MMA01-A01-04

444C-EEn-MpMm-002

Page 1-15

REGULAR

MAINTENANCE

1-2 Lubricating

This section describes how to set the cartridge of the grease gun included with the machine as an

option, how to supply grease, and the precautions for a lubricating.

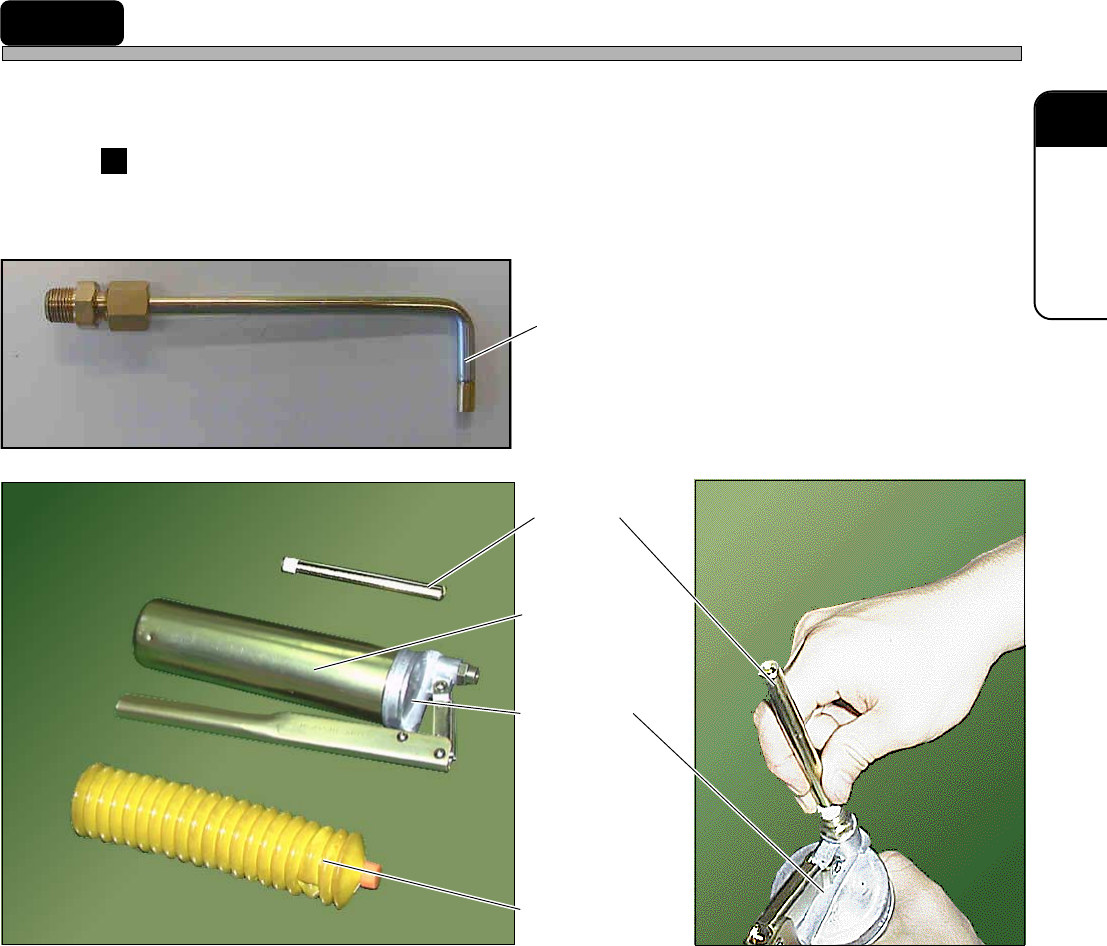

The structure of a grease gun

The grease gun consists of following 4 parts.

Make sure of firm setting of the nozzle to the main body, before use.

Cartridge (200 g)

Nozzle

Oil cylinder

Grease gun

433C-036P 433C-037P

444C-E-MMA01-A02-05

444C-510P

Grease nozzle type

(For CM201-DS and CM202-DS, this is not required.)

Page 1-16

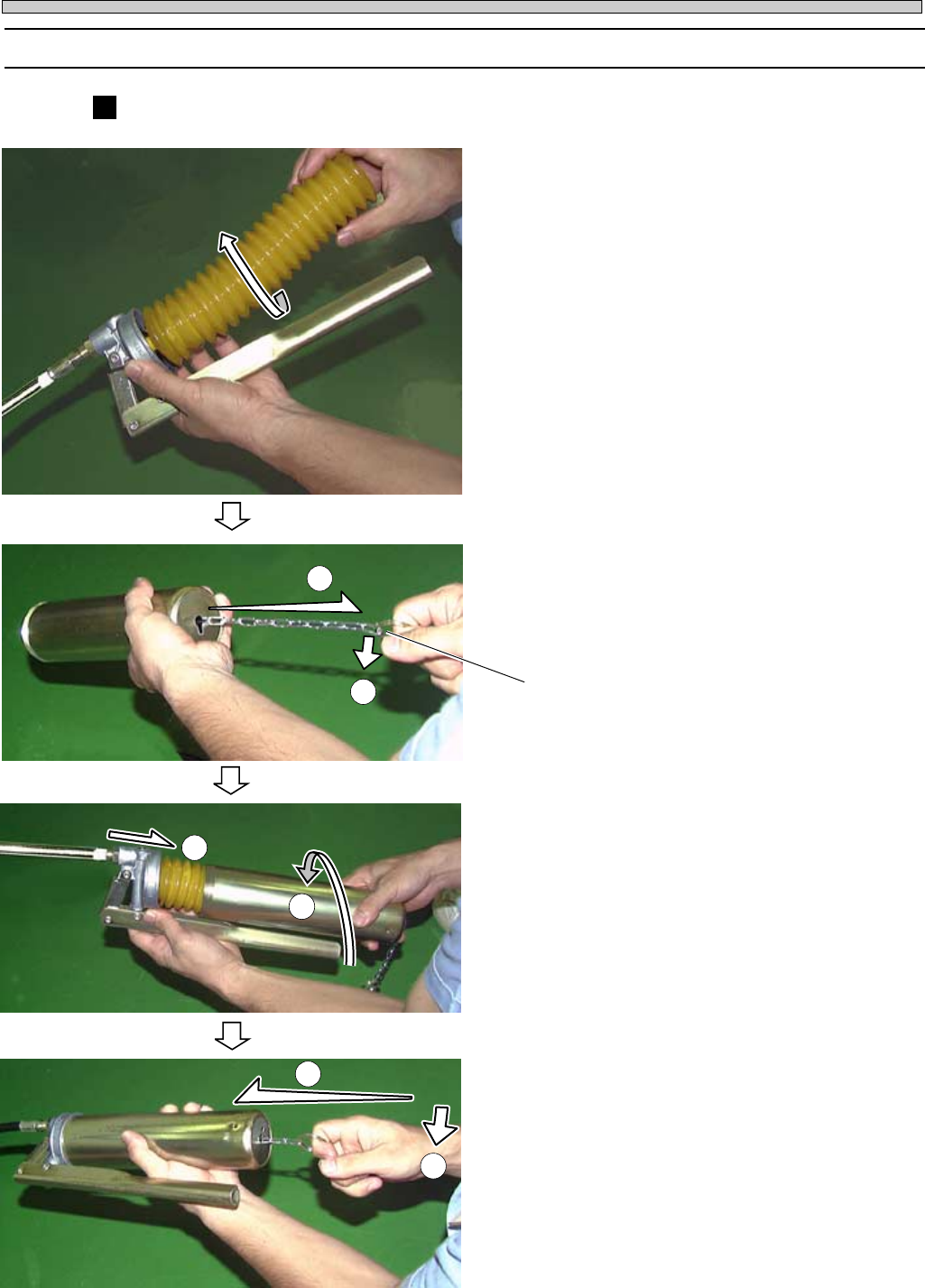

1-2-1 Loading and Using the Grease Gun

Loading the grease gun

1. Remove the cap from the cartridge,

and screw it into the grease gun.

∗ The looseness may cause leak of the grease.

2. Pull out the chain and lock it to the

groove of the oil cylinder.

3. Put the cartridge in the oil cylinder

and fit the cylinder to the main body.

4. Unlock the chain from the groove of

the oil cylinder, and put it back.

∗ Pump the lever several times, and ensure that

grease is coming from the nozzle tip.

Lubricating

433C-038P

433C-039P

433C-040P

433C-041P

444C-E-MMA01-A02-02

Chain
