Page 1-34

Check Every 140 Hours (Once a Week)

4. Clean dirt on the outer circumference

of the nozzle holder with a cloth.

5. Clean dirt on the spring for nozzle

cushion with a cloth.

6. Soak a swab in alcohol, insert it into

the nozzle holder, and turn it in

θθ

direction two or three times.

∗ The nozzle holder should be set aside until the

internal alcohol dries up.

7. Wipe up the contamination of the

outer regions of the nozzle-holder

shaft, with a cloth soaked in alcohol.

∗ The nozzle-holder shaft should be set aside

until the alcohol in the outer regions dries up.

Checking the nozzle tip

You need to check for wear of and damage to the nozzle tip for stable pickup. When the

nozzle tip looks like following drawings, it is necessary to exchange the nozzle.

In cleaning the nozzle tip, also check for it.

444C-E-MMA01-A05-06

444C-471P

444C-426P

Wear of the nozzle tip

Damage to the nozzle tip

444C-403E 444C-404E

444C-521P

E24C-407P

Page 1-35

REGULAR

MAINTENANCE

444C-E-MMA01-A05-05

444C-410P

Air ejector

Nozzle taper face

444C-413P

444C-411P

444C-412P

Nozzle tip

Check Every 140 Hours (Once a Week)

b. Cleaning the nozzle

1. Remove dust in the air pass of the

nozzle with the air ejector.

∗ Blow the air to the nozzle tip.

At this time, be careful not to touch the nozzle

tip with an air ejector. It may damage the

nozzle tip.

2. Clean the nozzle taper face with a

cloth.

∗ Be careful not to leave the fiber on it.

3. Clean the nozzle tip (nozzle) with a

cloth.

4. Clean the nozzle reflector with a cloth.

∗ Do not use any solvent because it may cause

discoloration, deformation and peeling of the

glue of the nozzle reflector.

∗ The nozzle is not allowed to accept an ultra-

sonic cleaning. If it accepts the ultrasonic

cleaning, the nozzle reflector will corrode to

cause a chip recognition error.

Nozzle

reflector

Page 1-36

Check Every 140 Hours (Once a Week)

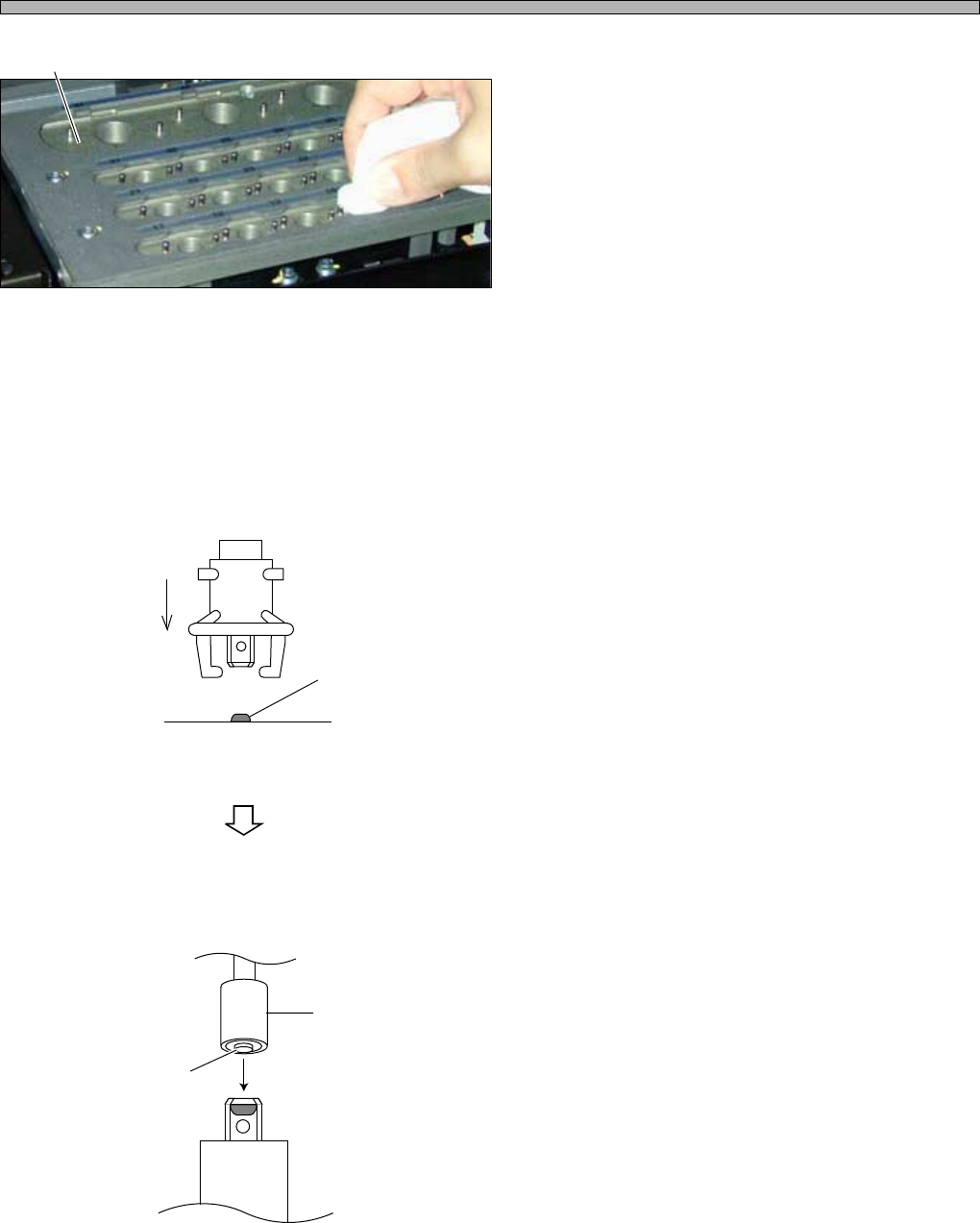

∗ When the nozzle changer (option) is installed, clean it.

Clean the top face of the nozzle

changer with a cloth which is soaked

with absolute alcohol.

∗ Be careful not to contaminate the contact faces

of it and the nozzle reflector.

∗ Check for the foreign body caught in the gap in

the shutter.

5. Setting (replacing) the vacuum filter

1. Put the filter on the firm face of the

table, etc., fit it pressing the holder.

2. Push the filter into the holder by the

convex part at the bottom of the pull-

ing jig.

∗ Ensure that the filter fits in the holder by

pressing it lightly by the convex part.

Shutter

444C-E-MMA01-A05-03

444C-458E

Filter

(Round side faces upward.)

Pulling jig

Convex part

Holder

444C-459E

444C-489P
