User manual SIPLACE D4i 2 Operational safety From software version SR.605.03 SP2 10/2012 EN edition 2.2 Warning labels 45 2.2.5 W arning label on the axis unit 2 Pos. W207 in Fig. 2.2 - 9 , item no. 03009346-01 (numbe r …
2 Operational safety User manual SIPLACE D4i
2.2 Warning labels From software version SR.605.03 SP2 10/2012 EN edition
44
2.2.4.1 Warning label W on the cover over the main power supply for the servo
amplifier

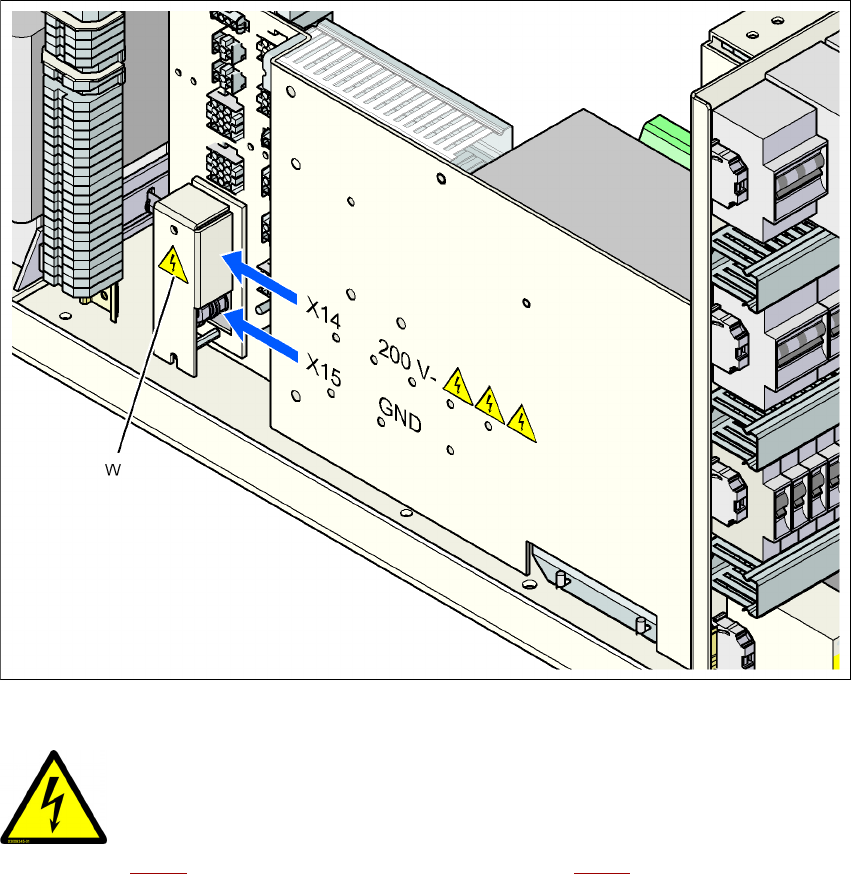

Fig. 2.2 - 8 Warning label W on the cover over the main power supply for the servo amplifier
2
Pos. W in Fig. 2.2 - 8 (number per power supply unit: 4) see Fig. 2.2 - 7 too
User manual SIPLACE D4i 2 Operational safety
From software version SR.605.03 SP2 10/2012 EN edition 2.2 Warning labels
45
2.2.5 Warning label on the axis unit
2
Pos. W207 in Fig. 2.2 - 9, item no. 03009346-01 (number per machine: 2)
2
2
Fig. 2.2 - 9 Warning label W207 on the axis unit Macrolon panel
Pos. W207, item no. 03009346-01
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
2 Operational safety User manual SIPLACE D4i
2.2 Warning labels From software version SR.605.03 SP2 10/2012 EN edition
46
2.2.6 Warning labels on the PCB conveyor
2
Pos. W208 "Laser class 2" on the PCB conveyor in Fig. 2.2 - 10, item no. 03009347-01
(number per machine: 4 for the dual conveyor, 2 for the single conveyor)
2
2
2

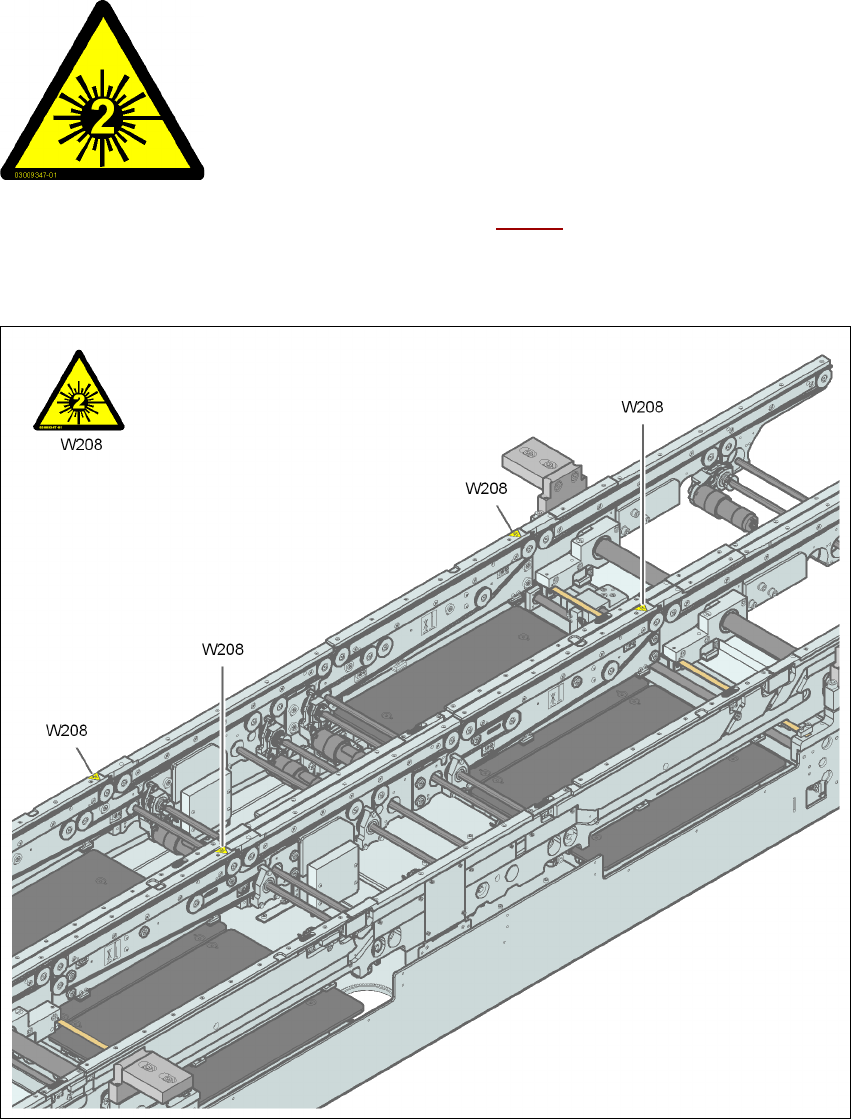

Fig. 2.2 - 10 Warning label W208 "Laser class 2" on the PCB conveyor
Pos. W208, item no. 03009347-01
2
2
LASER RADIATION!
Do not look into beam
Laser class 2
