3 Technical data for the machine User manual SIPLACE D4i 3.7 PCB conveyor system From software version SR.605.03 SP2 10/2012 EN edition 112 3.7.6 Configuration options 3.7.6.1 PCB single conveyor Item no. 001 19940-xx Si…
User manual SIPLACE D4i 3 Technical data for the machine
From software version SR.605.03 SP2 10/2012 EN edition 3.7 PCB conveyor system
111
3.7.5.2 Technical data of the flexible PCB dual conveyor
3
Fixed conveyor edge Right or left
PCB format
Standard (length x width)
Wide board option
Long board option
Long board option and
Wide board option
Dual conveyor in Single conveyor mode
Standard (length x width)
Long board option
50 x 50 mm² up to 368 x 216 mm²
50 x 50 mm² up to 368 x 242 mm²
50 x 120 mm² up to 610 x 216 mm²
50 x 120 mm² up to 610 x 242 mm²
50 x 50 mm² up to 368 x 380 mm²
50 x 120 mm² up to 610 x 380 mm²
PCB thickness
Standard 0.3 mm to 4.5 mm ± 0.2 mm
(thicker PCBs available on request)
PCB warpage see Section 3.7.7
, page 113
PCB weight max. 3 kg
Clearance on PCB underside
Standard
Option
25 mm ± 0.2 mm
max. 40 mm ± 0.2 mm
PCB conveyor height 830mm ± 15mm (standard)
900mm ± 15mm (optional)
930mm ± 15mm (optional)
950mm ± 15mm (SMEMA: optional)
Type of interface Siemens / SMEMA
a
a) Option
Component-free PCB handling edge 3 mm
PCB changeover time 2.5 s
PCB positioning accuracy ± 0.5 mm
Conveyor mode synchronous or asynchronous (selected via the soft-
ware)
Components on each conveyor same or different
PCB width on each conveyor same or different
Bad fiducial detection synchronous: possible (no global ink spot)
asynchronous: possible
Automatic width adjustment synchronous: possible, asynchronous: possible
3 Technical data for the machine User manual SIPLACE D4i
3.7 PCB conveyor system From software version SR.605.03 SP2 10/2012 EN edition
112
3.7.6 Configuration options
3.7.6.1 PCB single conveyor
Item no. 00119940-xx Single conveyor SIPLACE D4i
Item no. 00119626-xx Fixed conveyor rail right, D4i/D2i/D1i
Item no. 00119628-xx Fixed conveyor rail left, D4i/D2i/D1i
Item no. 00119631-xx Wide board option 242/508 mm, D4i/D2i/D1i
Item no. 00119086-xx Conveyor height 900 mm, D4i
Item no. 00119083-xx Conveyor height 930 mm, D4i
Item no. 00119082-xx Conveyor height 950 mm, D4i
Item no. 00119092-xx SMEMA adapter box, input and output (single + dual), D4i/D2i/D1i
3.7.6.2 Flexible PCB dual conveyor
Item no. 00119942-xx Dual conveyor SIPLACE D4i
Item no. 00119626-xx Fixed conveyor rail right, D4i/D2i/D1i
Item no. 00119628-xx Fixed conveyor rail left, D4i/D2i/D1i
Item no. 00119631-xx Wide board option 242/508 mm, D4i/D2i/D1i
Item no. 00119086-xx Conveyor height 900 mm, D4i
Item no. 00119083-xx Conveyor height 930 mm, D4i
Item no. 00119082-xx Conveyor height 950 mm, D4i
Item no. 00119092-xx SMEMA adapter box, input and output (single + dual), D4i/D2i/D1i
User manual SIPLACE D4i 3 Technical data for the machine
From software version SR.605.03 SP2 10/2012 EN edition 3.7 PCB conveyor system
113

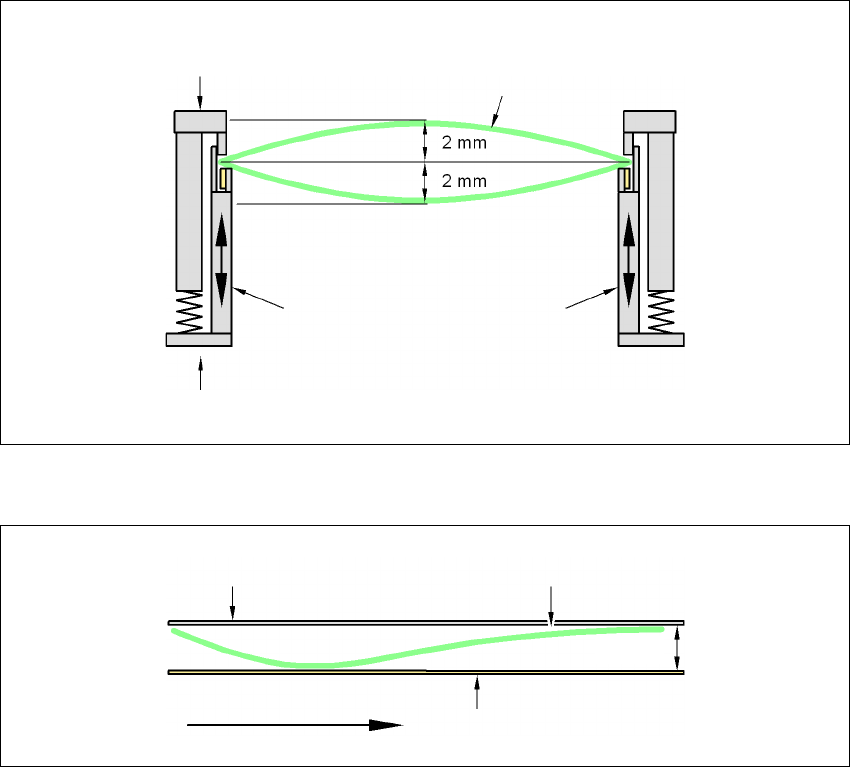

3.7.7 Definition of the PCB warpage
3.7.7.1 PCB warpage on the conveyor
PCB warpage across the direction of travel max. 1 % of the PCB diagonal, but not exceeding 2 mm
3
PCB warpage in direction of travel + PCB thickness < 5.5 mm
3
3
Fixed clamped edge
Movable clamping device
Printed circuit board
Conveyor side wall
Fixed clamped edge
Conveyor belt
Printed circuit board
PCB transport direc-
tion
5.5 mm
