3 Technical data for the machine User manual SIPLACE D4i 3.9 Feeder modules From software version SR.605.03 SP2 10/2012 EN edition 126 3.9.9 T ape feeder module 12/16 mm S Fig. 3.9 - 4 T a pe feeder module 12/16 mm S Ite…
User manual SIPLACE D4i 3 Technical data for the machine
From software version SR.605.03 SP2 10/2012 EN edition 3.9 Feeder modules
125
3.9.8.3 Tape feeder module 3 x 8 mm SL for 0201 and larger components
3
Fig. 3.9 - 3 Tape feeder module 3x8 mm SL
a
for 0201 and larger components
3
Item no. 00141088-xx 3
Width 30.6 mm 3
Tracks per feeder module 3 3
Feeder module locations filled 1 3
Max. number of feeder modules per machine 2 x 15 3
Stock of components for 7" reels approx. 10,000 3
Conveyor increment 2 mm / 4 mm / 8 mm 3
Tape material Paper or blister tapes 3
Max. CO height 2.5 mm 3
Component range from 0201 3
2 pick-up positions Front position: component 1.6 mm
Rear position: component 1.6 mm 3
3
The new "Feed on Demand" principle has been implemented on this feeder module to reduce the
component rejection rate. The components are not transported to the pick-up position until the
placement head moves to the pick-up position. 3
a) SL = shutterless, that is without any component cover
3 Technical data for the machine User manual SIPLACE D4i
3.9 Feeder modules From software version SR.605.03 SP2 10/2012 EN edition
126
3.9.9 Tape feeder module 12/16 mm S

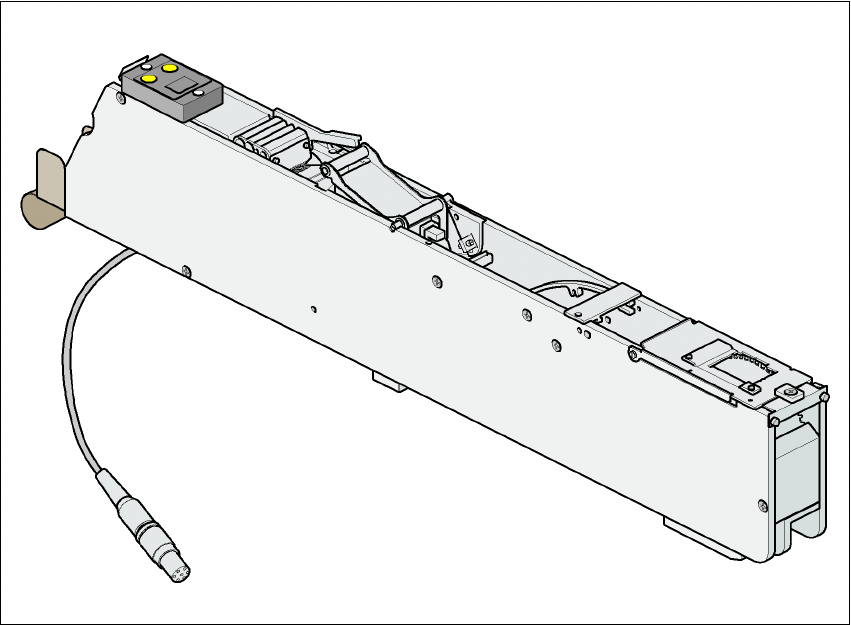

Fig. 3.9 - 4 Tape feeder module 12/16 mm S
Item no. 00141092-xx
Width 30.3 mm
Tracks per feeder module 1
Feeder module locations filled 1
Max. number of feeder mod. per machine 4 x 12
Stock of components for 7" reels approx. 4,000
Conveyor increment from 4 to 24 mm in 4 mm increments
Tape material Paper or blister tapes
Max. CO height 14 mm 3
User manual SIPLACE D4i 3 Technical data for the machine
From software version SR.605.03 SP2 10/2012 EN edition 3.9 Feeder modules
127
3.9.10 Tape feeder module 24/32 mm S
Fig. 3.9 - 5 Tape feeder module 24/32 mm S
Item no. 00141093-xx
Width 42.4 mm
Tracks per feeder module 1
Feeder module locations filled 1.5
Max. number of feeder modules per machine 4 x 8
Stock of components for 7" reels approx. 2,000
Conveyor increment from 4 to 40 mm in 4 mm increments
Tape material Blister tapes
Max. CO height 14 mm 3
