User manual SIPLACE D4i 3 Technical data for the machine From software version SR.605.03 SP2 10/2012 EN edition 3.9 Feeder modules 129 3.9.12 Bulk case feeder module 3 Fig. 3.9 - 7 Bulk case feeder module 3 Item no. 0014…
3 Technical data for the machine User manual SIPLACE D4i
3.9 Feeder modules From software version SR.605.03 SP2 10/2012 EN edition
128
3.9.11 Linear vibratory feeder, type 3
3

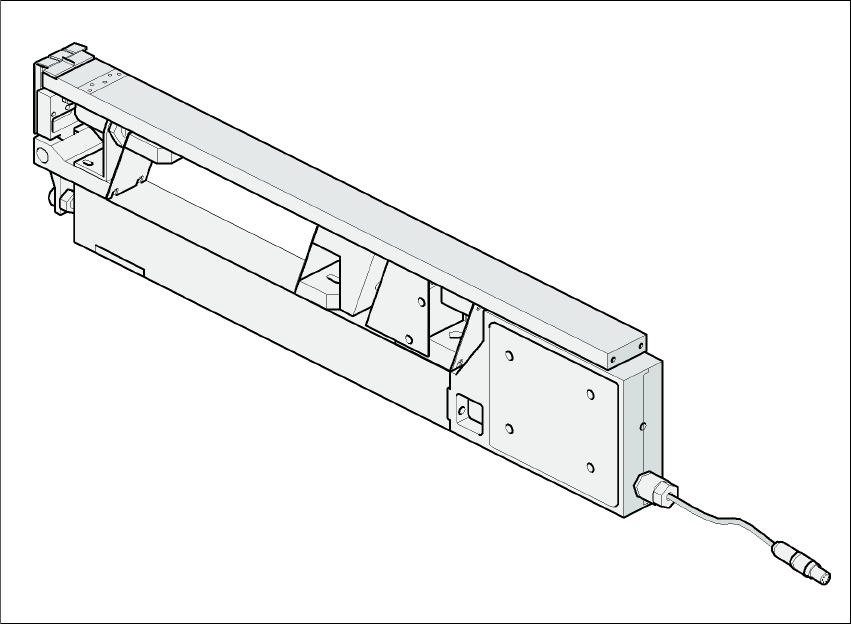

Fig. 3.9 - 6 Linear vibratory feeder, type 3
Item no. 00142031-xx
Width 28 mm
Tracks per feeder 1, 2 or 3
Locations filled 1
Max. number of feeder modules per machine 4 x 12
Stock of components up to 150 per steel stick magazine,
depending on the component length
Specific data for stick magazines 9.5 mm wide / x 3
15 mm wide / x 2
> 15 mm wide / x 1
30 mm wide / 1 x
Vibrating time variable with SIPLACE Pro from 400 to
over 1,000 ms
User manual SIPLACE D4i 3 Technical data for the machine
From software version SR.605.03 SP2 10/2012 EN edition 3.9 Feeder modules
129
3.9.12 Bulk case feeder module
3

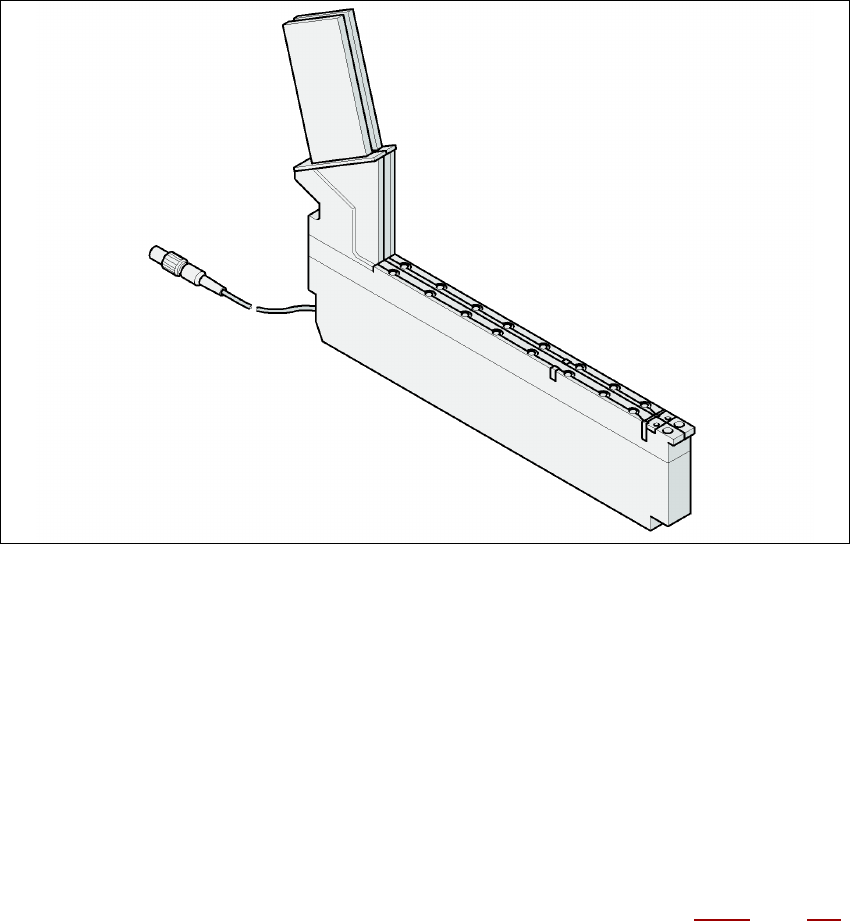

Fig. 3.9 - 7 Bulk case feeder module
3
Item no. 00142318-xx
Width 30.6 mm
Tracks per feeder module 2
Feeder module locations filled 1
Max. number of feeder mod. per machine 4 x 12
Stock of components up to 50,000
Feeding rails 0402/0.5 mm height item no. 00142320-xx
0603/0.80 mm height item no. 00142322-xx
Cycle time < 60 ms
The compressed air supply for bulk case feeder modules is described in Section 3.10.6
, page 137.
3 Technical data for the machine User manual SIPLACE D4i
3.9 Feeder modules From software version SR.605.03 SP2 10/2012 EN edition
130
3.9.13 Surf tape feeder module
3.9.13.1 Overview
For placing bare dies, you will need the surf tape feeder module for feeding components. There
are versions of these feeder modules for 8 mm tapes and 12 or 16 mm tapes.
3

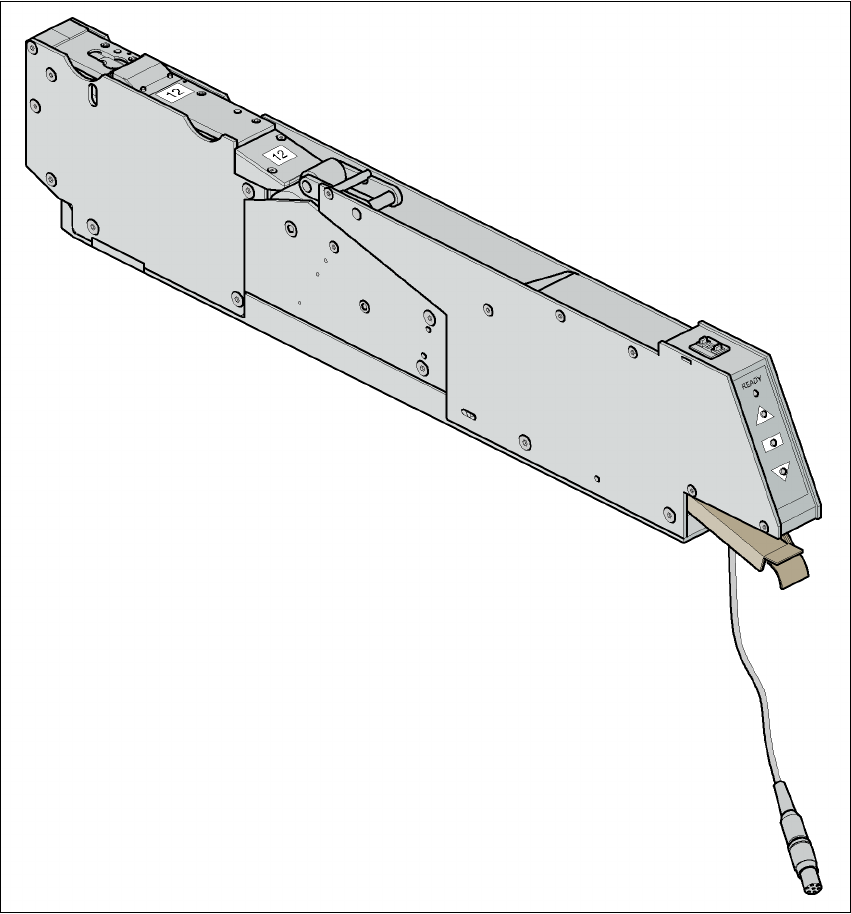

Fig. 3.9 - 8 Surf tape feeder module
Handling of the feeder module is described in the operating instructions for feeder modules.
