3.10.4 Tape container
The tape container can hold reels up to 19" in diameter. You should use spindles to process reels
of 15" diameter or more. The use of separating plates is described in Section 5.5.4
on page 200.
PLEASE NOTE 3
For optimum operation, we recommend the use of spindles for 15" diameter or more.
3
Fig. 3.10 - 4 Component trolley with tape container
(1) Component trolley
(2) Tape container
(3) Waste tape container
(4) Spindle (enlarged)
(5) Position of the spindles
(6) Separating plate
User manual SIPLACE D4i 3 Technical data for the machine
From software version SR.605.03 SP2 10/2012 EN edition 3.10 Component trolley
137
3.10.4.1 Tape reel diameter in relation to the PCB conveyor height
3
3.10.5 External power supply for component trolley
Item no. 00119029-xx External power supply, feeder table D4i
Item no. 00119030-xx Extension cable, feeder table
To keep the time required for a setup change as short as possible, component trolleys can be set
up in advance at a special external location. The feeder module functions and setting can be
checked there to prepare for use. We provide an external power supply for this purpose. The com-
ponent trolley with the required electrical power and compressed air is supplied via a connecting
cable.
3.10.5.1 Technical data
The kit contains a main power cable to European standards, a main power cable to US standards
and a connecting cable between the power supply and the component trolley.
3.10.6 Compressed air supply for bulk case feeder modules
Item no. 00119028-xx Bulk case compressed air distributor
Bulk case feeder modules require compressed air in order to work. A compressed air supply for
bulk case feeder modules is therefore available as an option.
Option –
With support for 3rd tape
reel
PCB conveyor height
of the component trolley
Tape reel diameter Tape reel diameter
830 mm 17" 15"
900 mm 19" 17"
930 mm 19" 17"
950 mm 19" 19"
Main power voltage 230 VAC ± 5 %
120 VAC ± 5 %
Compressed air connection Max. 1.0 MPa (10 bar)
Output pressure Can be adjusted with pressure regulator
3 Technical data for the machine User manual SIPLACE D4i
3.10 Component trolley From software version SR.605.03 SP2 10/2012 EN edition
138
It is easy to fit. The compressed air distributor (item 1 in Fig. 3.10 - 5) is fastened to the component
table (item 3 in Fig. 3.10 - 5
) with two screws (item 2 in Fig. 3.10 - 5). The distributor is then con-
nected to the compressed air supply of the component trolley. The distributor has retaining clips
on the back (item 4 in Fig. 3.10 - 5
). They fix the bulk case feeder modules to the component table
and thus ensure a perfect compressed air supply.
3

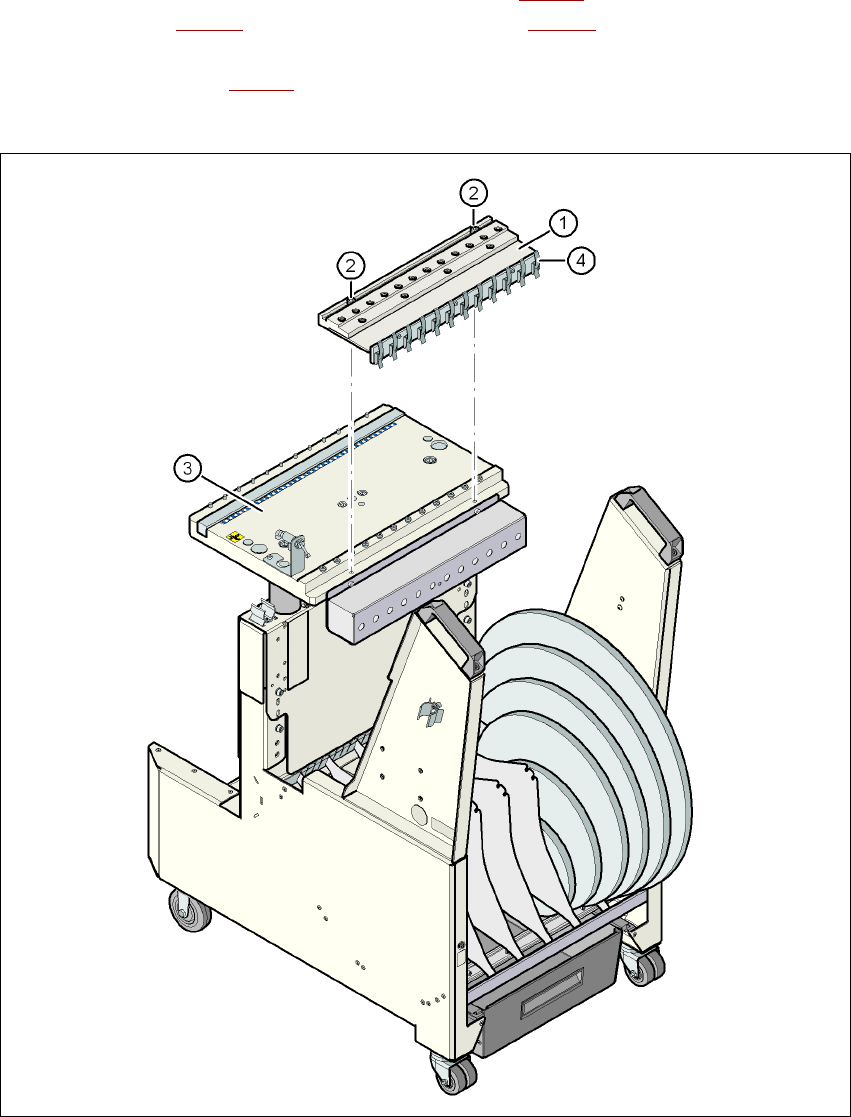

Fig. 3.10 - 5 Compressed air supply for bulk case feeder modules
(1) Compressed air distributor
(2) DIN 912 screw, M8x20, 2x
(3) Component table
(4) Retaining clamps
