4 Setting up and commissioning User manual SIPLACE D4i 4.2 Infrastructure at the installation location From software version SR.605.03 SP2 10/2012 EN edition 158 4.2.5 Interfaces 4 Fig. 4.2 - 10 Interfaces 4 (1) SMEMA/Si…
User manual SIPLACE D4i 4 Setting up and commissioning
From software version SR.605.03 SP2 10/2012 EN edition 4.2 Infrastructure at the installation location
157
4

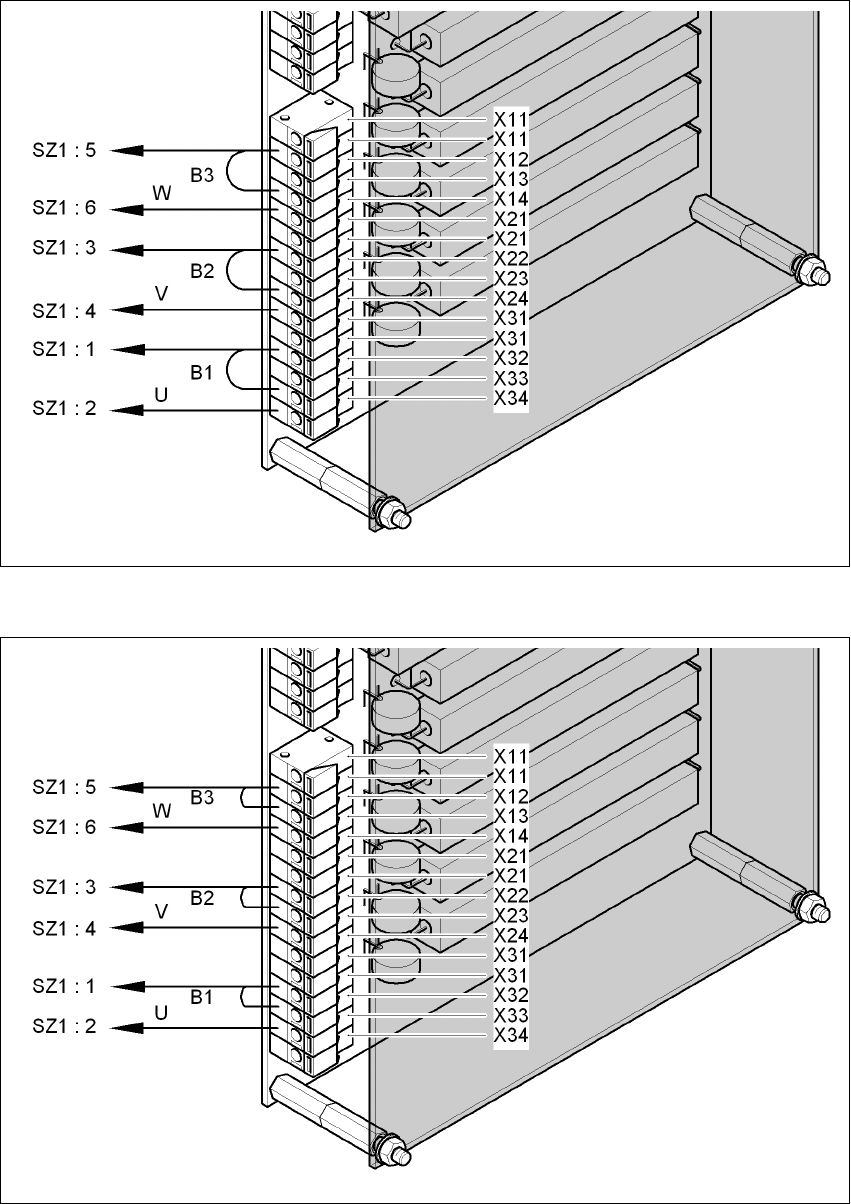

Fig. 4.2 - 8 Inrush current limitation - connections and jumpers at 3 x 200 VAC / 3 x 208 VAC / 3 x 230 VAC
4
Fig. 4.2 - 9 Inrush current limitation - connections and jumpers at 3 x 380 VAC / 3 x 400 VAC / 3 x 415 VAC
3 x 200 VAC / 3 x 208 VAC / 3 x 230
3 x 380 VAC / 3 x 400 VAC / 3 x 415 VAC
4 Setting up and commissioning User manual SIPLACE D4i
4.2 Infrastructure at the installation location From software version SR.605.03 SP2 10/2012 EN edition
158
4.2.5 Interfaces
4
Fig. 4.2 - 10 Interfaces
4
(1) SMEMA/Siemens interfaces in sector 1 (option)
(2) PC and LAN connection in the "PCB input" attachment
(T) PCB transport direction
User manual SIPLACE D4i 4 Setting up and commissioning
From software version SR.605.03 SP2 10/2012 EN edition 4.3 Setting up the machine
159
4.3 Setting up the machine
4.3.1 PCB conveyor height on the machine
The machine can be set to the following PCB conveyor heights:
830 mm ± 15 mm Standard height 4
900 mm ± 15 mm Option 4
930 mm ± 15 mm Option 4
950 mm ± 15 mm SMEMA option 4
PLEASE NOTE 4
The PCB conveyor height is the distance between the top edge of the PCB conveyor belt and the
bottom edge of the machine feet.
4.3.2 Warning instructions
DANGER 4
Only ASM AS engineers or qualified people are permitted to set up and commission the machine.
→ Always follow the applicable accident prevention regulations.
→ Never lie beneath the machine in order to attach the machine feet. All the modules and parts
can be fitted from the spaces for the component tables. If you nevertheless have to carry out
assembly work underneath the machine, then you must secure the machine by suitable
means. The fork-lift must not be used as the only support.
→ Make sure that the gantries are positioned over the PCB conveyor area so that you do not
restrict your head movement during assembly, thus excluding the risk of injury.
→ Two people will be needed to adjust the height of the machine:
– one person to carry out the necessary assembly work,
– the other person to watch the raised machine during assembly and ensure that it does not
move.
→ Wear special safety boots to protect your feet.
