5 Tasks for the operating personnel User manual SIPLACE D4i 5.4 Changing shift From software version SR.605.03 SP2 10/2012 EN edition 198 5.4 Changing shif t PLEASE NOTE: 5 Y ou will find additional information in the fo…

User manual SIPLACE D4i 5 Tasks for the operating personnel

From software version SR.605.03 SP2 10/2012 EN edition 5.3 Note operating status indicator lamp

197

Pick-up error display

unchanged unchanged flashes (1,20) First track empty, left

unchanged unchanged flashes (5,20) Further tracks empty, left

unchanged unchanged flashes (5,5) Penultimate track in use

unchanged unchanged flashes (1,2) Last track in use, right

flashes (1,20) unchanged unchanged First track empty, right

flashes (5,20) unchanged unchanged Further tracks empty, right

flashes (5,5) unchanged unchanged Penultimate track in use, right

flashes (1,2) unchanged unchanged Last track in use, right

L1 (white)

(right lamp)

L2 (green) L3 (white)

(left lamp)

Meaning

5 Tasks for the operating personnel User manual SIPLACE D4i

5.4 Changing shift From software version SR.605.03 SP2 10/2012 EN edition

198

5.4 Changing shift

PLEASE NOTE: 5

You will find additional information in the following manuals or data media:

– Getting Started with Station Software 605.xx

– SIPLACE D4i preventive maintenance

– Parts catalog on the product CD

5.4.1 Activities at shift change

→ Splice the tapes early. The feeder modules do not have to be refilled as soon as the new shift

starts. This minimizes extended down times.

→ At the shift change, pass important information on to the next operator. This includes, for in-

stance, changes to the placement program. Also read through the list of the descriptions of

the steps to take in Section 5.7

, page 206.

→ Carry out a set-up check.

Make sure that the feeder modules are equipped with the correct components, that they are

at the correct locations in the component trolley and that the conveyor increment is set cor-

rectly.

→ Hand over the line in the same state that you would want to find it in when starting your shift.

This means that:

– The rejection containers are empty.

– The waste tape containers are empty.

– The feeder areas have been carefully cleaned with a vacuum cleaner.

User manual SIPLACE D4i 5 Tasks for the operating personnel

From software version SR.605.03 SP2 10/2012 EN edition 5.5 Carrying out a walk-through inspection

199

5.5 Carrying out a walk-through inspection

5.5.1 Checking the S feeder modules

→ Make sure that the tape is correctly placed in the springs of the S feeder module.

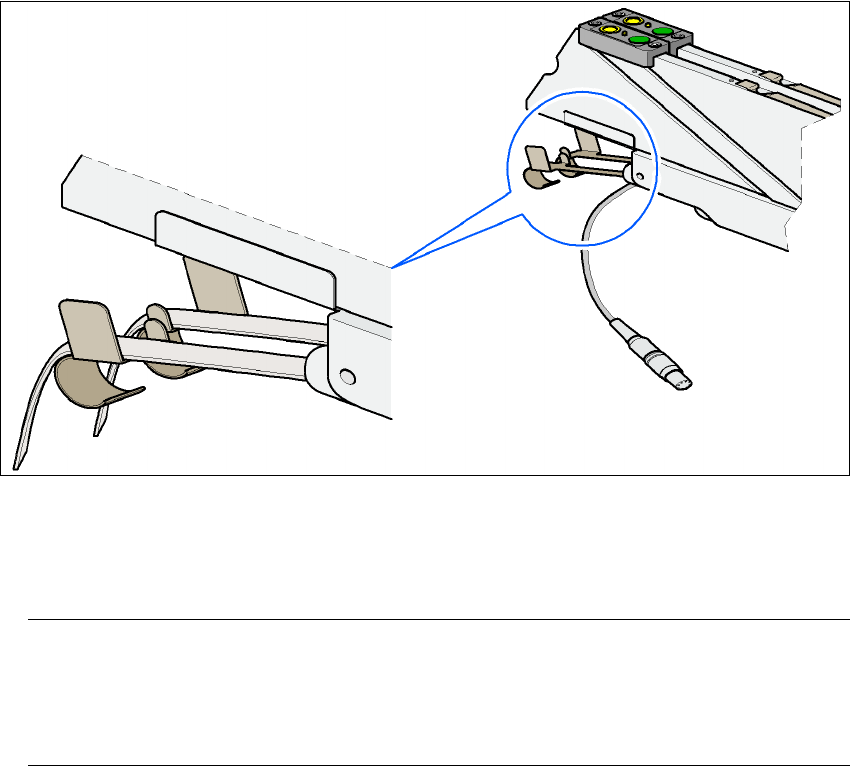

Fig. 5.5 - 1 Placing the tape in the springs of the S feeder module

→ Check to see whether the tape foil removal container for the S feeder module is full.

If it is full, then pull out the foil and cut it off with scissors.

PLEASE NOTE

Tearing the foil instead of cutting it can lead to problems with the tape removal mechanism.

For this reason the 3 x 8 mm feeder modules are fitted with an integral cutter. This is in the

tape foil removal container at the end of the feeder module under the flaps. 5

→ Check to ensure that the pick-up window on combination feeder modules (24/32 mm) is the

right size for the component.

→ Check to see whether tape guides are inserted on combination feeder modules (24 mm /

32 mm).
