5 Tasks for the operating personnel User manual SIPLACE D4i 5.5 Carrying out a walk-through inspection From software version SR.605.03 SP2 10/2012 EN edition 202 5.5.5 Using spindles fo r large tape reels → Insert spindl…
User manual SIPLACE D4i 5 Tasks for the operating personnel
From software version SR.605.03 SP2 10/2012 EN edition 5.5 Carrying out a walk-through inspection
201
5

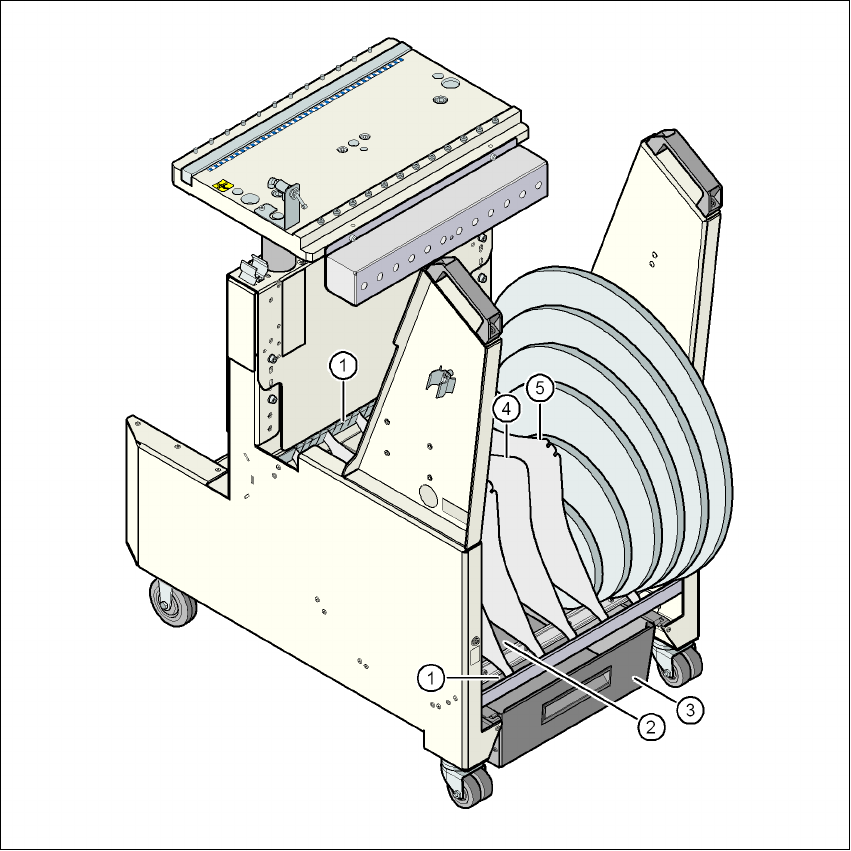

Fig. 5.5 - 2 Separating plates in the tape container
(1) Guide rail for the separating plates
(2) Tape container
(3) Waste tape container
(4) Position of the separating plate if no spindles are used
(5) Position of the separating plate if spindles are used
5 Tasks for the operating personnel User manual SIPLACE D4i
5.5 Carrying out a walk-through inspection From software version SR.605.03 SP2 10/2012 EN edition
202
5.5.5 Using spindles for large tape reels
→ Insert spindles into the separating plates when using large tape reels.
PLEASE NOTE 5
We recommend that you use spindles if the tape reel diameter exceeds 15" (381 mm). This will
ensure that the feeder modules operate reliably.
5
Fig. 5.5 - 3 Inserting spindles for large reels
5
(1) Component trolley
(2) Position of the spindles
(3) Separating plate
(4) Spindle (enlarged)
User manual SIPLACE D4i 5 Tasks for the operating personnel
From software version SR.605.03 SP2 10/2012 EN edition 5.6 Setting up the feeder modules
203
5.6 Setting up the feeder modules
5
Fig. 5.6 - 1 Component table with 12 locations for S feeder modules
(1) S feeder module
(2) Centering pin
(3) Centering ball
(4) Component table
(5) Connecting cable for the S feeder module
