6 Station extensions User manual SIPLACE D4i 6.1 Nozzle changer for the 12-nozzle Collect & Place head From software version SR.605.03 SP2 10/2012 EN edition 216 6.1.1 Description This nozzle changer can hold up to 5…
User manual SIPLACE D4i 6 Station extensions
From software version SR.605.03 SP2 10/2012 EN edition 6.1 Nozzle changer for the 12-nozzle Collect&Place head
215
6 Station extensions
6.1 Nozzle changer for the 12-nozzle Collect&Place
head
Item no. 00119888-xx Nozzle changer, CP12 D4i (four heads)
Item no. 00119161-xx Nozzle changer, CP12 D4i (per head)
Nozzle changers can greatly increase the flexibility of the placement heads for processing differ-
ent types of component. If the placement program requires a nozzle change, then the placement
head automatically returns the old nozzle to the nozzle holder and picks up the new nozzle. Noz-
zles that were separated out during the vacuum check can also be quickly changed.
It is significantly more exact and faster to pick up nozzles from a nozzle changer than would be
possible manually. When placing small components, it is essential to minimize the radial eccen-
tricity during nozzle rotation.
6

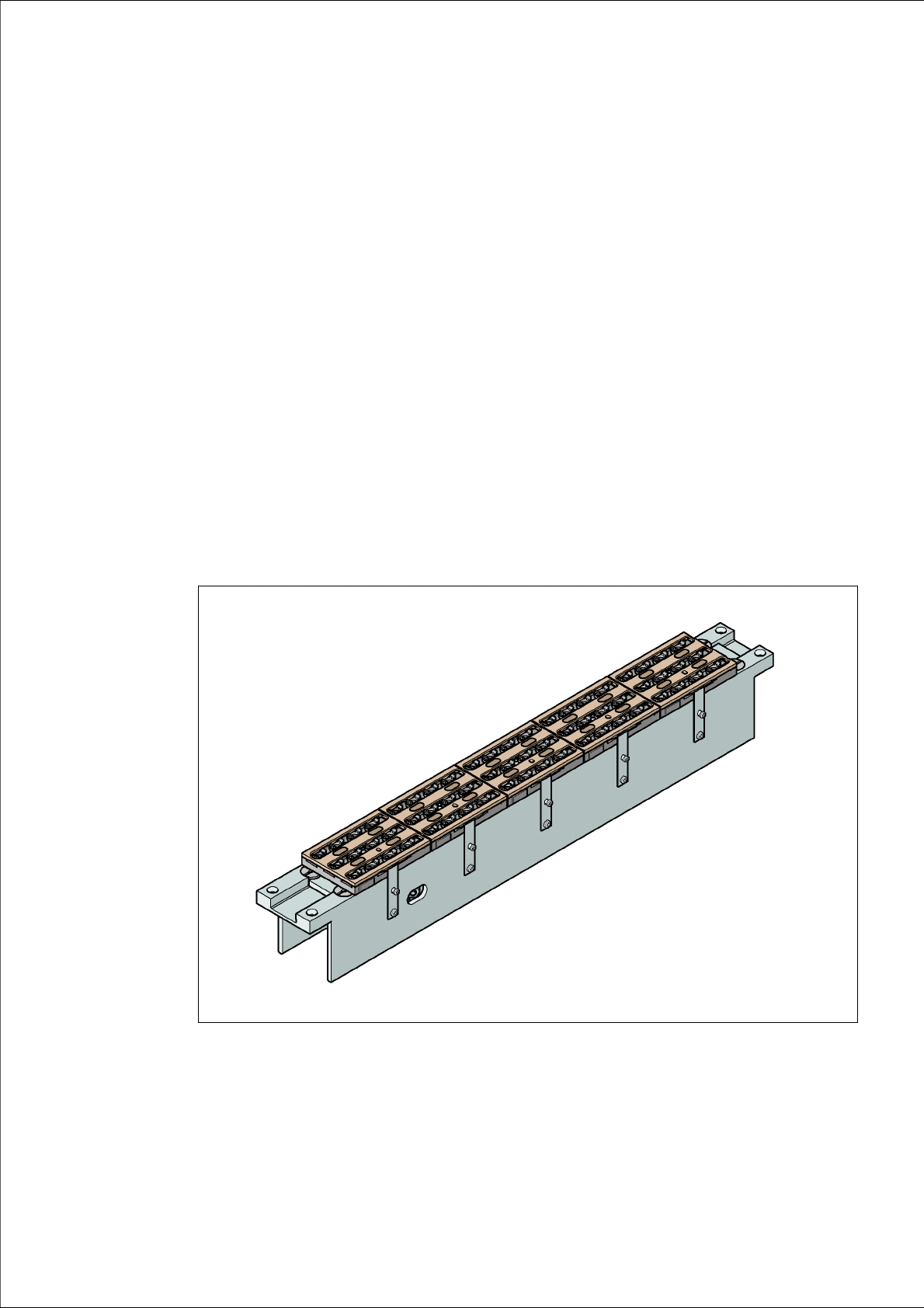

Fig. 6.1 - 1 Nozzle changer for the 12-nozzle Collect&Place head
6 Station extensions User manual SIPLACE D4i
6.1 Nozzle changer for the 12-nozzle Collect&Place head From software version SR.605.03 SP2 10/2012 EN edition
216
6.1.1 Description
This nozzle changer can hold up to 5 magazines, each with 12 nozzle holders. The magazines
are seated on a common carrier (see Fig. 6.1 - 1
, page 215). They are centered using two parallel
pins and fixed in place with clips.
A second nozzle changer can be optionally installed at each location (see item 6 in Fig. 6.1 - 2
,
page 217
).
6.1.2 Technical data
6
Nozzle changer for the 12-nozzle Collect&Place head
Dimensions (length x width x height) 472.5 x 63 x 77 mm³
Number of magazines 5, each with 12 nozzle holders
Nozzle types 9xx
Nozzle changeover time approx. 2s per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
User manual SIPLACE D4i 6 Station extensions
From software version SR.605.03 SP2 10/2012 EN edition 6.1 Nozzle changer for the 12-nozzle Collect&Place head
217
6.1.3 Position of the nozzle changers for the C&P12 head
At locations 1 to 4, two nozzle changers can be installed at each location for the 12-nozzle
Collect&Place head (item 1 and 6 in Fig. 6.1 - 2
). This gives a total capacity of 8 nozzle changers
with 40 magazines and 480 nozzle holders.
6
Fig. 6.1 - 2 Position of the nozzle changers for the 12-nozzle Collect&Place head
6
(1) Nozzle changer
(2) Nozzle magazine
(3) Reject bin for nozzles
(4) Take-off device for nozzles
(5) Reject bin for components
(6) Installation location for a second nozzle changer
