6.2.6.6 Positioning along the width of the PCB -
Scanning beam along the direction of travel,
PCB barcode scanner 1D underside
6

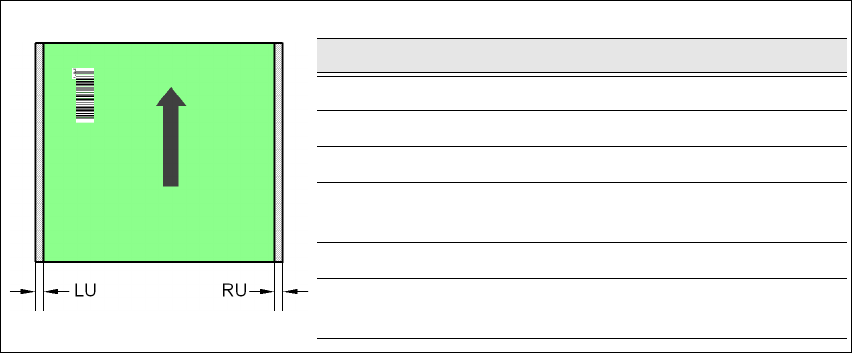

Fig. 6.2 - 9 Positioning along the width of the PCB - Scanning beam along the direction of travel
PCB barcode scanner 1D underside
SC Single conveyor
DC1 Dual conveyor, track 1
DC2 Dual conveyor, track 2
SM1 Dual conveyor in Single conveyor mode, track 1
SM2 Dual conveyor in Single conveyor mode, track 2
PCB dimensions/conveyor LU [mm] RU [mm]
460 mm / SC 20 3
508 mm / SC 44 3
216 mm / DC1 3 3
242 mm / DC1
380 mm / SM1
33
216 mm / DC2 24 3
242 mm / DC2
380 mm / SM2
58 3
6 Station extensions User manual SIPLACE D4i
6.3 PCB alignment From software version SR.605.03 SP2 10/2012 EN edition
230
6.3 PCB alignment
Item no. 00119425-xx Mechanical PCB alignment for dual lane D4i
Item no. 00119426-xx Mechanical PCB alignment for single lane D4i
6.3.1 Description
PCBs to be processed sometimes have a length to width ratio of 1:2 or worse. This means that
the shorter side of the PCB points in the direction of travel. During travel, such PCBs may twist
slightly and, as a result, the fiducials no longer lie within the PCB camera's search window. In this
case, the "PCB alignment" option ensures that these PCBs are realigned precisely at the stopping
position.
If PCBs with recesses in the direction of travel are processed, this may result in different process-
ing positions on machines that monitor this position with laser light barriers (X-series, D-series).
The "PCB alignment" option ensures that the PCBs are stopped at the required position on the
PCB conveyors. The "PCB alignment" option is available for both single and dual conveyors.
6

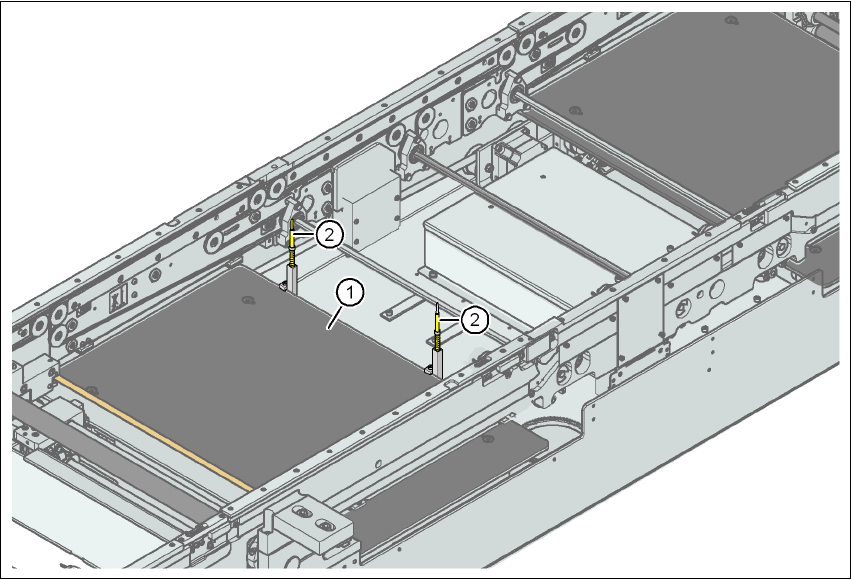

Fig. 6.3 - 1 PCB alignment
(1) Lifting table
(2) PCB stop
User manual SIPLACE D4i 6 Station extensions
From software version SR.605.03 SP2 10/2012 EN edition 6.4 SMEMA adapter box
231
The PCB is transported into the placement area until the laser light barrier triggers the stop signal
for the PCB conveyor. The lifting table with the PCB stops then moves up into a position in which
the PCB is not yet clamped and can still be moved by the conveyor belts. The two PCB stops are
level with the PCB, and the PCB supports (magnetic pins) are already in contact with the PCB.
The two conveyor belts move the PCB against the PCB stops and align them at the same time.
The lifting table then moves into its top end position, clamps the PCB and releases it from the PCB
stops so as not to affect the placement process. After the placement process, the lifting table and
PCB alignment are lowered and the PCB is moved on.
6
6.4 SMEMA adapter box
Item no. 00119092-xx SMEMA adapter box input & output (single + dual) D4i/D2i/D1i
The PCB conveyor control for the D series of machines has the Siemens interface for communi-
cation between machines. You can configure the conveyor interface to the SMEMA standard us-
ing the SMEMA adapter box and the associated cable sets.
More detailed information can be found in the "Siemens conveyor interface retrofit instructions",
item no. 00194343-xx.
6.5 Package for splice detection
Item no. 00119032-xx Splice detection, D4i table controller
Item no. 00116938-xx Splice detection, D4i station package
Item no. 00141xxx-xx Splice sensors for S tape feeder modules
(see Section 3.9.7
, page 122 for item numbers)
Splice detection serves to recognize a batch change for components. The component tapes are
attached to the splicing point by a metal strip. The component tape runs over the splice sensor
which is installed on the feeder module and signalizes a tape change.
