6.13 Vision Teach Station

Item no. 00119788-xx Vision teach station

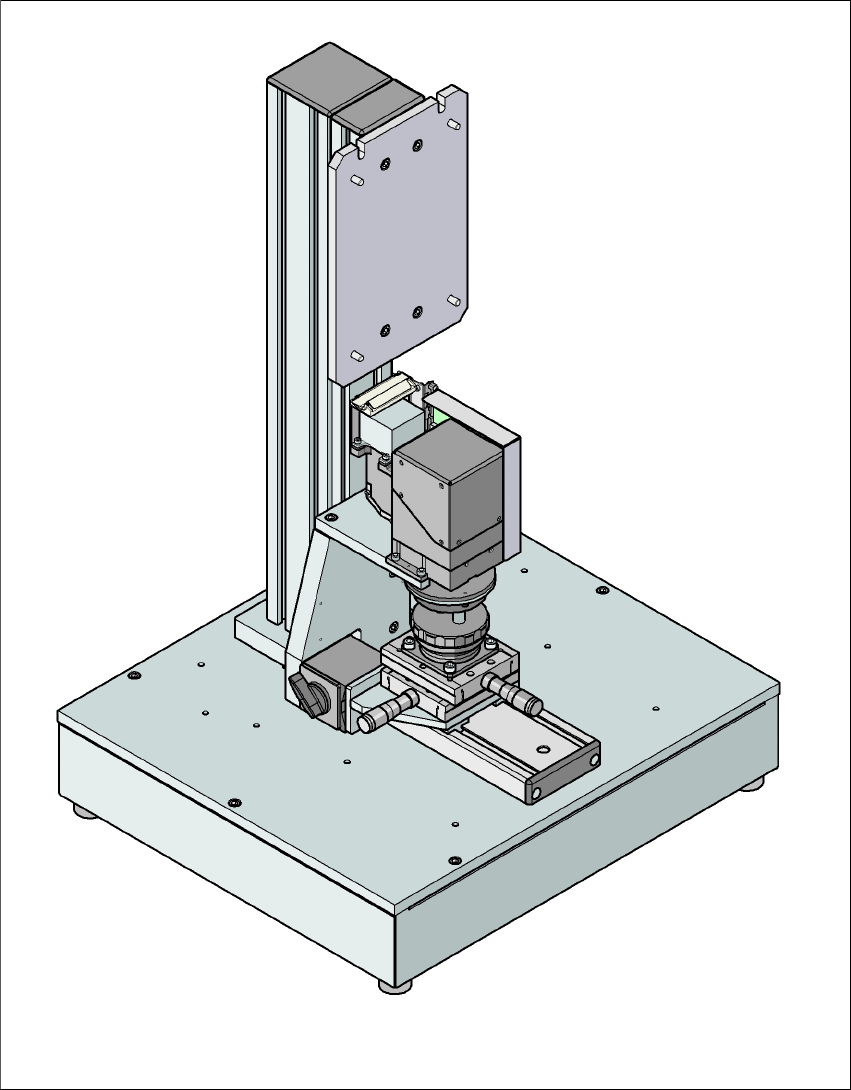

Fig. 6.13 - 1 Vision teach station with component camera, type 28

User manual SIPLACE D4i 6 Station extensions

From software version SR.605.03 SP2 10/2012 EN edition 6.13 Vision Teach Station

241

6.13.1 Description

The vision teach station is a system for creating and testing package form descriptions for com-

ponents to be processed on SIPLACE placement machines.

The vision teach station essentially consists of the following components:

– Base module with electronic circuits and one or two component cameras

– Mini-tower PC

WINDOWS XP operating system 6

SIPLACE Vision image processing software 6

SIPLACE Pro database server 6

Camera interfaces: CAN bus card and camera bus card 6

The vision teach station is used to create and test descriptions for package forms for any place-

ment machine and to run component inspections.

The package form descriptions thus created may be stored in the SIPLACE Pro database on the

vision teach station and transferred to the SIPLACE Pro database of the production system. You

can also download vision screenshots from placement machines to the vision teach station for

analysis. Only multiple component measurements still have to be carried out on the machine.

6.13.2 Advantages

The major advantage of this offline system is that it is totally independent of the production system,

and no production system resources have to be used for creating and testing package form de-

scriptions. As a result, there is no loss of productivity due to the description and testing of package

forms. The time taken to introduce new products can also be considerably reduced with this inde-

pendent system.

6 Station extensions User manual SIPLACE D4i

6.13 Vision Teach Station From software version SR.605.03 SP2 10/2012 EN edition

242

6.13.3 Which component cameras are supported?

The vision teach station supports the following component cameras:

Component camera Component range

Used on which placement

machine?

C&P, type 23, 6x6 ,

digital

01005 to 6 x 6 mm² X series:

head camera for the C&P20 head

C&P, type 28, 18 x 18,

digital

0402 to 18.7 x 18.7 mm²,

PLCC 44, BGA, µBGA, flip-

chip, TSOP, QFP,

SO to SO32, DRAM

X/D series:

head camera for the C&P12 head

C&P, type 29, 27 x 27,

digital

0201 to 27 x 27 mm²

PLCC, SO, QFP, TSOP,

SOT, MELF, CHIP, IC, BGA

X/D series:

head camera for the C&P6 and

C&P12 head

C&P, type 30, 27 x 27,

digital

01005 to 27 x 27 mm²

PLCC, SO, QFP, TSOP,

SOT, MELF, CHIP, IC, BGA

X/SX/D series:

head camera for the CPP and

C&P12 head

P&P, stationary, type 33,

55 x 45, digital

0402 to 55 x 45 mm²,

MELF, SO, PLCC, QFP,

electrolytic capacitors, BGA,

connectors

X/D series:

stationary camera for ICs and con-

nectors

P&P, stationary, type 25,

16 x 16, digital

0201 to 16 x 16 mm²,

SO, PLCC, QFP, sockets,

plugs, BGA, special compo-

nents, bare dies, flip-chips,

shields

X/D series:

stationary camera for flip-chip com-

ponents

P&P, stationary, type 36,

32 x 32, digital

0603 to 32 x 32 mm²,

SO, PLCC, QFP, BGA, spe-

cial components, bare dies,

flip-chip

D1i:

stationary camera for ICs and con-

nectors on the D1i machine
