User manual SIPLACE D4i 2 Operational safety From software version SR.605.03 SP2 10/ 2012 EN edition 2.3 Laser classification 49 2.3 Laser classification 2.3.1 Laser class 1 2.3.1.1 Classification of the whole machine 2 …
2 Operational safety User manual SIPLACE D4i
2.2 Warning labels From software version SR.605.03 SP2 10/2012 EN edition
48
2.2.8 Warning label on the CEKON plug
2
Pos. W 211 in Fig. 2.2 - 12 (number per machine: 1)
2

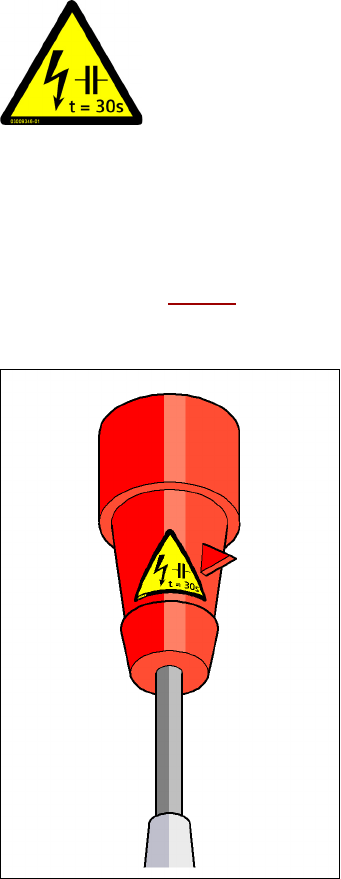

Fig. 2.2 - 12 Warning label W211 on the CEKON plug
Pos. W211, item no. 03009351-01
2
RESIDUAL VOLTAGE!
Wait 30 seconds after disconnecting the main power plug from the mains to
allow any residual voltages to dissipate.
NAFTA region: Hazardous Voltage
Residual power at plug prongs and wire ends will cause death or serious in-
jury. Avoid contact with power plug and/or wire ends for 30 seconds
User manual SIPLACE D4i 2 Operational safety
From software version SR.605.03 SP2 10/2012 EN edition 2.3 Laser classification
49
2.3 Laser classification
2.3.1 Laser class 1
2.3.1.1 Classification of the whole machine
2
PLEASE NOTE: 2
Modules in laser classes 1 and 1M are not identified.
2.3.1.2 Classification of the camera systems
2
2.3.2 Laser class 1M
Do not look directly at this with optical instruments!
2
2
All installed camera systems and the whole machine when ready for
operation are assigned to laser class 1.
The laser classes are determined according to DIN EN 60825-1:2001.
2
The following camera systems are assigned to laser class 1:
– PCB camera, type 34, digital
2
The following camera systems are assigned to laser class 1M:
– C&P CO camera, type 28, 18 x 18 on the 12-nozzle Collect&Place head
– C&P CO camera, type 30, 27 x 27 on the 12-nozzle Collect&Place head
2 Operational safety User manual SIPLACE D4i
2.4 Safety instructions for transporting the machine From software version SR.605.03 SP2 10/2012 EN edition
50
2.3.3 Laser class 2
The following modules are assigned to laser class 2:
– Laser light barrier, placement area 1 in the PCB conveyor
– Laser light barrier, placement area 2 in the PCB conveyor
– PCB barcode scanner
2
2.4 Safety instructions for transporting the machine
2
Use a fork-lift truck with the following specification to carry the machine:
Fork length: min. 1800 mm
Carrying power: min. 6000 kg
Clear width between forks: min. 350 mm 2
WARNING
RISK OF TIPPING 2
If the required specification cannot be applied to the fork-lift, there is a risk that the fork-lift will tip
over when carrying the machine.
Transporting the machine is described in chapter 4, Section 4.1, page 141.
2
Laser radiation
Do not look into beam!
