User manual SIPLACE D4i 2 Operational safety From software version SR.605.03 SP2 10/2012 EN edition 2.5 Safety instructions for operating the machine 51 2.5 Safety instructions for o perating the machine 2.5.1 Safety ins…
2 Operational safety User manual SIPLACE D4i
2.4 Safety instructions for transporting the machine From software version SR.605.03 SP2 10/2012 EN edition
50
2.3.3 Laser class 2
The following modules are assigned to laser class 2:
– Laser light barrier, placement area 1 in the PCB conveyor
– Laser light barrier, placement area 2 in the PCB conveyor
– PCB barcode scanner
2
2.4 Safety instructions for transporting the machine
2

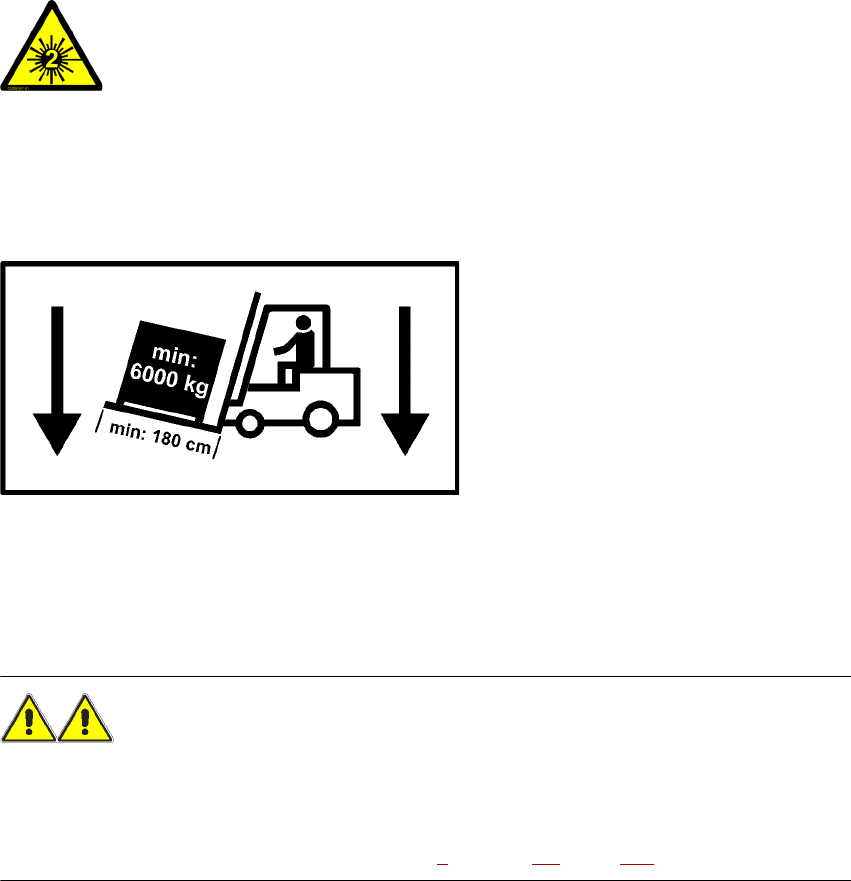

Use a fork-lift truck with the following specification to carry the machine:
Fork length: min. 1800 mm
Carrying power: min. 6000 kg
Clear width between forks: min. 350 mm 2
WARNING
RISK OF TIPPING 2
If the required specification cannot be applied to the fork-lift, there is a risk that the fork-lift will tip
over when carrying the machine.
Transporting the machine is described in chapter 4, Section 4.1, page 141.
2
Laser radiation
Do not look into beam!
User manual SIPLACE D4i 2 Operational safety
From software version SR.605.03 SP2 10/2012 EN edition 2.5 Safety instructions for operating the machine
51
2.5 Safety instructions for operating the machine
2.5.1 Safety instructions for closing the protective covers
To prevent any risk of injury when the protective covers on the machine are closed, the owner
must instruct his operators to use the protective covers exactly as specified in the following in-
structions.
CAUTION
RISK OF CRUSHING HANDS
IF THE PROTECTIVE COVERS ARE NOT CLOSED CORRECTLY 2
2

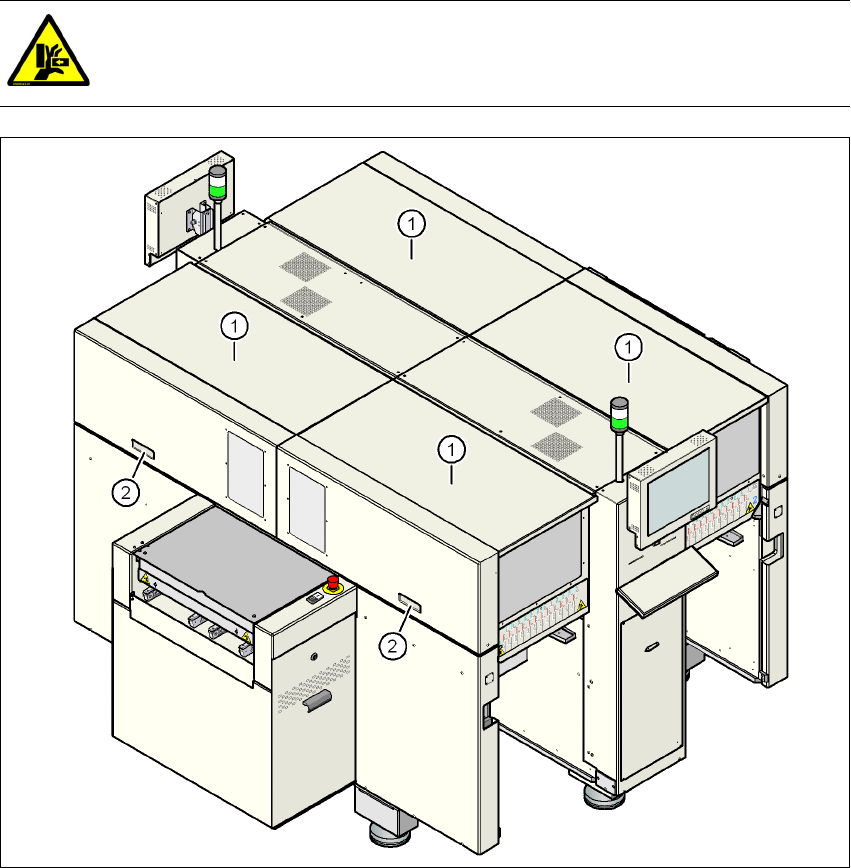

Fig. 2.5 - 1 Safety instructions for closing the protective covers
(1) Protective covers
(2) Recessed grips
2 Operational safety User manual SIPLACE D4i
2.5 Safety instructions for operating the machine From software version SR.605.03 SP2 10/2012 EN edition
52
→ When opening or closing the protective covers, always hold the covers by the recessed grips.
→ When closing, do not reach into the gap between the protective cover and the machine panel.
→ When you close the covers, make sure that there is no-one else in the cover swiveling range.
2.5.2 Safety instructions for docking the component trolley in or out
. 2

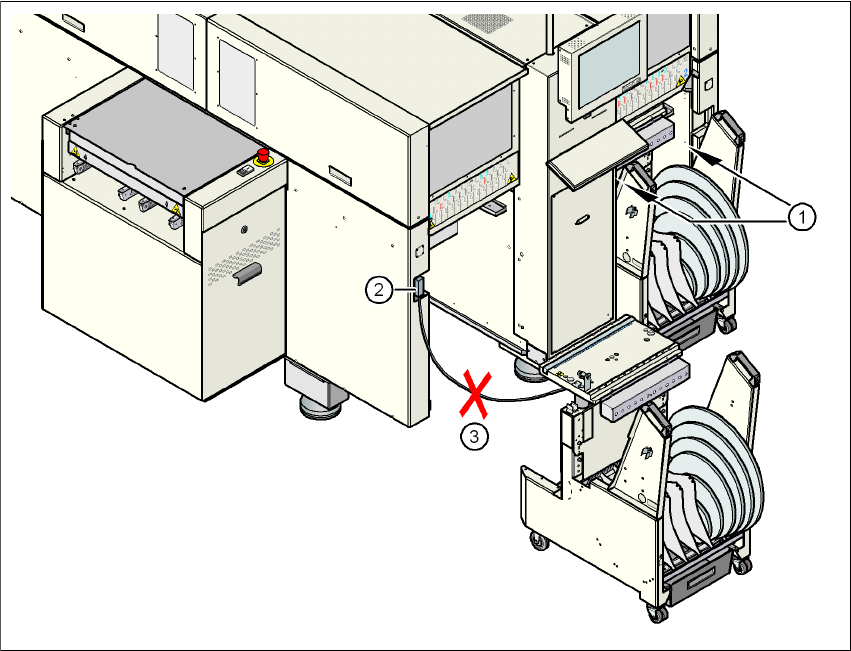

Fig. 2.5 - 2 Safety instructions on the component trolley
(1) Vertical gap between the machine frame and the component trolley
(2) Plug for connecting the component trolley cable
(3) Cable for compressed air and main power supply to the component trolley
