1 Introduction

1.1 Module Description

User Manual / Bedienungsanleitung SIPLACE Single Slot Interface 05/2021 35

1 Introduction

1.1 Module Description

The Single Slot Interface (referred to as SSI in this document) enables you to operate X feeder

modules outside a placement machine or a pre-setup area and to troubleshoot in the vicinity of the

line. The SSI is designed for use as a 1 track pre-setup area with a connection to the ASM Setup

Center.

1.1.1 Typeplate and Serial Number

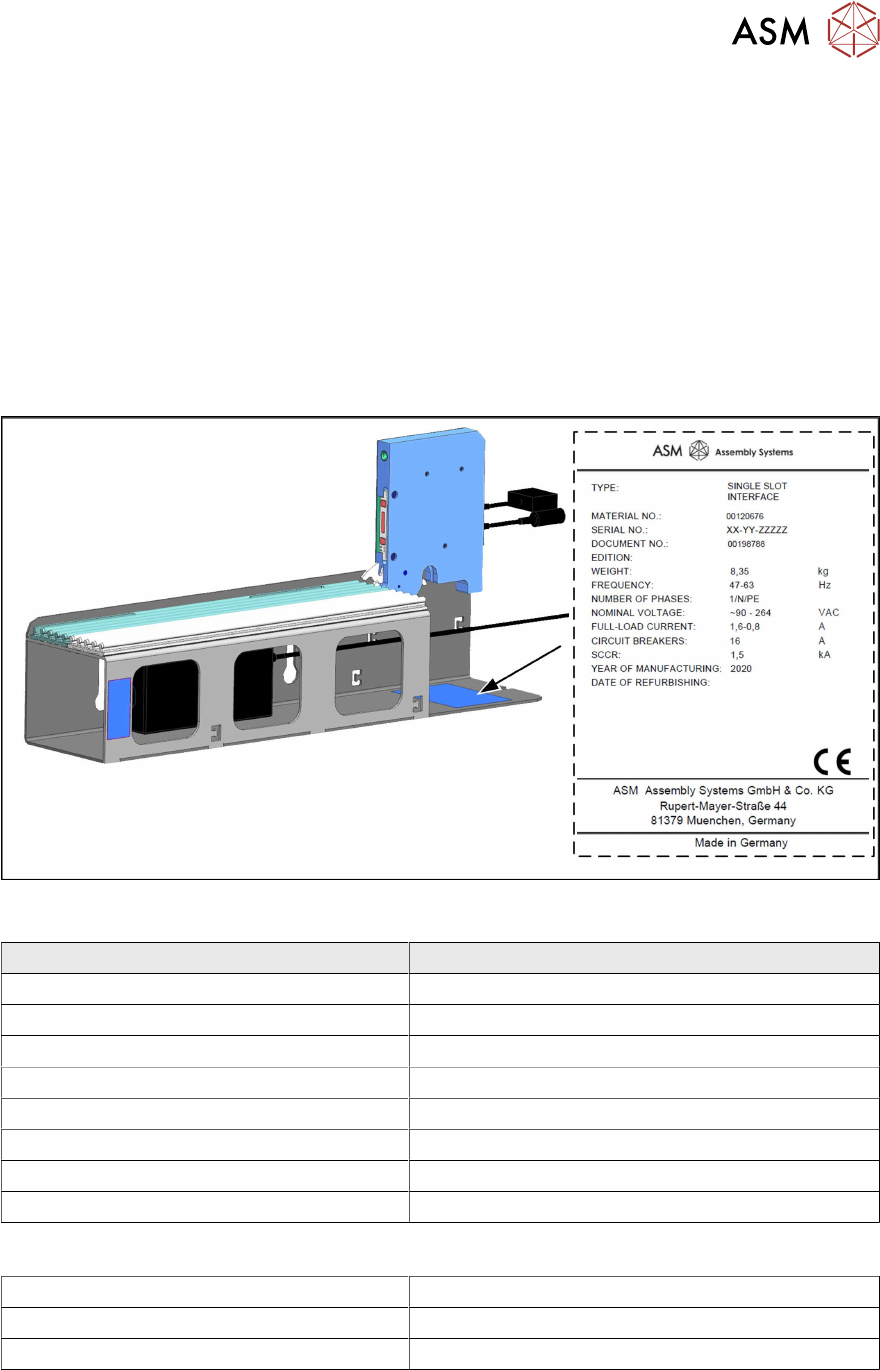

The typeplate with the serial number is located on the ground plate of the SSI frame (under the

EDIF).

1.1.2 Technical Data

SIPLACE X feeder SSI (Single Slot Interface)

Width x length x height 130mmx589mmx257.6mm

Weight 8.35kg

Frequency 47 – 63 Hz

Number of phases 1/N/PE

Nominal voltage ~90 – 264 VAC

Full load current 1.6 – 0.8 A

Circuit breaker 16 A

Short-circuit resistance 1.6 kA

Ambient conditions for packaging, transportation and storage

Temperature range -25°C to 55°C

Atmospheric humidity Up to 95 %

Ambient pressure Up to 1700m height without pressure equalization

1 Introduction

1.1 Module Description

36 User Manual / Bedienungsanleitung SIPLACE Single Slot Interface 05/2021

Ambient conditions for module operation

Temperature range 15°C to 35°C

Atmospheric humidity 30% to 75%

Ambient pressure > 750mbar

1.1.3 EU Declaration of Conformity

The product described below conforms to the regulations and standards listed in the EU Decla-

ration of Conformity provided.

Type Single Slot Interface

Item no.: 00120676-xx

Manufacturer:

ASM Assembly Systems GmbH & Co.KG

Rupert-Mayer-Str. 44

81379 Munich

Germany

1.1.4 Correct Usage

The product may only be used for its intended purposes as described in the catalogs and technical

descriptions, meaning for operation and troubleshooting of X feeder modules outside the place-

ment machine or a pre-setup area and only with the third-party equipment and components recom-

mended or permitted by ASM Assembly Systems GmbH & Co. KG.

Any other use is deemed to be incorrect and not as prescribed.

In the case of incorrect usage, ASMAssembly SystemsGmbH&Co.KG will not assume liability

for any damage which occurs and will not guarantee the correct and proper function of machine

components.

Prescribed or correct usage includes the observance of all the instructions in this user guide.

The proper and safe operation of the product requires correct transportation, storage, installation

and assembly, plus careful, accurate utilization and servicing.

1.1.5 Incorrect Usage

Failure to use the product as prescribed can result in both danger to life and limb and material

damage. For this reason, non-prescribed usage is prohibited. If the product is not used as pre-

scribed, ASM Assembly Systems GmbH & Co. KG will not accept liability for any damage that may

occur and will not guarantee that the components will work properly and without problems.

Non-prescribed use of the module includes the following examples:

●

The use of feeder modules that do not meet the permitted specification.

●

Use of unauthorized accessories and additional modules.

●

Use of the module by unqualified personnel.
