1-6 Tg1357-ID-SO [4] Motor It rotates the drum (rotational disk). [5] Syringe It supplies flux. [6] Needle It supplies flux on the drum (rotational disk). [7] Drawer Connector 1 It supplies power to this device and control…
1-5
Tg1357-ID-SO

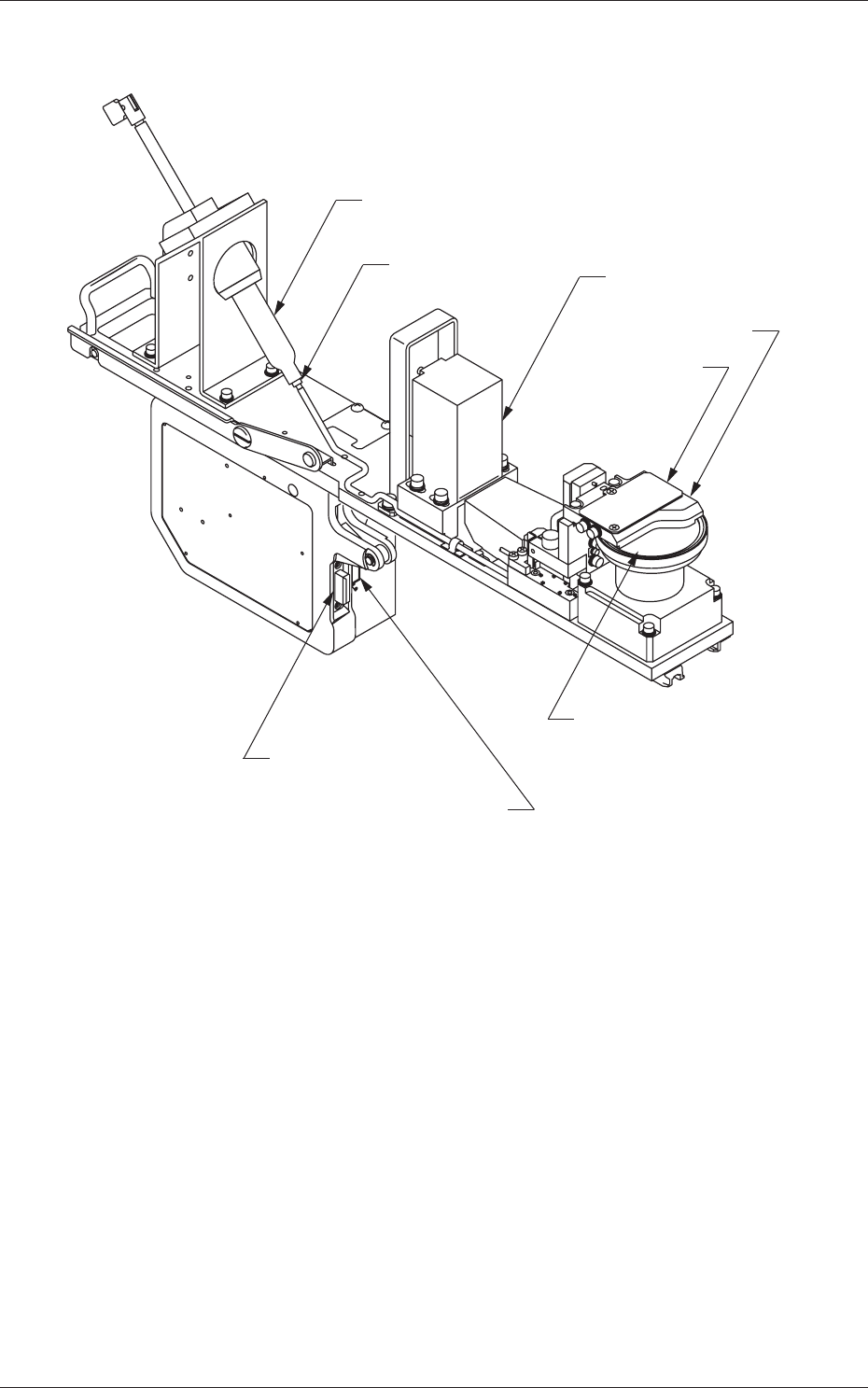

1.3 Names and Functions of Each Section
[5] Syringe
[6] Needle
[4] Motor
[3]
Transparent
Cover
[2] Squeegee
[1] Drum (Rotational Disk)
[7] Drawer Connector 1
[8] Drawer Connector 2
Fig.1
[1] Drum (Rotational Disk)
From this position flux is dispensed.
[2] Squeegee
It makes for an even flux coating thickness.
[3] Transparent Cover
It is a transparent cover for dustproofing.
0703-003
1.3 Names and Functions of Each Section
1-6
Tg1357-ID-SO
[4] Motor
It rotates the drum (rotational disk).
[5] Syringe
It supplies flux.
[6] Needle
It supplies flux on the drum (rotational disk).
[7] Drawer Connector 1
It supplies power to this device and controls the power to the main
machine (GXH Series).
Note
When the tape feeder power unit is used, connect the cable to the
drawer connector 1 on this machine.
[8] Drawer Connector 2
It supplies power to this device and controls the power to the main
machine (GXH Series).
0703-003
1.3 Names and Functions of Each Section
1-7
Tg1357-ID-SO
0703-003

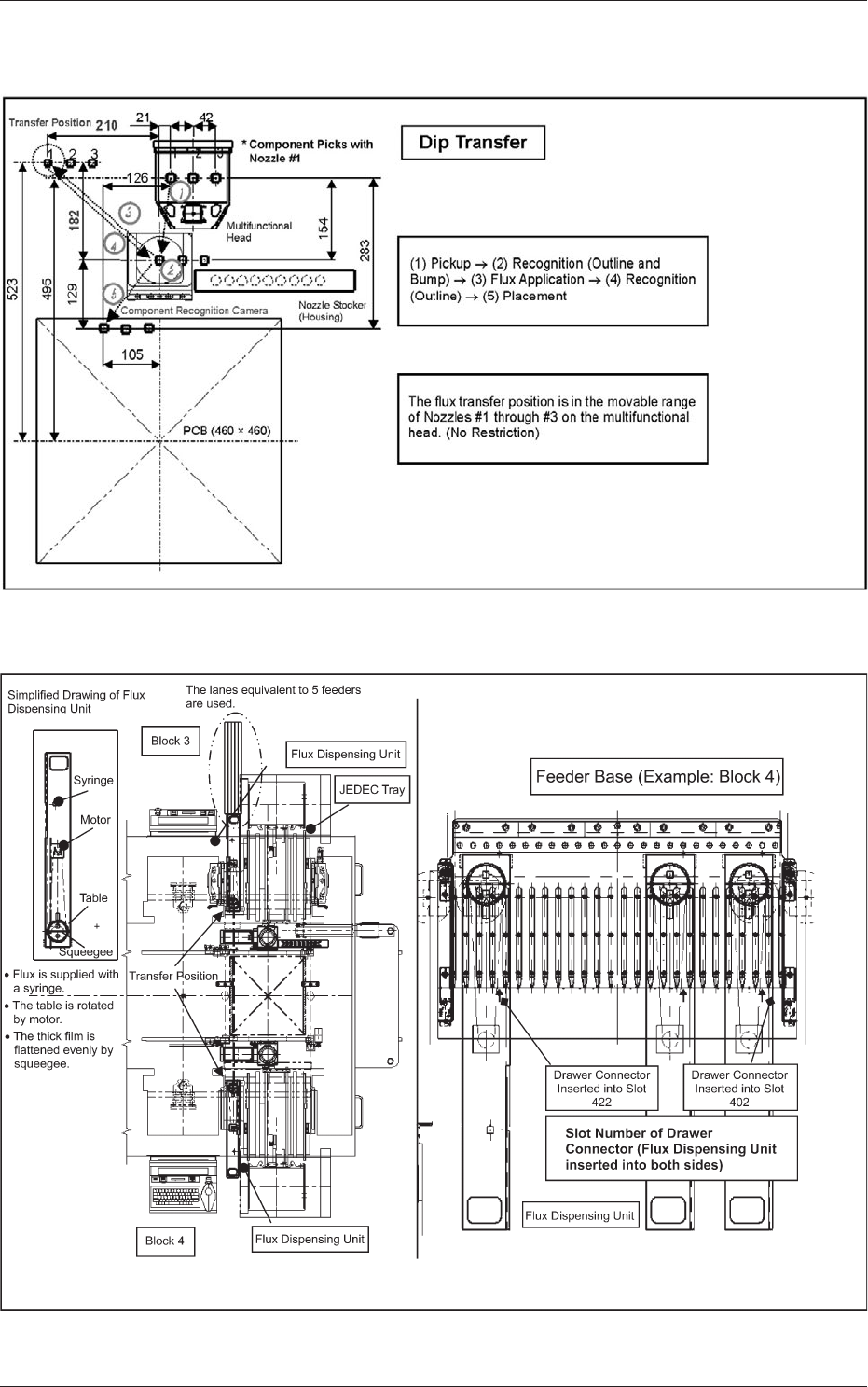

1.4 Structure and Names
Fig.2
Fig.3
1.4 Structure and Names
