3.3 Procedure for Syringe Replacement
The following describes how to replace a syringe with another one.
WARNING
Take as much care as possible not to allow flux on your skin
and wear protective gear, including gloves and mask when
necessary.
If by mistake you directly touch or drink it, it might so adversely
affect you as to harm you.
CAUTION
Flux is inflammable, so do not bring it close to any fire when
handling.

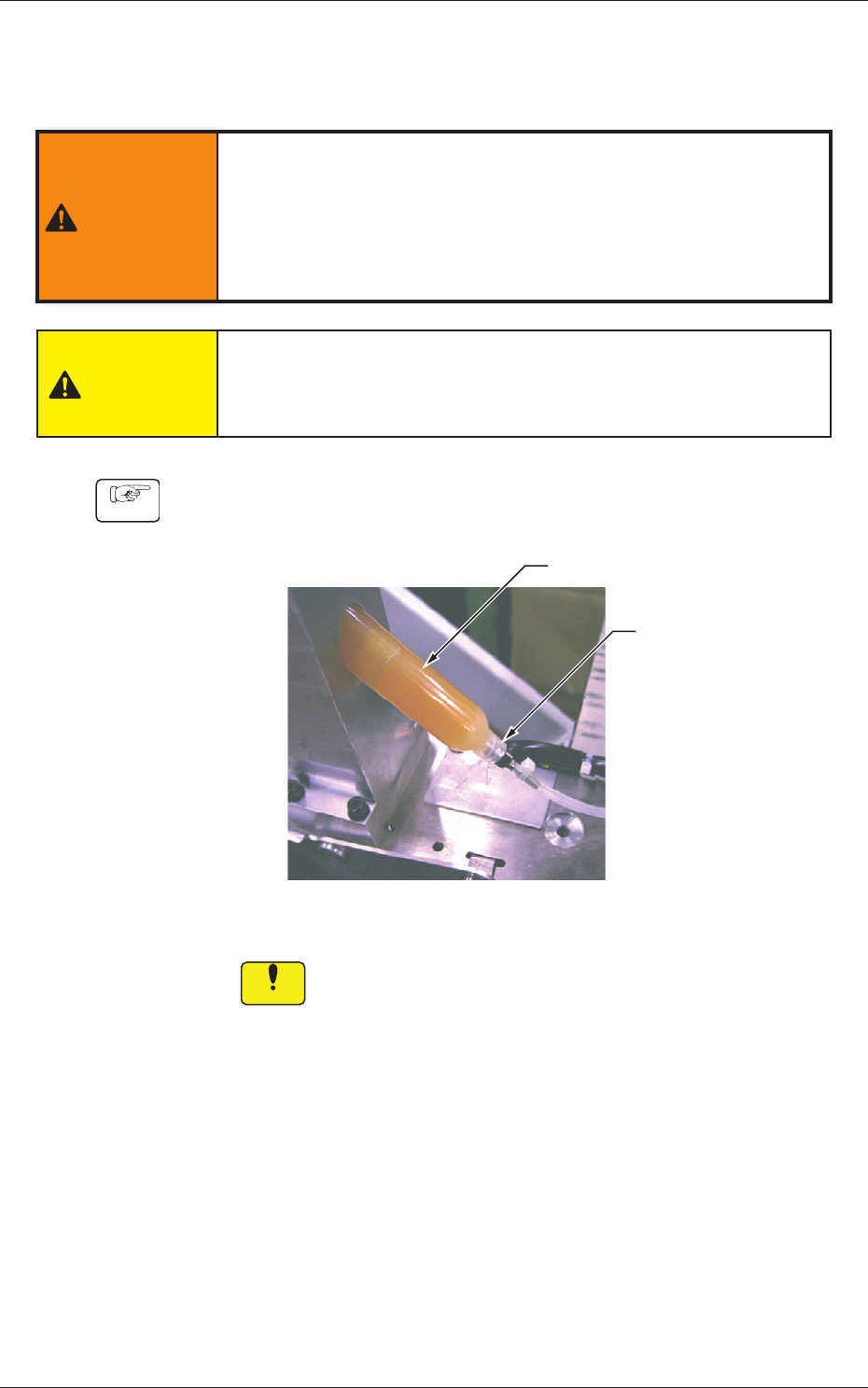

Procedure
(1) Detach the needle from the cylinder end.
Cylinder
Needle
Fig. 11
Notice
The needle is screwed into the end. Be sure not to pull it
out from the end.
3.3 Procedure for Syringe Replacement
3-5
Tg1357-ID-SO
0703-003
(2) Remove two screws fastening the cylinder.
Screws
Fig. 12
(3) Pull out the pushing rod from the cylinder.
Pushing Rod
Fig. 13
(4) Move the fixing plate of the detached pushing rod until it reaches
the end completely.
Fixing Plate Fixing Plate
Fixing Plate Location of
Detached Pushing Rod
Moved Fixing Plate Location
Fig. 13-1
3.3 Procedure for Syringe Replacement
3-6
Tg1357-ID-SO
0703-003
(5) Set up the cylinder to be replaced and insert it into the needle.
(6) Insert the pushing rod (with the fixing plate moved to the end)
into the cylinder.
Notice
Be sure to confirm that the fixing plate is completely
moved to the end before inserting the pushing rod.
If the fixing plate is not moved completely to the end
and the pushing rod is inserted, flux may leak out of
the cylinder.
(7) Tighten the two screws firmly to secure the fixing plate of the
pushing rod.
