5. Operation
5. Operation
5.1 "Operation" Menu
5.1.1 Selection of Operation Mode
The operation mode can be set up for the flux dispensing unit.
The "Flux App. Ope. Setup" group box is displayed in the "Opn. Mode"
window (eighth page).
[1]
[2]
[3]
Fig. 14 "Opn. Mode" Window (Eighth Page)
[1] "Flux App. Ope. Setup" Group Box
Rotation disk coutrol
It can be determined if loss of flux due to excessive rotations of the
drum should be reduced or not.
STOP
Select one of the following options to determine if the drum rotation
should be controlled or not when the unit is in the "STOP" mode.
Ope. Disable :
The drum rotation is not controlled.
Ope. Enable : The drum rotation is controlled.
Ope. Enbl (Intvl) :
The control action set in the "Intvl Setup" is performed.
RUN
Select one of the following options to determine if the drum rotation
should be controlled when the unit is running.
Ope. Disable :
The drum rotation is not controlled.
Ope. Enable : The drum rotation is controlled.
5-2
Tg1357-ID-SO
0703-003
Intvl setup
"Stop" and "Rotation" in the interval action during the machine stop,
are set.
[2] Dtctn of the comp left on rot disk
This section sets the detection mode when the component is left on the
drum (rotational disk).
Vac snsr
:
The detection is performed using the vacuum sensor.
Comp Rcg :
The detection is performed in the component
recognition test.
[3] Flux reload setup
This button sets whether the automatic flux reload is performed or not.
Disable :
Automatic flux reload is not performed.
Enable :
Automatic flux reload is performed.
Notice
The flux automatic suplly is not available in this unit
.
5.1 "Operation" Menu
5-3
Tg1357-ID-SO
0703-003
5.1.2 Selection of Test Mode
A test mode can be selected for the flux dispensing unit.
Open the "Test Mode" window (second page).

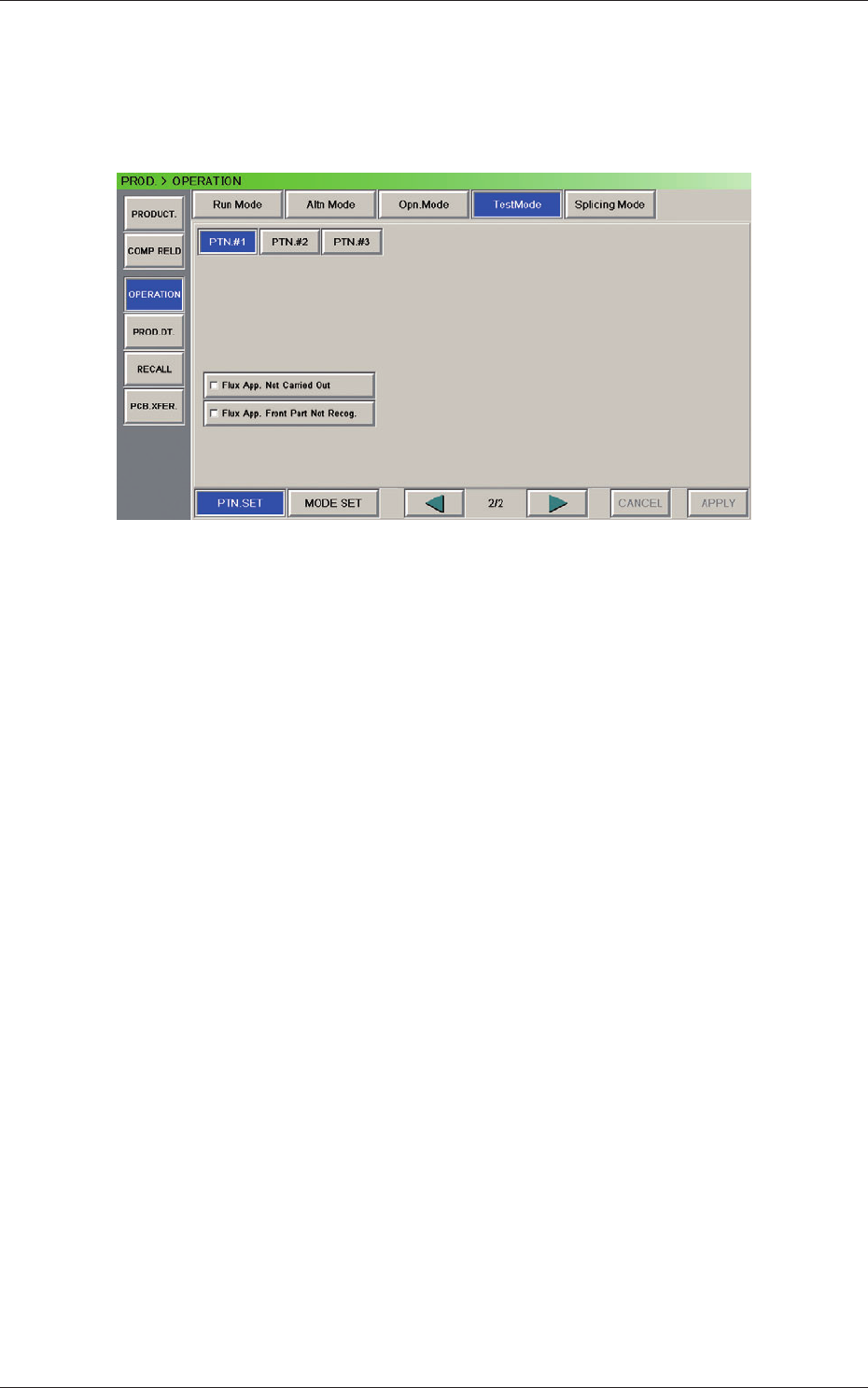

Fig. 15 "Test Mode" Window (Second Page)
Test Run Pattern
This section sets the test run contents.
The items related to the flux dispensing unit are as follows.
Flux App. Not Carried Out
Flux App. Front Part Not Recog.
