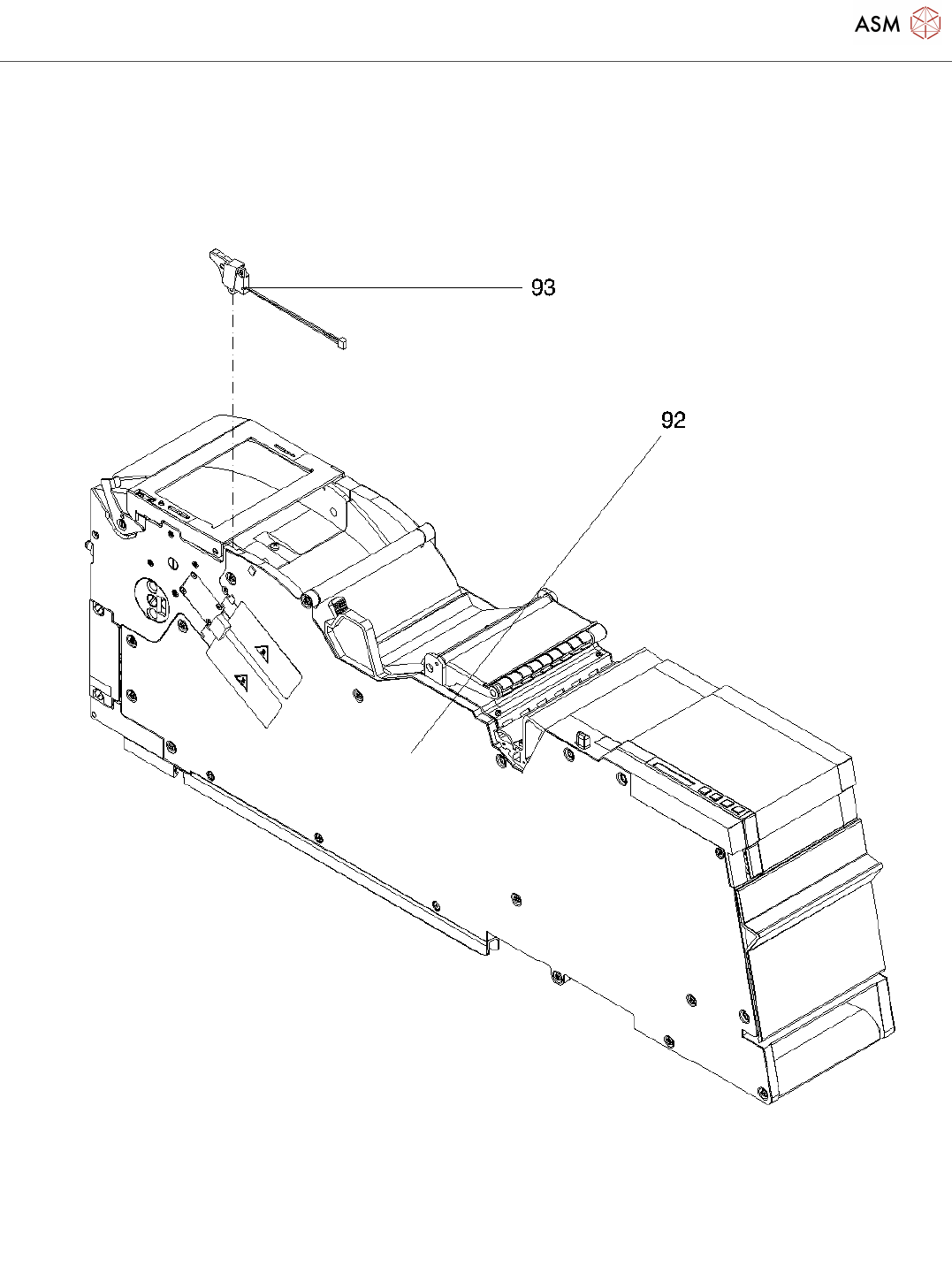

Tape feeder module 88mm X FS06 Page 10 / 13 18.11.2021 Pos. Item no. Description Part marking 1 00141278S06 TAPE FEEDER MODULE 88MM X 3 03021719-06 TAPE FEEDER MODUL 88MM X 4 03003994S01 SLIDE GUIDE /REAR L200 SPARE PART…

100%1 / 13
Tape feeder module 88mm X FS06
Page 9 / 13 18.11.2021
Tape feeder module 88mm X FS06
Page 10 / 13 18.11.2021
Pos. Item no. Description Part marking
1 00141278S06 TAPE FEEDER MODULE 88MM X
3 03021719-06 TAPE FEEDER MODUL 88MM X
4 03003994S01 SLIDE GUIDE /REAR L200 SPARE PART
03032819S01 CABLE /IRDA - EDIF SECONDARY SPARE PART
03006814-01 CABLE SENSOR FOIL ROCKER SPARE PART
03006815-01 CABLE SENSOR REMOVAL HANDLE SPARE PART
8 03021701-02 MOTORMOUNT WITH PICKUP
WINDOW X88
9 03020730-02 DRIVE W. ATTACHMENTS /X16-88
10 03012822-07 DRIVE KPL. X16-88
11 03012824-04 ENGINEMOUNTING PRE-ASSEMBLED
/X16
12 03005196-01 ROLL, LOCKING X-SERIES SPARE PART
13 00359779-01 DIN 6325 - 3M6 X 10-ST
14 00326589-01 DIN 965-M3 X 10-A2
15 00349527-01 ROUND MAGNET 3X4 NEODYMIUM SPARE PART
16 03019604S01 SLIDING FOIL X-FEEDER SPARE PART
17 03058808S01 SLIDING GUIDE SPARE PART
00344017-02 BEARING SCREW
19 03023216-01 ISO 7046-2-M2 X 4-A2-70-H
20 03012488-01 SN 213307-H-M2 X 2.5-A2
21 03011739S03 ENERGY-DATA INTERFACE CPL. /X-
SERIES
SPARE PART
22 03020291S03 LEVER /OPENER TAPE SLIDER
X16-88
SPARE PART
23 03010185S01 ROTARY SLIDE / COMPONENTS
DISPOSAL X8
SPARE PART
24 03013678S03 PCB/EDIF SECONDARY IRDA BOARD Spare Part
25 03020557S01 EJECTOR SPARE PART
26 03050825-01 HOLDING SCREW WEAR PART
27 03050957-01 SHOULDER BOLT DIA4X3.15 M3 SPARE PART
28 03012683-01 COMPRESSION SPRING D-027 SPARE PART
29 03018028-01 CURVED SPRING WASHER FS3X4,5
30 03023216-01 ISO 7046-2-M2 X 4-A2-70-H
31 03042524-01 ISO 4762 - M 2 X 5-A2-70 STANDARD PARTS
32 03021600-01 TAPE SHOULDER RIGHT SIDE
COMPL. /X88
Tape feeder module 88mm X FS06
Page 11 / 13 18.11.2021
Pos. Item no. Description Part marking
33 03021264-01 SCREW / BEARING PICK-UP
WINDOW X16-88
STANDARD PARTS
34 03020562S01 HOLDER / CLIP PICK-UP WINDOW
X16-88
SPARE PART
35 00326587-01 DIN 965-M2 X 5-A2
36 03021264-01 SCREW / BEARING PICK-UP
WINDOW X16-88
STANDARD PARTS
37 03021235S02 PICK-UP WINDOW CPL. X88 SPARE PART
38 03042235S03 FOIL DISPOSAL COMPLETE /X88 Spare Part
39 03042535-01 ISO 4762 - M 2,5 X 10-A2-70 STANDARD PARTS
40 03042233-01 TAMP WHEEL KNURLED CPL./FOIL
DISPOS. X88
41 03042234S01 STRIPPING SHEET METAL /FOIL
DISPOSAL X88
SPARE PART
42 03023216-01 ISO 7046-2-M2 X 4-A2-70-H
43 00318387-01 SN 213307-H-M2 X 3-A2
44 03043064-01 TRANSMISSION STEP 1 /FOIL
DISPOSAL X8-88
SPARE PART
45 03042536-01 ISO 4762 - M 2,5 X 12-A2-70 STANDARD PARTS
46 03012488-01 SN 213307-H-M2 X 2.5-A2
47 03023228-01 ISO 7046-2-M2,5 X 6-A2-70-H STANDARD PARTS
48 03050825-01 HOLDING SCREW WEAR PART
49 03043774-01 ADJUSTMENT WASHER /D3.1 D15
T0,1
STANDARD PARTS
50 03042532-01 ISO 4762 - M 2,5 X 5-A2-70 STANDARD PARTS
51 03010415S01 TENSION SPRING Z-051GX SPARE PART
52 03055660S01 FOIL WING CPL. /X88 PSA Spare Part
53 03022174S01 BOLT /FOIL DISPOSAL X88 SPARE PART
54 03055659-01 FOLDING PULLEY /X88 PSA
55 00326587-01 DIN 965-M2 X 5-A2
56 03055650S01 FILLING CLIP /16-88 PSA 10 PCS SPARE PART
57 03050686S02 MOTOR CPL. /FOIL DISPOSAL X-
SERIES
SPARE PART
58 03042231-01 FOIL CASE COMPLETE /X88
59 03009198S01 HANDLE CPL. / X-SERIES Spare Part
60 03002629-01 CONTROL PANEL COMPLETE /X-
SERIE
61 03002644S01 WINDOW /CONTROL PANEL SPARE PART
