维修与维护 3-19 12 ~16 mm Part List Q'TY NO. PART NO. PART NAME TYPE 12mm 16mm 1 J90600366B IT SLAVER BOARD IT REV-2.03 1 1 J90600367C IT SLAVER BOARD NON-IT REV-1.5 1 1 2 J90650210B PROBE_CABLE_ASSY_1216_IT SM1-MF12-2…
三星
SM-Series
气动带式喂料器
的操作手册
3-18

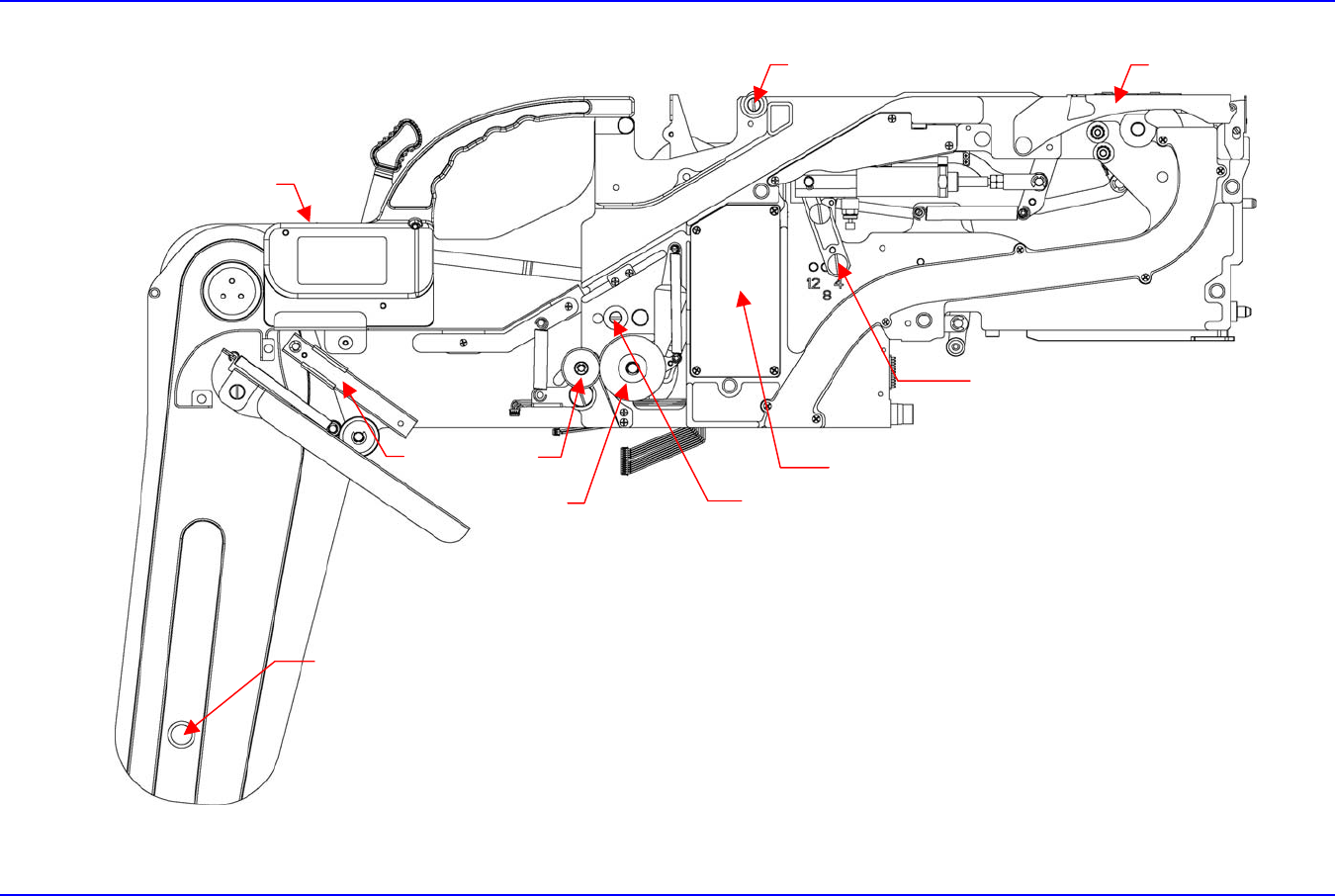

Rear
(13)
(5)
(3)
(7)
(14)
(15)
(4)
(17)
(16)
维修与维护
3-19
12 ~16 mm Part List
Q'TY
NO.
PART NO. PART NAME TYPE
12mm 16mm
1
J90600366B IT SLAVER BOARD IT REV-2.03 1 1
J90600367C IT SLAVER BOARD NON-IT REV-1.5 1 1
2
J90650210B PROBE_CABLE_ASSY_1216_IT SM1-MF12-217 1 1
J90650281B PROBE_CABLE_ASSY_1216_NONIT SM1-MF12-221 1 1
3
J70652273A LEVER_SHAFT2 J70652273A 2 2
4
J72651136A VINYL_ROLLER_3 J72651136A 1 1
5
J90651445A TAPE_GUIDE_ASSY J90651445A 1
J90651446A TAPE_GUIDE_ASSY J90651446A 1
6
J90651471A CYLINDER_ASSY J90651471A 1 1
7
J90651542A DRAIN_GEAR_ASSY J90651542A 1 1
8
J91671830A INDEXING_SENSOR_ASSY J91671830A 1 1
9
J70650978C INSTALL-GUIDE1 SM1-MF08-040R2 1 1
10
J70660001B T-LINK4-SHAFT1 SM1-MF08-064R1 1 1
11
J70660008C T-LINK1-SHAFT1 SM1-MF08-071R2 1 1
12
J90650181B T LINK2 ASSY SM1-MF08-224R1 1 1
13
J90650280C FEEDING_SWITCH_ASSY_NONIT_105 SM1-MF08-231R2 1 1
14
J9065203A FORMING GEAR ASSY SM1-MF12-211 1 1
15
J9065092A REEL STOPPER ASSY SM1-MF12-213 1 1
16
J72650164B VINYL ROLLER SM1-MF16-036R 1 1
17
J7065810A REEL ARM POST TF12-N241 1
J7065825A REEL ARM POST TF16-N241 1
18
J90651480A CLAMP_SWITCH_CABLE_ASSY J90651480A 1 1
19
J7066047A FLAT HEAD CAP SCREW-H4.4 SM1-MF08-132 30 28
