Maintenance Parts 13 Conveyor Unit Edge Clamp No. Part No. Part Name Q'ty Remarks Ran k 1 KV7-M9269-02X CYLINDER 2 B 2 KM5-M655F-10X SENSOR 1-3 1 B 1 2 JUL./2003
Maintenance Parts
12
Conveyor Unit
Stopper
No. Part No. Part Name Q'ty Remarks Rank
1 KU0-M655F-20X SENSOR 1-3 2 B
2 KV7-M9283-00X CYLINDER 2 YMDA 16X35 B
3 KV7-M9165-01X CYLINDER 1 PDAS 6X40 B
1
2
1
3
Sub Stopper,Moving
Main Stopper
1
1
2
1
2
1
Sub Stopper,FIX.(Option)
EXIT Stopper
JUL./2003
Maintenance Parts
13
Conveyor Unit

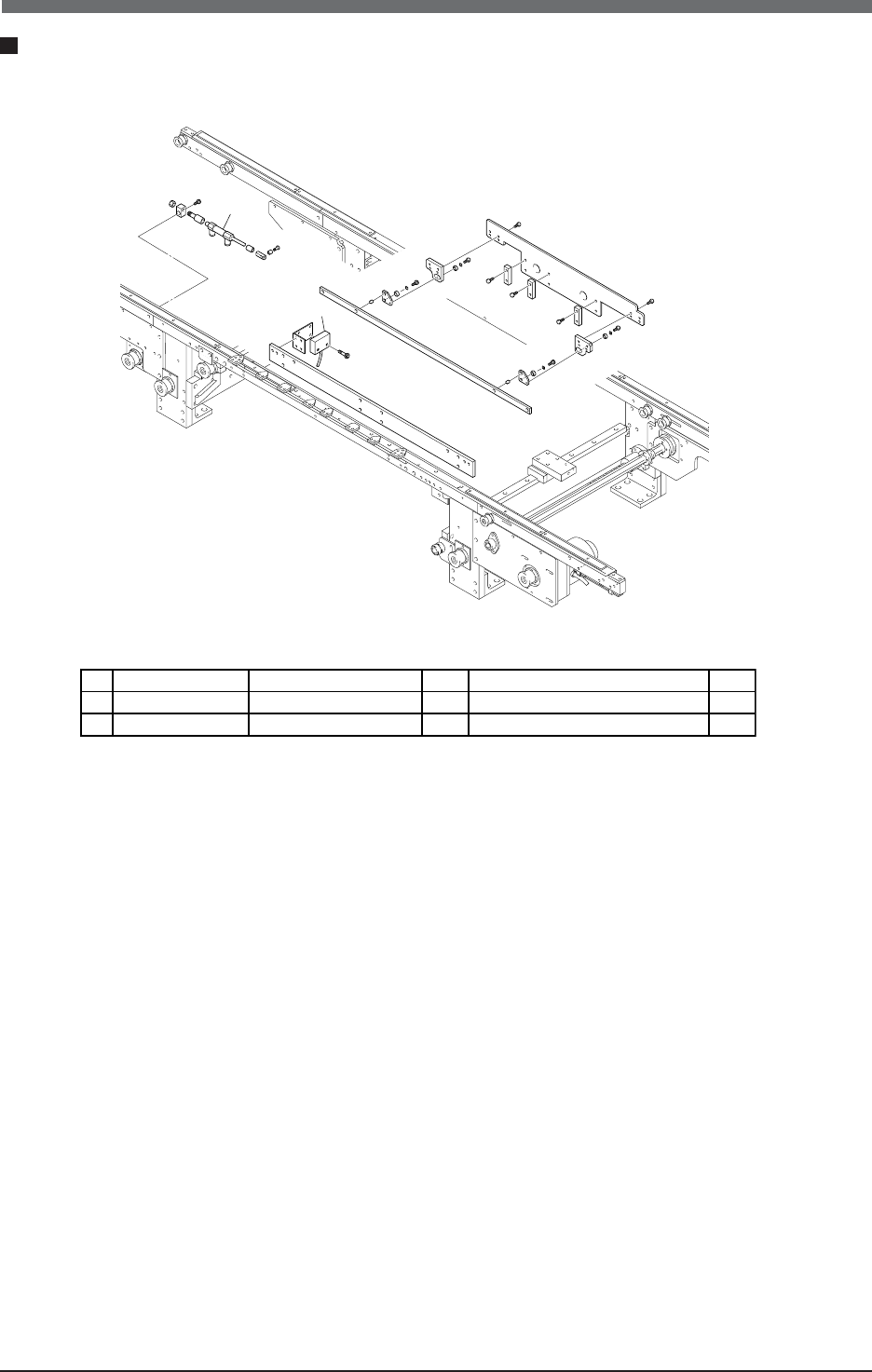

Edge Clamp
No. Part No. Part Name Q'ty Remarks Rank
1 KV7-M9269-02X CYLINDER 2 B
2 KM5-M655F-10X SENSOR 1-3 1 B
1
2
JUL./2003
Maintenance Parts
14
Conveyor Unit

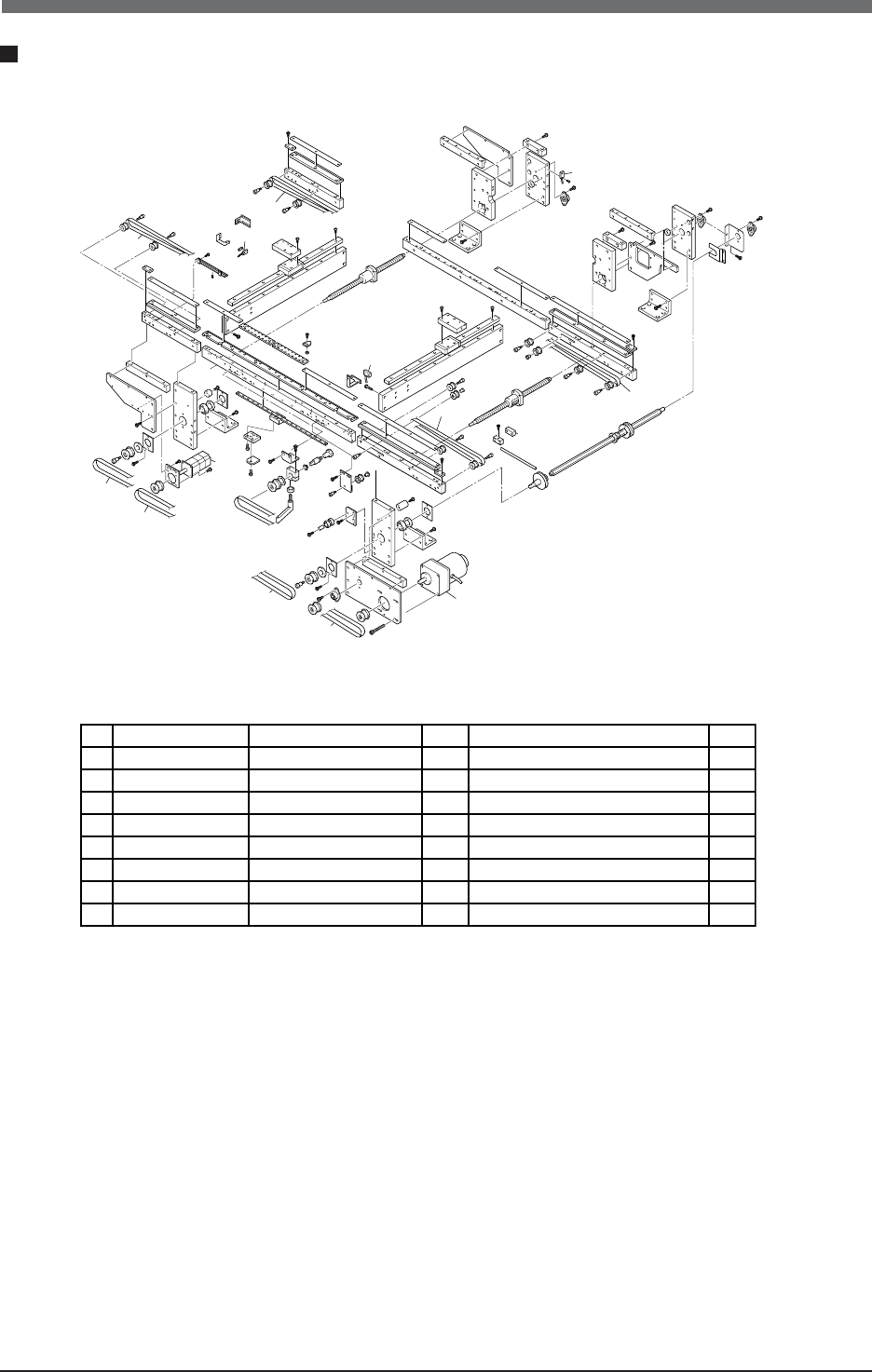

Main Conveyor
No. Part No. Part Name Q'ty Remarks Rank
1 KW7-M9129-00X BELT 1,CONVEYOR 2 A
2 KV7-M4886-00X MOTOR ASSY. 1 CONV.MO B
3 KM0-M655F-10X SENSOR,1-3 1 B
4 KU0-M655F-20X SENSOR 1-3 2 B
5 KV7-M9146-00X BELT 2 300-3GT-9 A
6 90K55-4W076W AC SERVO MOTOR 1 B
7 KW7-M9115-00X BELT W AXIS 1 A
8 KV7-M653A-20X SENSOR 1 ASSY. 1 B
8
4
3
1
4
1
2
5
7
5
7
6
1
1
