1 Maintenance P arts ■ Base 4 3 2 1 2 1 No. Part No. Part Name Q'ty Remarks Rank 1 KG7-M8501-40X AIR FIL TER ELEMENT 1 CRK554 (ELEMENT) A 2 KG7-M8502-40X MIST FIL TER ELEMENT 1 CRK556 (ELEMENT) A 3 KG7-M8501-00X AIR…
NOTE
Rank A : The functions of these parts gradually deteriorate with operating time.
Rank B : The machine stops immediately if the functions of these parts are disabled.
Rank C : The machine still operates even if the functions of these parts are
disabled, because there are many parts.
Q'ty : The number of identical parts used in one machine.
CONTENTS
Maintenance Parts
Base..................................................................................................................... 1
Feeder Holder......................................................................................................1
X-axis .................................................................................................................. 2
Y-axis....................................................................................................................2
Head....................................................................................................................3
4M .................................................................................................................. 3
SS.....................................................................................................................4
FF.....................................................................................................................5
Nozzle .................................................................................................................6
4M .................................................................................................................. 6
FF, SS............................................................................................................... 6
Nozzle Changer .................................................................................................. 7
4M .................................................................................................................. 7
FF, SS............................................................................................................... 8
Conveyor Unit......................................................................................................9
Push-In............................................................................................................ 9
Push-Up........................................................................................................ 10
Locate-pin ..................................................................................................... 11
Stopper ........................................................................................................ 12
Edge Clamp....................................................................................................13
Main Conveyor.............................................................................................. 14
Camera ............................................................................................................ 15
Multi Camera / Light ..................................................................................... 15
Controller........................................................................................................ 16
System C/R Box............................................................................................ 16
1
Maintenance Parts
■
Base
4
3
2
1
2
1
No. Part No. Part Name Q'ty Remarks Rank
1 KG7-M8501-40X AIR FILTER ELEMENT 1 CRK554 (ELEMENT) A
2 KG7-M8502-40X MIST FILTER ELEMENT 1 CRK556 (ELEMENT) A
3 KG7-M8501-00X AIR FILTER 1 /
4 KG7-M8502-00X AIR FILTER 1 /
No. Part No. Part Name Q'ty Remarks Rank
1 KG2-M3407-A0X AIR JOINT 20 A
2 KGA-M37P0-00X VALVE KIT 1 SPARE C
■
Feeder Holder
Maintenance Parts
2

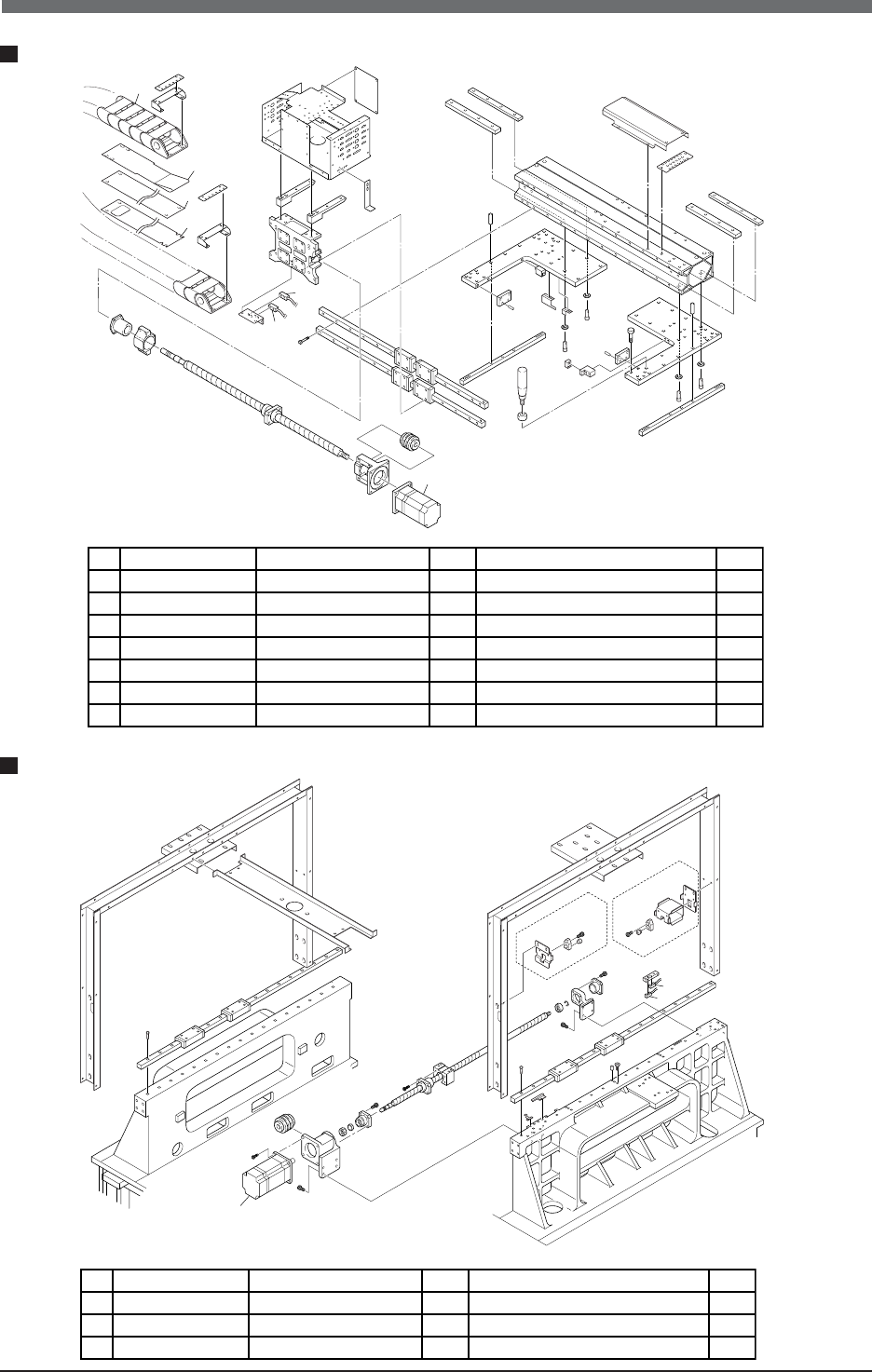

X-axis
No. Part No. Part Name Q'ty Remarks Rank
1 90K56-8717EX AC SERVO MOTOR 1 B
2 KV7-M653A-60X SENSOR,1 ASSY 1 E2S-W22(ORG.) B
3 KV7-M653E-20X SENSOR,2 ASSY 1 E2S-W22B(2nd LIMIT) B
4 KW7-M2267-00X CABLE DUCT 1 B
5 KW7-M220A-00X TAPE,X DUCT 1 B
6 KW7-M220B-00X TAPE 2,X DUCT 1 B
7 KW7-M220C-00X TAPE 3,X DUCT 1 B
4
2
3
6
5
7
1
Y-axis
No. Part No. Part Name Q'ty Remarks Rank
1 KV7-M653A-20X SENSOR,1 ASSY 1 L=300 B
2 KV7-M653E-10X SENSOR,2 ASSY 1 L=300 B
3 90K56-87174Y AC SERVO MOTOR 1 B
1
3
2
JUL./2003
