5. Spindle Adjustment
5 - 38
The default orientation control parameters for each detector are as shown below. Confirm that these
parameters are correctly set according to the machi ne specifications.
Default parameter settings for detector in use
No. Abbr. Parameter name
(a) Motor PLG
(b) Spindle end
detector
(c) Magnetic
sensor
SP001 PGM
Magnetic sensor and motor PLG orientation position
loop gain
100 - 100
SP002 PGE Encoder orientation position loop gain - 100 -
SP004 OINP Orientation in-position width 16 16 16
SP005 OSP* Orientation mode speed clamp value 0 0 0
SP006 CSP Orientation mode deceleration rate 20 20 20
SP007 OPST In-position shift amount for orientation 0 0 0
SP025 GRA1* Spindle gear teeth count 1 1 * *
SP026 GRA2* Spindle gear teeth count 2 1 * *
SP027 GRA3* Spindle gear teeth count 3 1 * *
SP028 GRA4* Spindle gear teeth count 4 1 * *
SP029 GRB1* Motor shaft gear teeth count 1 1 * *
SP030 GRB2* Motor shaft gear teeth count 2 1 * *
SP031 GRB3* Motor shaft gear teeth count 3 1 * *
SP032 GRB4* Motor shaft gear teeth count 4 1 * *
SP037 SFNC5* Spindle function 5 0004 0001 0002
SP096 EGAR* Encoder gear ratio - * -
SP097 SPECO* Orientation specification 0000 0000 0000
SP098 VGOP*
Speed loop gain proportional term in orientation
mode
63 63 63
SP099 VGOI* Speed loop gain integral term in orientation mode 60 60 60
SP100 VGOD*
Speed loop gain delay advance term in orientation
mode
15 15 15
SP101 DINP* Orientation advance in-position width 16 16 16
SP102 OODR* Excessive error value in orientation mode 32767 32767 32767
SP103 FTM* Index positioning completion OFF time timer 200 200 200
SP104 TLOR* Torque limit value after orientation completed 100 100 100
SP105 IQGO* Current loop gain magnification 1 in orientation mode 100 100 100
SP106 IDGO* Current loop gain magnification 2 in orientation mode 100 100 100
SP107 CSP2 Deceleration rate 2 in orientation mode 0 0 0
SP108 CSP3 Deceleration rate 3 in orientation mode 0 0 0
SP109 CSP4 Deceleration rate 4 in orientation mode 0 0 0
SP114 OPER Orientation pulse miss check value 0 0 0
SP115 OSP2 Orientation control speed clamp value 2 0 0 0
SP116 OPYVR
Minimum excitation value after changeover
(2nd minimum excitation rate)
0 0 0
SP117 ORUT Fixed control constant 0 0 0
SP118 ORCT Orientation control number of retry times 0 0 0
SP119 MPGH
Orientation control position loop gain H coil
magnification
0 0 0
SP120 MPGL
Orientation control position loop gain L coil
magnification
0 0 0
SP121 MPCSH Orientation deceleration rate H coil magnification 0 0 0
SP122 MPCSL Orientation deceleration rate L coil magnification 0 0 0
SP123 MGD0 Magnetic sensor output peak value - -
Standard: 542
Small type: 500
SP124 MGD1 Magnetic sensor linear zone width - -
Standard: 768
Small type: 440
SP125 MGD2 Magnetic sensor changeover point - -
Standard: 384
Small type: 220
(Note 1) *: Set according to machine specifications, -: Setting irrelevant
(Note 2) Parameters with an asterisk in the Abbrev. column (such as OSP*) are validated when the NC power is turned ON
again.
5. Spindle Adjustment
5 - 39
Default parameter settings for detector in use
No. Abbr. Parameter name
(a) Motor PLG (b) Spindle detector
(c) Magnetic
sensor
SP126 MPGM Orientation position loop gain M coil magnification 0 0 0
SP127 MPCSM Orientation deceleration rate M coil magnification 0 0 0
SP128 OXKPM
After orientation completion,
Position loop gain magnification
(M coil)
0 0 0
SP225 OXKPH
Position loop gain magnification after orientation
completed (H coil)
0 0 0
SP226 OXKPL
Position loop gain magnification after orientation
completed (L coil)
0 0 0
SP227 OXVKP
Speed loop proportional gain magnification after
orientation completed
0 0 0
SP228 OXVKI
Speed loop cumulative gain magnification after
orientation completed
0 0 0
(Note 1) *: Set according to machine specifications, -: Setting irrelevant
(Note 2) Parameters with an asterisk in the Abbrev. column (such as OSP*) are validated when the NC power is turned ON
again.
5. Spindle Adjustment
5 - 40

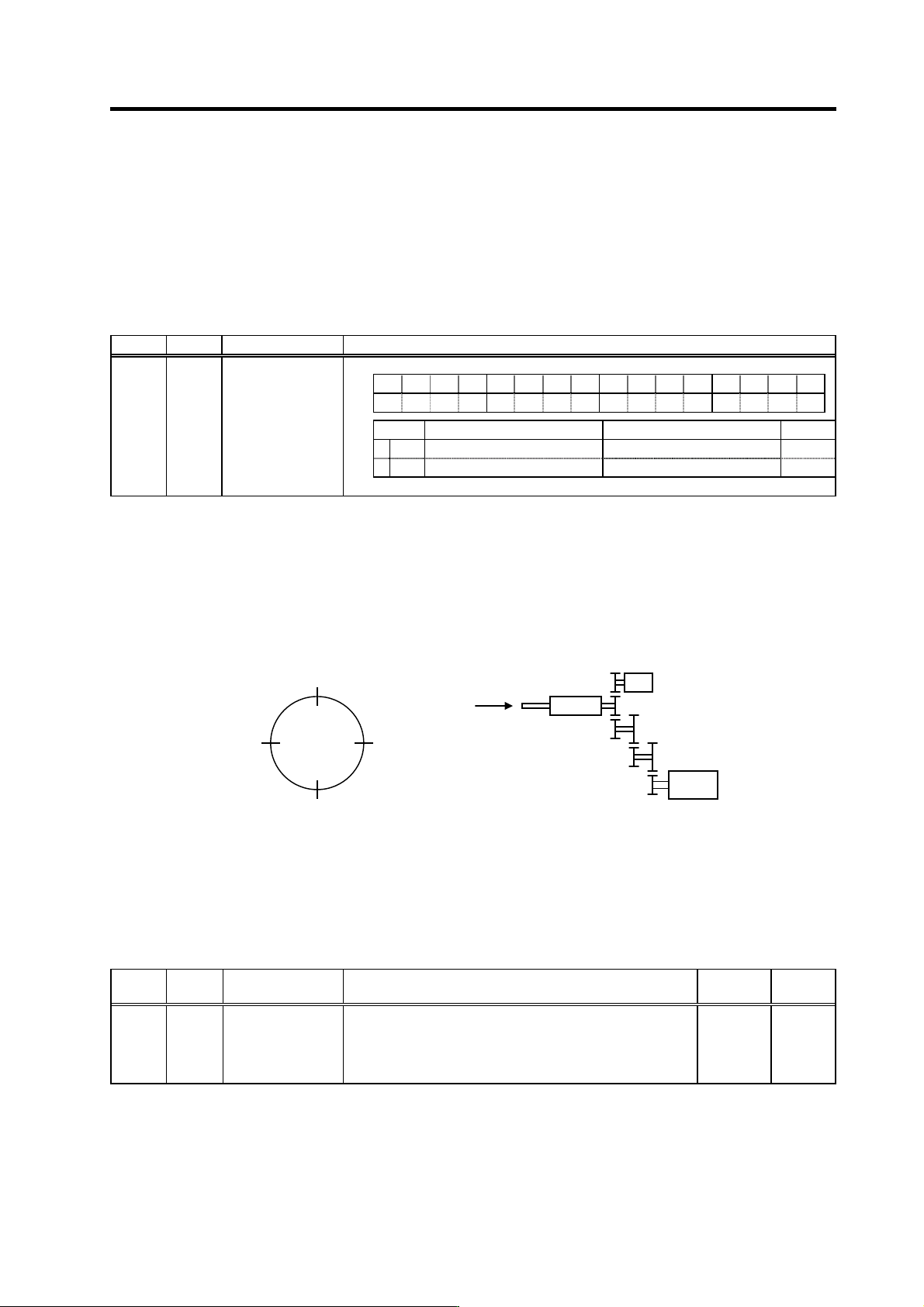

(2) Adjusting the orientation deceleratio n control
[1] Polarity setting of sensor
Input the orientation command (ORC) when the machine is in the normal state. Confirm that the
operation stops at one point and the orientation complete signal (ORCF) turns ON even when
the operation is unstable. If the excessive error alarm (alarm 52) o ccurs, or if the operation does
not stop and repeats forward/reverse run at a low-speed when using the magnetic sensor
orientation specifications, change the value for SP097/bit5 or bit6. If the excessive error alarm
occurs even after changing this value, carry out step [3].
No. Abbr. Parameter name Details
FEDCBA98765 4 3 2 10
ostp orze ksft gchg ips2 zdir vg8x mdir fdir Oscl pyfx dmin odi2 odi1
bit Meaning when set to 0 Meaning when set to 1 Standard
5 fdir Spindle end detector polarity: + Spindle end detector polarity: – 0
6 mdir Magnetic sensor polarity: + Magnetic sensor polarity: – 0
SP097 SPECO* Orientation
specification
[2] Adjustment of orientat ion stop position
Next, adjust the in-position shift amount for orientation control: SP007 (OPST) so that the axis
stops at the target stop point. If the stop position command data is input from the spindle end
detector, or from an external source during motor PLG orientation, the operation will stop
according to the given data as shown in the drawing below regardless of the detector's
mounting direction. The 0° position sh own below is the position shifted by SP007 (OPST).
Orientation stop position
(Note) The external stop position command data is read in at the rising edge of the orientation start, so
always change the value before inputting the orientation start command. Any changes to the value
will be invalid if made after orientation has started.
No. Abbr. Parameter name Details
Setting
range
Standard
SP007 OPST In-position shift
amount for
orientation
Set the stop position for orientation.
(1) Motor PLG, spindle end detector:
Set the value by dividing 360° by 4096.
(2) Magnetic sensor:
Divide –5° to +5° by 1024 and put 0° for 0.
(1) 0 to 4095
(2) -512 to
512
0
View S
0h
(0°)
400h
(90°)
800h
(180°)
C00h
(270°)
S
p
indle end detecto
r
XS
p
indle
Spindle motor
A
BC
DE
F
S
