FES20_PL.pdf - 第8页
0003 20NS El Front L 3 2 El 9 2 6 5 10 10 1 3 8 4 7 11 8 N o . Part No. Part Name Q'ty R e m arks Date Revised No. 1 KV7-M3485-10X GUIDE, UNDER 1 1 2 KV7-M3487-01X STAY, UNDER 1 1 3 KM9-M3490-00X STAY, SENSOR 4 1 4 …
1
3

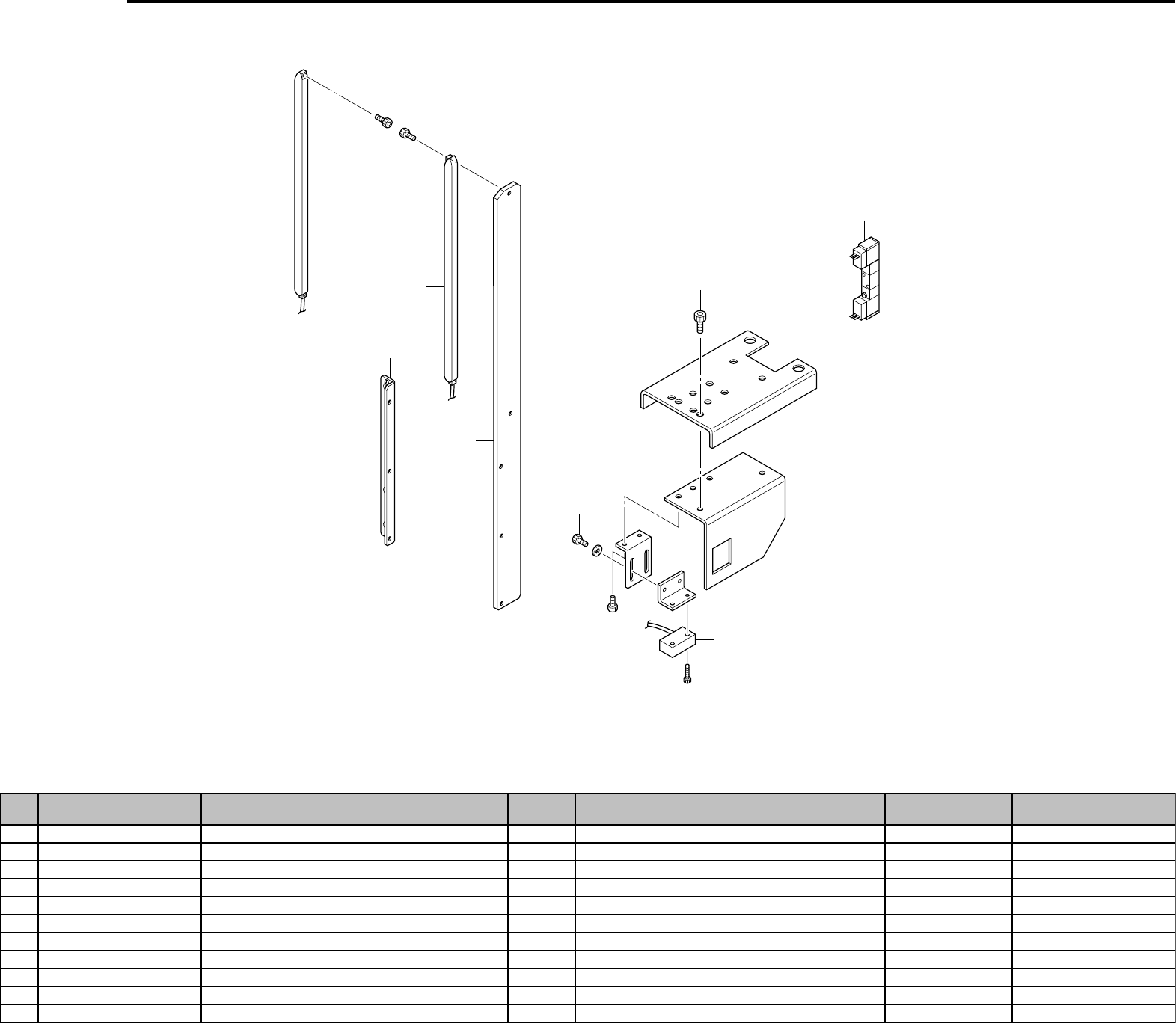

20NS El Front R
El
FES20-0003
7
6
5
8
9
1
10
4
12
11
2
3
8
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KV7-M3485-00X GUIDE, UNDER 1 1
2 KV7-M3487-01X STAY, UNDER 1 1
3 KM9-M3489-00X STAY, SENSOR 3 1
4 KM9-M3490-00X STAY, SENSOR 4 1
5 KV8-M37N1-00X PLATE 1
6 KV8-M37N2-00X BRACKET, R 1
7 KM8-M3483-00X VALVE 1
8 KV8-M655E-01X SENSOR, ASSY 1
9 91317-05010 BOLT HEX, SOCKET HEAD 3
10 91317-04010 BOLT HEX, SOCKET HEAD 4
11 91317-03016 BOLT HEX, SOCKET HEAD 2
12 KV8-M655A-00X SENSOR, 1-1 ASSY 1
0003
20NS El Front L
32
El
9
2
6
5
10
10
1
3
8
4
7
11
8
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KV7-M3485-10X GUIDE, UNDER 1 1
2 KV7-M3487-01X STAY, UNDER 1 1
3 KM9-M3490-00X STAY, SENSOR 4 1
4 KV8-M37N1-00X PLATE 1
5 KV8-M37N3-00X BRACKET, R 1
6 KM8-M3483-00X VALVE 1
7 KV8-M655A-00X SENSOR, 1-1 ASSY 1
8 KV8-M655E-01X SENSOR, 1-2 ASSY 2
9 91317-05010 BOLT HEX, SOCKET HEAD 3
10 91317-04010 BOLT HEX, SOCKET HEAD 4
11 91317-03016 BOLT HEX, SOCKET HEAD 2
0003
20NS El Rear R
33
El
9
1
10
3
4
11
7
6
5
2
8
8
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KV7-M3485-00X GUIDE, UNDER 1 1
2 KM9-M3489-00X STAY, SENSOR 3 1
3 KM9-M3490-00X STAY, SENSOR 4 1
4 KV8-M37N1-10X PLATE 1
5 KV8-M37N2-10X BRACKET, R 1
6 KM8-M3483-00X VALVE 1
7 KV8-M655A-00X SENSOR, 1-1 ASSY 1
8 KV8-M655E-01X SENSOR, 1-2 ASSY 2
9 91317-05010 BOLT HEX, SOCKET HEAD 3
10 91317-04010 BOLT HEX, SOCKET HEAD 4
11 91317-03016 BOLT HEX, SOCKET HEAD 2
