1 4 Reel Holder Assy Reel Holder FES20-1005 3 6 4 5 13 12 1 1 1 1 7 8 16 16 19 19 19 18 19 19 18 18 18 18 16 16 16 16 2 18 18 16 16 1 1 1 1 1 1 1 1 20 20 1 1 10 10 10 10 20 16 16 9 20 1 1 5 5 15 14 1 No. Part No. Part Na…

100%1 / 11
0003
20NS El Rear R
33
El
9
1
10
3
4
11
7
6
5
2
8
8

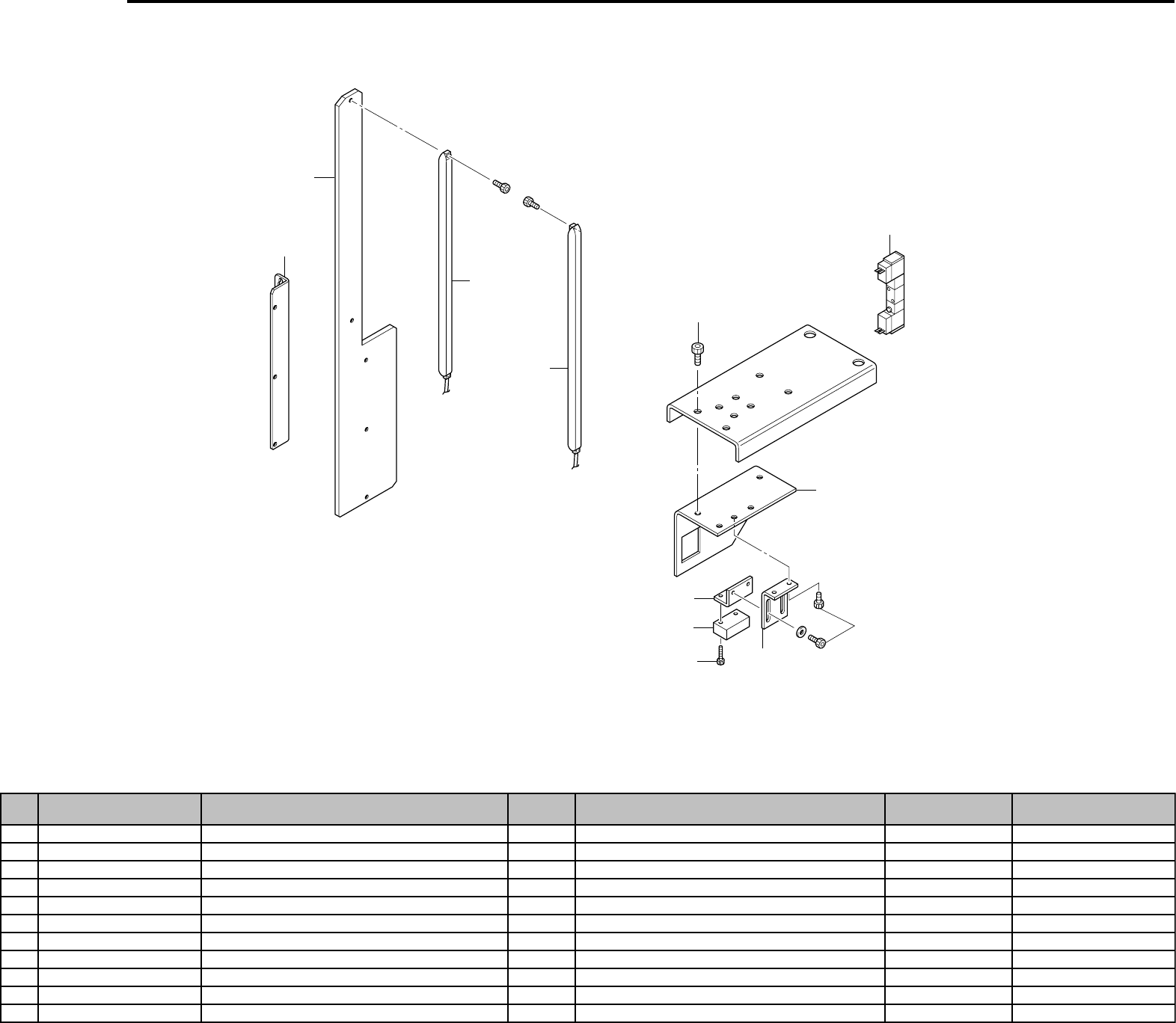

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KV7-M3485-00X GUIDE, UNDER 1 1
2 KM9-M3489-00X STAY, SENSOR 3 1
3 KM9-M3490-00X STAY, SENSOR 4 1
4 KV8-M37N1-10X PLATE 1
5 KV8-M37N2-10X BRACKET, R 1
6 KM8-M3483-00X VALVE 1
7 KV8-M655A-00X SENSOR, 1-1 ASSY 1
8 KV8-M655E-01X SENSOR, 1-2 ASSY 2
9 91317-05010 BOLT HEX, SOCKET HEAD 3
10 91317-04010 BOLT HEX, SOCKET HEAD 4
11 91317-03016 BOLT HEX, SOCKET HEAD 2
0003
20NS El Rear L
34
El
9
6
10
10
2
1
4
3
11
7
5
8
8

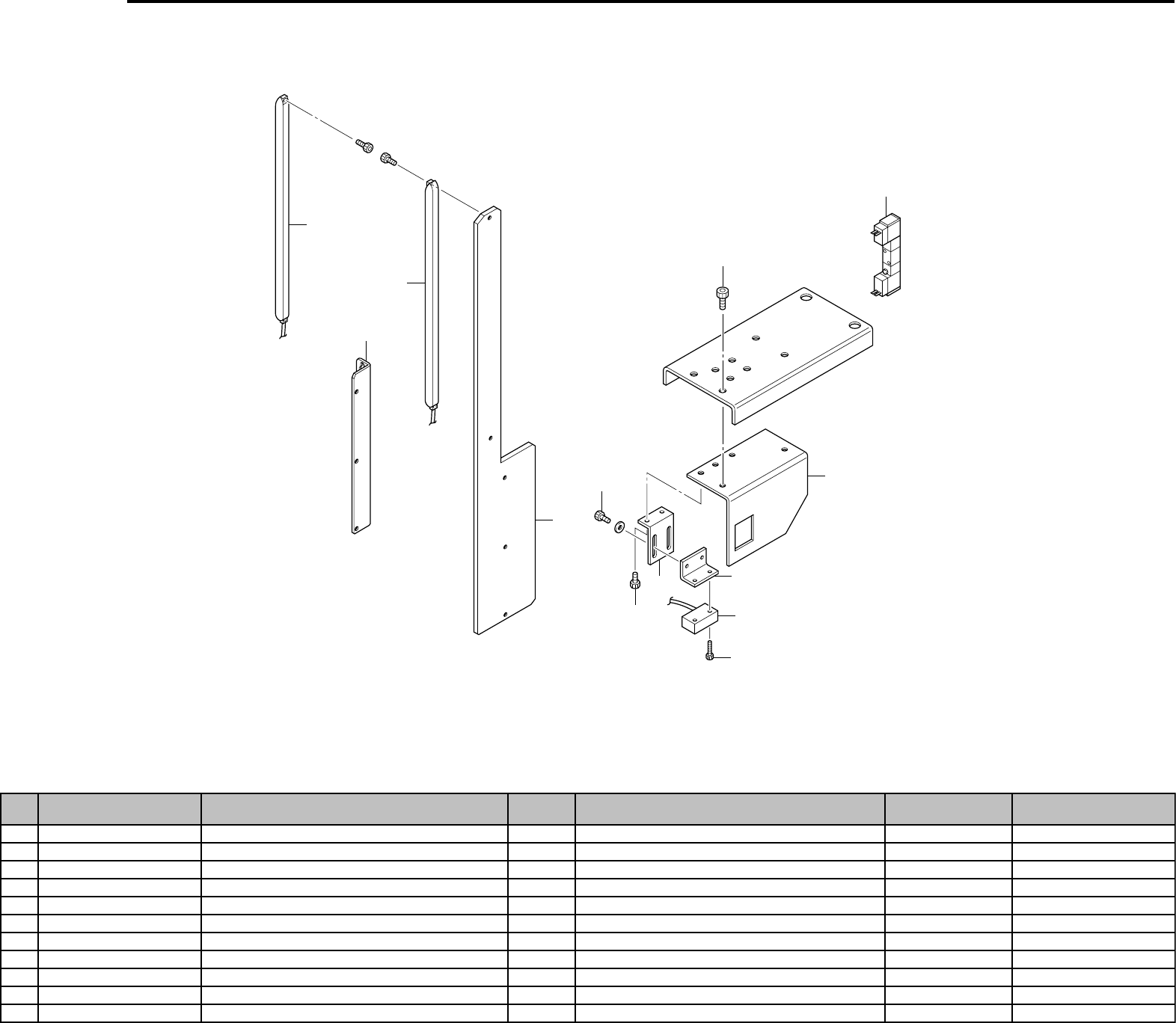

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KV7-M3485-10X GUIDE, UNDER 1 1
2 KM9-M3489-00X STAY, SENSOR 3 1
3 KM9-M3490-00X STAY, SENSOR 4 1
4 KV8-M37N1-10X PLATE 1
5 KV8-M37N3-10X BRACKET, L 1
6 KM8-M3483-00X VALVE 1
7 KV8-M655A-00X SENSOR, 1-1 ASSY 1
8 KV8-M655E-01X SENSOR, 1-2 ASSY 2
9 91317-05010 BOLT HEX, SOCKET HEAD 3
10 91317-04010 BOLT HEX, SOCKET HEAD 4
11 91317-03016 BOLT HEX, SOCKET HEAD 2
1
4
Reel Holder Assy
Reel Holder
FES20-1005
3
6
4
5
13
12
11
11
7
8
16
16
19
19
19
18
19
19
18
18
18
18
16
16
16
16
2
18
18
16
16
11
11
11
11
20
20
11
10
10
10
10
20
16
16
9
20
11
5
5
15
14
1

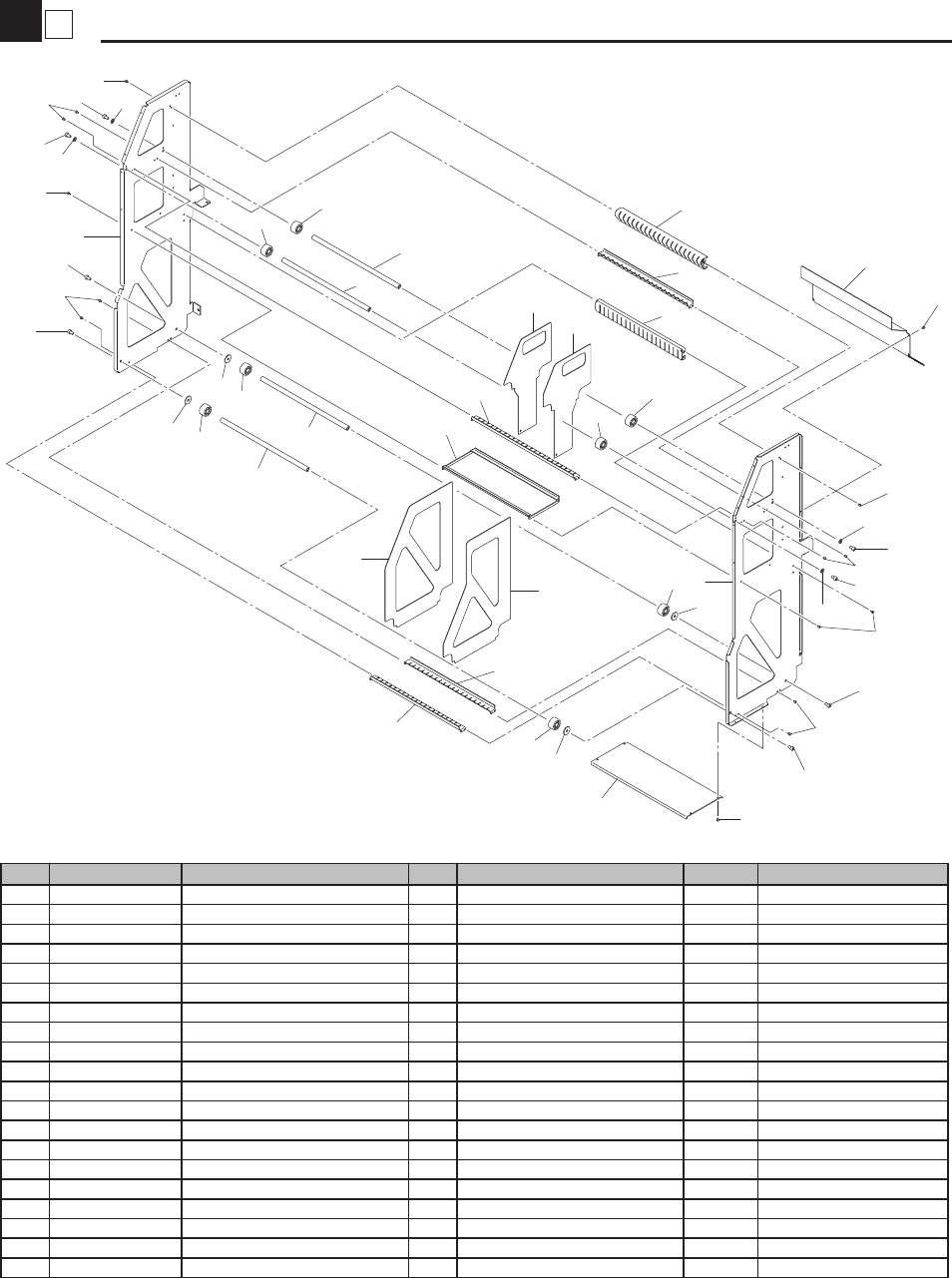

No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KV8-M3R01-01 SIDE PLATE, R 1
2 KV8-M3R02-01 SIDE PLATE, L 1
3 KV8-M3R03-00 TAPE GUIDE 1
4 KV8-M3R04-00 HOOK PLATE 1
5 KV8-M3R05-00 HOOK PLATE 3
6 KV8-M3R05-10 HOOK PLATE 1
7 KV8-M3R06-01 REEL GUIDE 1
8 KV8-M3R07-01 BACK COVER 1
9 KV8-M3R08-00 UNDER COVER 1
10 KV8-M3R09-00 SHAFT,ROLLER 4
11 KV8-M3R21-00 ROLLER 80
12 KV8-M3R51-00 PARTITION, S-1 5
13 KV8-M3R52-00 PARTITION, S-2 5
14 KV8-M3R53-00 PARTITION, L-1 2
15 KV8-M3R54-00 PARTITION, L-2 3
16 91317-03005 BOLT HEX.SOCKET HEAD 36 M3X5
17 91317-04006 BOLT HEX.SOCKET HEAD 4 M4X6
18 91317-06010 BOLT HEX.SOCKET HEAD 8 M6X10
19 92907-06600 WASHR,PLAIN 4
20 90201-06072 WASHR,PLAIN 4
