11 VisionXS lter cooler drop formation w low maintenance expenses Pyrolysis at 500 °C Option Residues are separated with the help of a special granulate during py - rolysis. Long molecular chains are brok en down (crack…
10
VisionXS
w
A Clean Machine:
Effective Residue Management
It is equipped with MRS (pre-heating zone residue management system) and MARS (cooling zone
residue management system) as standard. For higher productivity and better cooling, the second
stage MARS is optional.
As is the case with all industrial processes, substances are generated during SMT production
which have to be removed from the process cycle because they contaminate the system. Our high-
ly effective residue management function puries the process gas safely and reliably, and keeps
your system clean and dry.
MARS & MRS for Individual Collection in Peak and Pre-heating Agglomerator Technology for more
surface in Condensation Process for all residues, liquids or crystalline Tool-free maintenance, Easy
Accessible.
In order to make your manufacturing system even more efcient, the VisionXS with optional pyroly-
sis. Your system’s cleaning efciency is signicantly increased. For the process gas and the system
chambers will keep clean and dry with very little maintenance and minimal downtime.
标配前置加强回收系统和冷却区回收系统，为了更高的产能和更好的冷却可选配第二段冷却区回收系统。
和所有工业制程一样，SMT生产线同样也会产生可能污染系统的残渣，必须及时从制程循环中去除。高效残渣管
理系统可以安全、可靠地净化制程气体，保持炉膛内洁净、干燥。
前置加强回收系统和冷却区回收系统分别收集预热区和高温区助焊剂，凝聚器技术具有更多的表面积用于冷凝工
艺，灵活的配置和6级过滤系统收集液态或结晶状的所有助焊剂残留物。
为实现更高生产效率，
VisionXS
可提供热解装置选项，显著提升系统清洁效率，保持炉膛清洁、干燥，同时最大
限度降低维护需求和停机时间。
Agglomerator
technology
清洁型解决方案：高效的残渣管理
11
VisionXS
lter
cooler
drop formation
w
low
maintenance
expenses

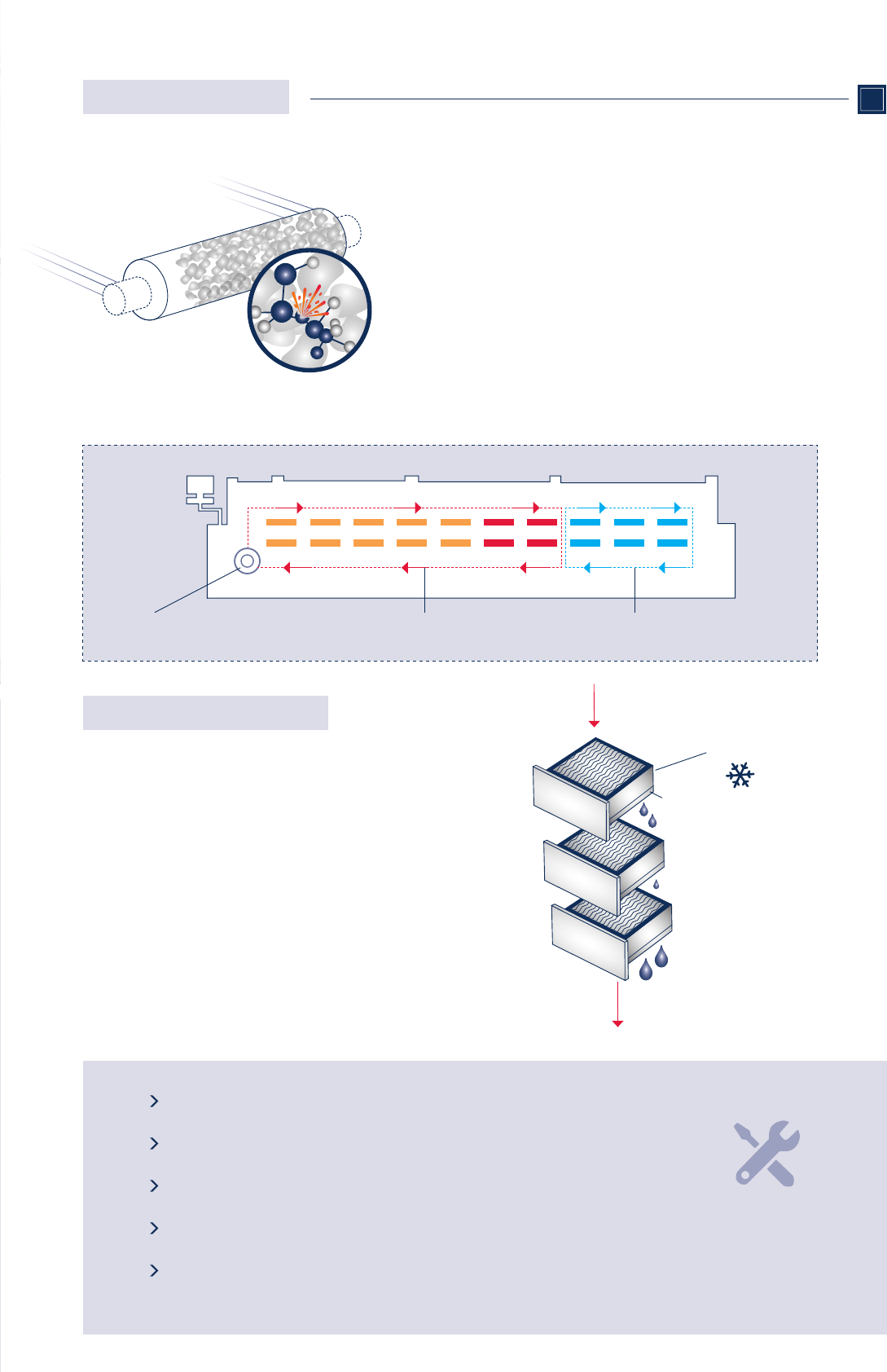

Pyrolysis at 500 °C
Option
Residues are separated with the help of a special granulate during py-
rolysis. Long molecular chains are broken down (cracked) into smaller
elements by means of thermal ssion. Temperatures ranging from 500
to 900 °C are required to this end. Afterwards, the molecular chains are
small enough to be taken up by the granulate and removed from the pro-
duction process. The granulate only needs to be changed once a year,
making the pyrolysis unit easy to maintain – and you prot from minimal
downtime. Your manufacturing processes continue to run smoothly.
残渣在高温（500°C至900°C）作用下通过一种表面粗糙的特殊颗粒材料，大分子
链被拆分为更小的分子（“裂解”）。随后，小分子沉积在颗粒材料表面并从制程
中被去除。此颗粒材料每年仅需更换一次，因此热解装置的维护十分便捷，停机
时间也大大降低，确保生产稳定进行。
pyrolysis
热分解系统
closed loop process atmosphere
闭环制程气体循环
closed loop cooling
闭环冷却循环
Liquid residues condense above all on the cooling
tract’s lter units, by which they are then removed.
The system is easy to clean. The lters are ex-
changed in sets at the back of the system. The
process chamber doesn’t even have to be opened.
Optional 7 stages for max efciency, Filters up to
98% increase process safety.
液体残留物首先在冷却区单元内冷凝过滤，然后被排
出。过滤单元易于清洁，过滤器可以通过系统背部直接
更换而无需打开炉膛。可选配七段过滤，最高过滤效率
高达98%。
Cold condensation |
冷凝
Ecient cleaning for a clean and dry process chamber
System integrated solution
Reliable, stable process
Easy accessibility
Low maintenance effort
高效清洁，保证炉膛清洁、干燥
一体化系统解决方案
可靠、稳定制程
易于操作
低维护需求
12
VisionXS
It is important to have a high-performance cooling tract in order to guarantee optimum sol-
dering results and ensure that modules are cooled gently.
Rehm Thermal Systems offers a wide range of cooling tract variants for reflow convection
soldering with VisionXS, which can be precisely ne-tuned to suit any production process. The
water-cooled standard solution with heat exchanger and adjustable ventilation system works
as an effective "Closed Loop" system. There are several efcient, additional options for large
and high-mass boards, primarily a power cooling unit as an extended cooling tract or a bottom
cooling system.
为获得最佳焊接结果以及组件得到平缓冷却，需配备高性能冷却系统。
锐德为VisionXS提供了多种冷却系统，并支持精确微调以适应个性化生产制程。带热交换器和可调通风系
统的标准水冷解决方案可作为“闭环”系统，实现高效冷却。对于大型高密度PCB板，您可以加装底部冷却
系统。
Stress-free to below 50 °C
with powerful cooling systems
无应力冷却至50℃以下 性能强劲的冷却系统
Stress-free cooling using individually adjustable ventilators in the classic cooling zones
Optimum cooling of large, high-mass boards thanks to additional bottom cooling
Flexible combination possibilities through a range of different options
New, sustainable cooling principle as a result of liquid nitrogen cooling
利用冷却区中多个可单独调节的风机实现无应力冷却
提供底部冷却系统选件，完美冷却大型、高密度组件
多种冷却选项。支持灵活配置
创新型可持续液氮冷却技术
