YESTECH’s advanced multiple camera imaging technology offers high-speed inspection with exceptional defect coverage. With dual sided viewing top-down and bottom up cameras and UV lighting the FX-942 inspects conformal co…
YESTECH’s advanced multiple camera imaging
technology offers high-speed inspection with exceptional
defect coverage. With dual sided viewing top-down and
bottom up cameras and UV lighting the FX-942 inspects
conformal coating coverage and verifies correct part assembly
in SMT or THT applications, enabling users to improve
quality and enhance yields.
Advanced High Power UV Lighting and newly available
image processing technology integrate several techniques,
including coverage inspection, color inspection, normalized
correlation and rule-based algorithms, to provide complete
inspection coverage with an unmatched low false failure rates.
Configurable for several line positions, the FX-942 is
equally effective for coating, pre/post-cure and final assembly
inspection. Off-line programming maximizes machine
utilization and real-time SPC monitoring provides a valuable
yield enhancement solution.
Features:
n Top down and bottom up imaging
n Optional side viewing cameras
n Proprietary UV lighting
n 100 mm clearance for tall components
n Traceability
n Optional thickness measurement
Automated Inspection for:
n Conformal coat coverage
n Micro Coatings / dispensed materials
n Flux coverage
n Selected areas of non-coverage
n Delamination / cracks and bubbles
n Flux coverage
n Part presence / Correct part / polarity
n SPC, barcode reading and archiving of
board image with inspection results
YESTECH FX-942UV ACI/AOI
In-line dual sided optical inspection for conformal coating and parts
NES_YT-FX-942UV_DS_9-2020B.qxp_Layout 1 9/4/20 1:09 PM Page 1
For more information,
speak with your
Nordson representative
or contact your Nordson
regional office.
YESTECH
USA Headquarters:
2747 Loker Ave. West
Carlsbad, CA USA 92010
+1.760.918.8471 Phone
+1.760.918.8472 Fax
China:
#137 Guoshoujing Road
Zhangjiang Hi-Tech Park
Pudong,
Shanghai 201203, P.R.China
+86 21 3866 9166 Phone
+86 21 3866 9199 Fax
SE Asia:
2 Corporation Road
#03-11/12
Corporation Place 618494
Singapore
+65 6552 7533 Phone
+65 6552 7116 Fax
Europe:
25 Faraday Road
Rabans Lane Industrial Area
Aylesbury
Buckinghamshire
HP19 8RY
+44 (0) 1296 317800
Phone
+44 (0) 1296 317801 Fax
Japan:
Yamatane Fukagawa No. 1 Bldg.,
1-1-1 Etchujima, Kotu-ku
Tokyo, 135-0044
+81 3 5639 7020 Phone
+81 3 5639 7021 Fax
Specifications
Model
FX-942UV Multi-function system with top-down and bottom up
viewing and optional side cameras
Optional Upgrades: Coating thicknesst measurement
Specifications
Throughput: Up to 30 sq. in./sec. > 1.5 million components per
Maximum Board Size: 23” x 16” (580mm x 410mm)
Maximum Inspection Area: 19.5” x 15.5” (495mm x 395mm)
Clearance: 4” (100mm) top size and 2” (50mm) bottom
False Calls: <500 PPM (<0.05% typical)
Defects Detected: Coatings and dispensed material coverage, non-coverage,
cracks and delamination, SMT and THT part defects.
Software
Algorithms: Conformal Coating Inspection
Color detection, OCV, OCR, Barcode recognition,
both image and rules based algotithms.
Data Requirements: None
CAD Translation Package: Not required
Programming Skill Level: Technician or operator
Operating System: Windows 10
Off-line Software: Optional - Rework, Review and Program Creation Basic
SPC Software: Real-time local and remote monitoring of first pass yield,
defect trends, and machine utilization.
Data Outputs: Text, SQL, ODBC, MS Access, XML
Hardware
Material Handling: SMEMA, dual direction auto width conveyor,
pass / fail signals, board clamping
Lighting: Proprietary UV Lighting multi-angle LED
Imager: Up to 5 megapixel color camera on each side using
22, 12 or 8 micron pixel size
Facilities
Power: 110-220VAC, 50/60 Hz, 15 amps
Air input: 60 PSI min., 1/4” air hose, 2 CFM
Footprint: 39” x 52” x 60” (1000mm x 1329mm x 1531mm)
Weight: 950 lbs (430 kg)
Machine Installation: < 1 hour

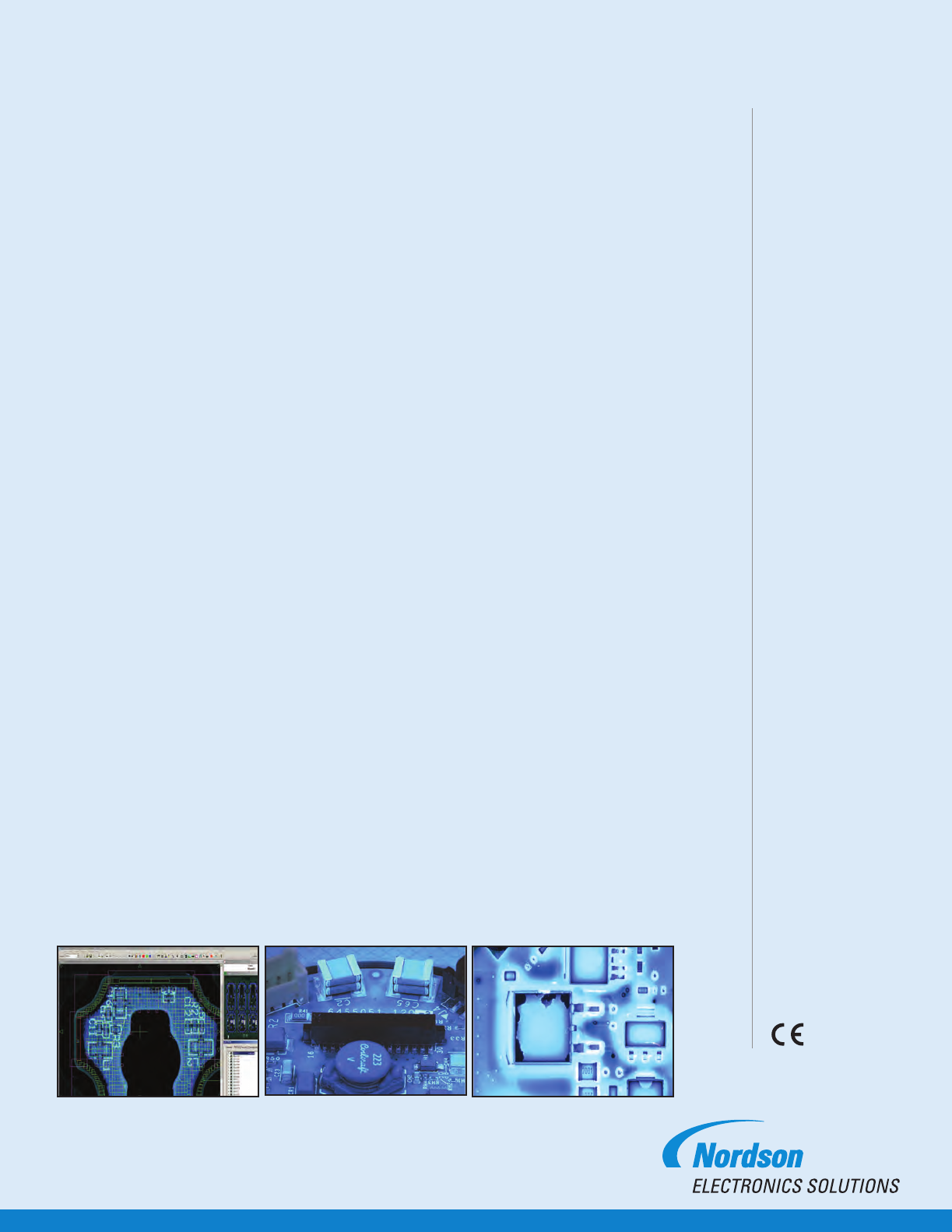

YESTECH FX-942UV ACI / AOI In-line dual sided conformal coat inspection
Side angle viewing cameras.
Defect image of missing conformal coat.Automated inspection for conformal coat.
