NB168-配件手册 - 第134页
序号 料号 部品名称 数量 规格 备注 001 NB16810035AA CAM 1 002 NB16810036AA CAM 1 003 NB16810037AA CAM 1 004 NB16810038AA KEY 1 005 NB16820013AA KEY 1 006 NB168T6368AA PULLEY 1 007 NB16810041AA BOX 1 008 NB16810042AA SHAFT 1 009 NB16810…

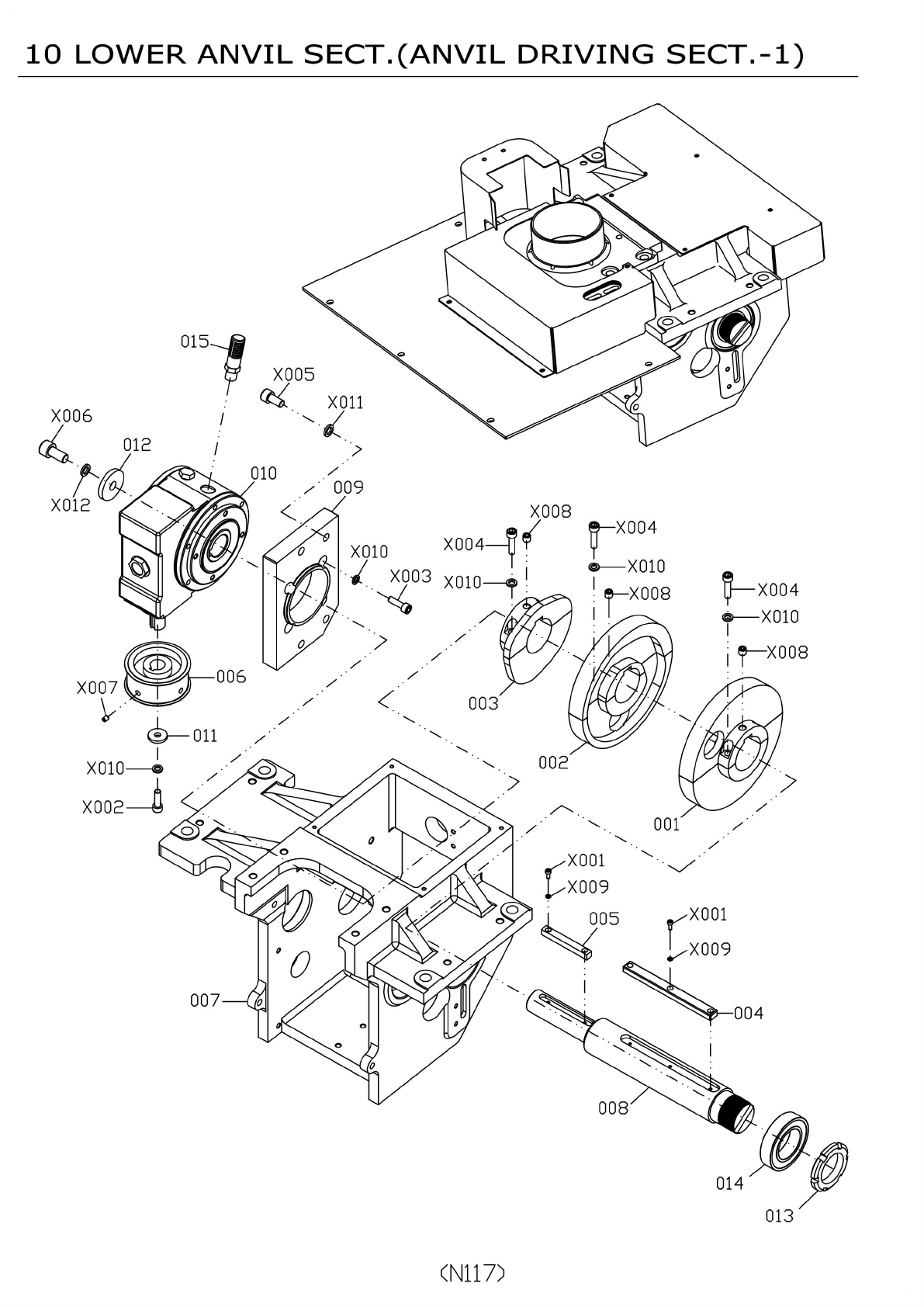

10
LOWER
ANVIL
SECT.(ANVIL
DRIVING
SECT.-l)
015
X006
012
X012
X008
X004
X004
X010
006
4
003
002
X010
―
。
X002
001
o
X001
X009
o
X001
005
X009
007
004
008
014
013
(N117)
X007
V
I
^5—
X008
X004
©
—
X010
X010
X003
011
X005
兹
X011
©
—
X010
!
厂
X008
010
/
/
009
序号 料号 部品名称 数量 规格 备注
001 NB16810035AA CAM 1
002 NB16810036AA CAM 1
003 NB16810037AA CAM 1
004 NB16810038AA KEY 1
005 NB16820013AA KEY 1
006 NB168T6368AA PULLEY 1
007 NB16810041AA BOX 1
008 NB16810042AA SHAFT 1
009 NB16810043AA PLATE 1
010 NB168W50E07AA REDUCTION GEAR 1 SW50E07LF-ST2
011 NB168D0425AA WASHER 1
012 NB16810045AA WASHER 1
013 NB168FU07SSAA NUT 1 FU07SS（M35X1.5）
014 NB1686007ZZAA BALL BEARING 1 6007ZZ
015 NB16807157AA FITTING 1 KS-1/4
X001 NB168SH0308 SOKET HEAD CAP SCREW 5 M3-L8
X002 NB168SH0616 SOKET HEAD CAP SCREW 1 M6-L16
X003 NB168SH0625 SOKET HEAD CAP SCREW 4 M6-L25
X004 NB168SH0630 SOKET HEAD CAP SCREW 6 M6-L30
X005 NB168SH0820 SOKET HEAD CAP SCREW 4 M8-L20
X006 NB168SH1020 SOKET HEAD CAP SCREW 1 M10-L20
X007 NB168SS0506 SUNK SCREW 2 M5-L6
10 LOWER ANVIL SECT.(ANVIL DRIVING SECT.-1)
X007 NB168SS0506 SUNK SCREW 2 M5-L6
X008 NB168SS0808 SUNK SCREW 3 M8-L8
X009 NB168SW03 SPRING WASHER 1 3-4-H1.0
X010 NB168SW06 SPRING WASHER 11 6-9.5-H1.6
X011 NB168SW08 SPRING WASHER 4 8-12.5-H2
X012 NB168SW10 SPRING WASHER 1 10-15.5-H2.5
N118

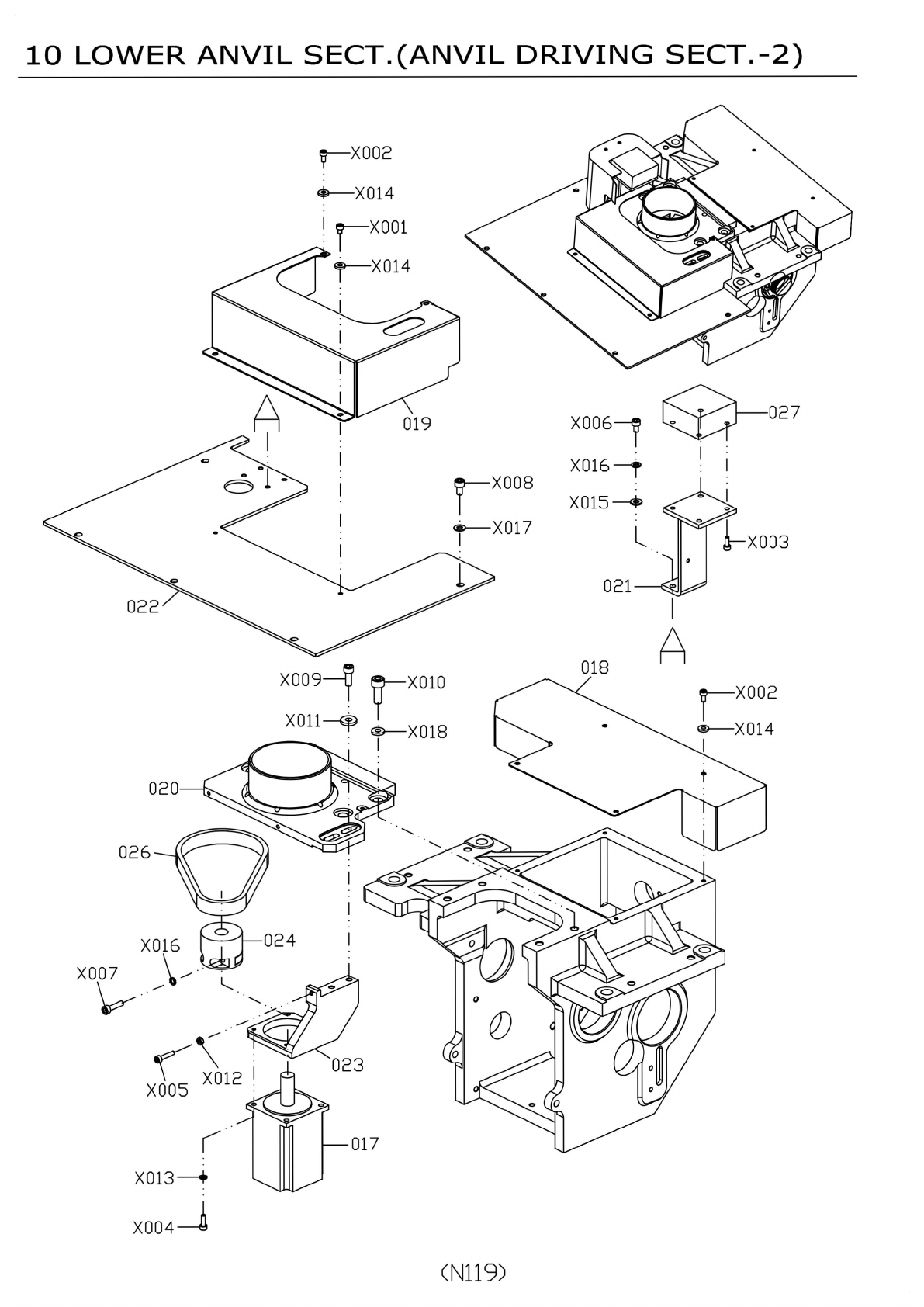

10
LOWER
ANVIL
SECT.(ANVIL
DRIVING
SECT.-2)
*
—
X014
X001
A
027
X00
019
X016r
X008
X015T
X003
021
022
A
018
X00
X010
X002
—
X014
020
026
024
X016
X007
0
4
023
—
017
X013
-
+
—
X002
X004
—
A
X005
X°12
—
X014
(N119)
