60-C 2ノズルヘッド:NPM 2 NOZZLE HEAD:NPM パーツレイアウト Kit No. キット 品番 Kit Name キット名称 N610157743AA セクションNo. PARTS LAYOUT Section No. - - O217 ( KN610157743AA-18-3 )
Ref
No.
Remarks R
1
Q'ty
60-B
2ノズルヘッド:NPM
2 NOZZLE HEAD:NPM
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610157743AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
PLATE
1
1 N210186137AA
JOINT
2
2 MTPA016119AA
JOINT
2
3 MTPA016120AA
MANIFOLD
1
4 N210113239AA
PLATE
1
5 N210085976AB
COVER
1
6 N210085977AD
BRACKET
1
7 N210097158AE
MOTOR
2
8 MTNM000173AA
S
P50BA2003BCSPD
PIN
4
9 N510020597AA MMS4-8
LINEAR-WAY
2
10 N510043367AA KR15QZ+0812-0006194(80012465M001)
BOLT
16
11 N510067785AA Low Head Cap Screw M3X6-8.8 SOB
SCREW
5
12 N510018280AA
Cross recessed Truss head machine screw M4X6-4.8 A2S (Trivalent)
JOINT
4
13 N510066461AA KQ2L06-M5A
JOINT
1
14 N510066712AA KQ2S06-M5A
JOINT
2
15 N510066683AA KQ2H08-01AS
STEEL-BALL
4
16 KXF081WAA00 4.5mm
SPACER
2
17 N510015581AA CF-335E
BOLT
2
18 N510017331AA
Hexagon socket head cap screw M3X45-10.9 A2J (Trivalent)
SPACER
2
19 N510034273AA ASF-590E
SPACER
4
20 N510019890AA ASF-350E
SPACER
2
21 N510031805AA CB-530E
WASHER
2
22 N210118728AA
JOINT
1
23 N510066662AA KQ2L04-M5A
BOLT
2
24 N510017750AA
Hexagon head bolt Best class M5X45-6g 4T A2J (Trivalent)
VALVE
2
25 N510054501AA VQZ115R-5MOZ1-C6-X513
VALVE
2
26 N510054170AA VQZ115R-5LOZ1-M5-X550
BOLT
1
27 N510017514AA
SSS 003 Hexagon socket button head screw M3X8-10.9 A2J (Trivalent)
FAN
1
28 N510044729AA 109L0624H408
JOINT
1
29 N510066732AA KQ2Y06-M5A
JOINT
1
30 N510066792AA KQ2L04-06A
STEEL-BALL
1
31 N510029639AA 6.5mm
REGULATOR
1
32 N610074285AD
O216
--
( KN610157743AA-18-2 )

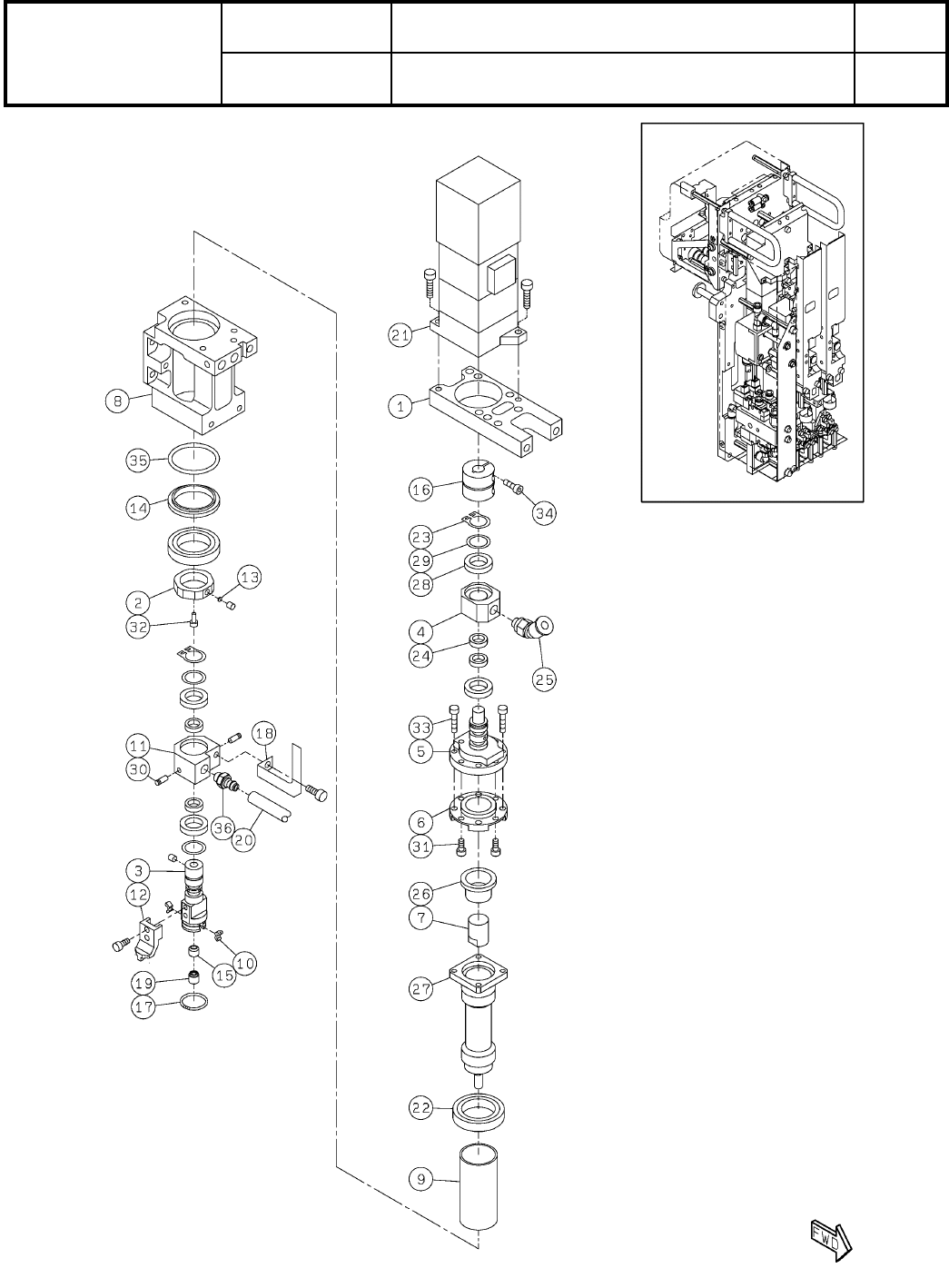

60-C
2ノズルヘッド:NPM
2 NOZZLE HEAD:NPM
パーツレイアウト
Kit No.
キット品番
Kit Name
キット名称
N610157743AA
セクションNo.
PARTS LAYOUT
Section No.
--
O217
( KN610157743AA-18-3 )
Ref
No.
Remarks R
1
Q'ty
60-C
2ノズルヘッド:NPM
2 NOZZLE HEAD:NPM
ｲﾗｽﾄ
No.
Part No.
品 名品 番 数量
R
2
パーツリスト
Kit No.
キット品番
Kit Name
キット名称
N610157743AA
Part Name
備 考
セクションNo.
PARTS LIST
Section No.
R
3
PLATE
2
1 N210082170AA
NUT
2
2 KXFB0APSA00
HOLDER
2
3 N210017657AB
RING
2
4 KXFB0APTB00
HOLDER
2
5 KXFB0APUB00
CYLINDER
2
6 KXFB0APVA00
PISTON
2
7 KXFB0ATVA00
HOUSING
2
8 N210016067AC
COLLAR
2
9 KXFB0ATXA00
CLAMP
4
10 KXFB00L1A02
A
RING
2
11 KXFB0ATYA00
ARM
2
12 KXFB00HMA02
PIECE
2
13 N210110278AA
RING
2
14 KXFB0ATZA00
SCREW
2
15 N210133825AA
COUPLING
2
16 KXFB0HBTA00
SPRING
2
17 N210201305AB
A
DOG
2
18 N210026984AA
FILTER
2
19 N610009394AC
TUBE(173mm CUT)
2
20 N610144924AC
MOTOR
2
21 N510043455AA
S
P50BA2002BXS3D
BEARING
4
22 N510033224AA 6803ZZCM
C-RING
4
23 KXF0A74AA00 STW-9
PACKING
8
24 KXF05YHAA00 MYA-6
JOINT
2
25 N431PLH4M5M PLH4-M5M
DIAPHRAGM
2
26 KXF0DZHVA00
DM2-13-13-T2.NN501(Delivery drawing available)
BALL-SPLINE
2
27 N510037999AA LF6SGCSM+66LPM(12028716X002)
BEARING
8
28 KXF0DZXDA00 F-679
SHIM
6
29 MTPB008948AA
FASTENER
4
30 KXF0DKMAA00 BX2.5-8(Drawing available 0DKMA)
BOLT
12
31 XVE26B6FTC
Hexagon socket head cap screw M2.6X6-12.9 SOB
BOLT
2
32 XVE2B5FTC Hexagon socket head cap screw M2X5-12.9 SOB
BOLT
8
33 XVE26B12FTC
Hexagon socket head cap screw M2.6X12-12.9 SOB
BOLT
4
34 XVE25B8FTC
Hexagon socket head cap screw M2.5X8-12.9 SOB
O-RING
2
35 KXF0DJ1AA00 CO0614A
JOINT
2
36 MTNP000776AA M-5AU-6-X83
