- - 47. PWBCONVEY ORCOMPONEN TS(11) 2 5 6 4 4 1 7 9 1 2 1 4 1 5 1 1 3 2 2 4 2 3 3 5 3 1 2 5 3 0 2 5 2 7 2 6 3 3 3 1 2 7 2 8 2 9 7 8 5 1 5 3 5 4 3 4 5 6 5 2 4 6 4 8 4 7 5 0 4 9 5 3 5 4 A A 4 3 4 2 3 7 3 8 3 9 4 0 4 1 …

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 WP-1052001-SC WASHER10,5X21X2 4

2 400-93920 HANDLESHAFT 1

3 400-00916 MANIFOLDVALVEAASM 1

4 PV-9150050-00 SOLENOIDVALVEINSTALLINGBASE (1)

#01

PV-1502093-00 5PORTELECTROMAGNETICVALVE (3)

6 PX-0500030-00 SILENCER (1)

7 SM-3040652-TN SCREWM4L=6 2

8 HK-0691900-0B BLOCKTERMINAL 1

9 PF-0200040-00 REGULATOR 2

10 400-00904 REGULATORBRACKET 1

11 SM-4033001-SC SCREWM3L=30 4

12 SL-6040892-TN BOLT 4

13 PC-0124010-00 SPEEDCONTROLLER 1

14 BT-0400251-EA TUBEHOSE,BLUE 6

15 PX-5000140-00 PLUG 3

16 HX-0029400-00 FIXEDBASE 7

17 SM-4040801-SC SCREWM4X0.7L=8 7

18 400-94486 REGULATOR_BR 1

19 PF-0200040-00 REGULATOR 1

20 SL-6051292-TN BOLT 2

21 SL-6104042-TN BOLT 4

22 400-93936 BU_HOME_SENSOR__BRACKET_ASM 1

23 400-92573 BUORGSENSASM (1)

24 E4115-729-000 UNION (1)

25 EA-9500B01-00 CABLEBAND (1)

26 400-92570 WAITSENSORASM 1

27 EA-9500B01-00 CABLEBAND 40

28 400-13197 CONVEYORCOUPLING 1

29 SM-8050502-TP SCREWM5L=5 4

30 400-92571 STOPSENSORASM 1

31 400-92572 C.OUTSENSORASM 1

32 400-94484 CONVEYOR_VALVE_STAGE 1

33 400-92512 FIBER 3

34 SL-4031091-SC SCREWM3L=10 4

35 SL-4031481-SC SCREWM3X14 2

36 SM-4033001-SC SCREWM3L=30 2

- -

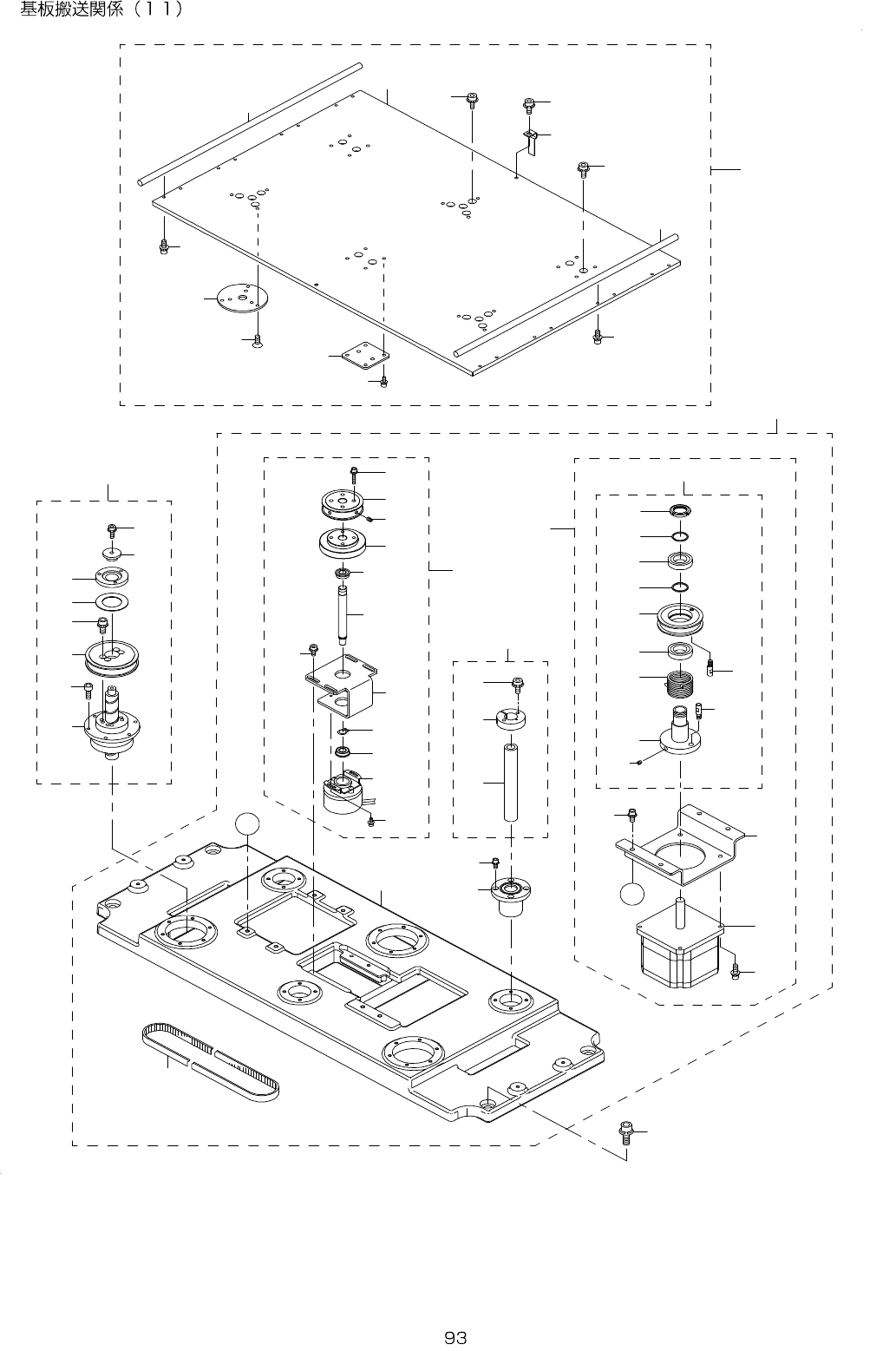

47.PWBCONVEYORCOMPONENTS(11)

5 6

4 4

1 7

1 2

1 4

1 5

1 1

3 2

2 4

2 3

3 5

3 1

2 5

3 0

2 5

2 7

2 6

3 3

3 1

2 7

2 8

2 9

5 1

5 3

5 4

5 2

4 6

4 8

4 7

5 0

4 9

5 3

5 4

4 3

4 2

3 7

3 8

3 9

4 0

4 1

3 6

4 5

1 8

1 3

1 9

1 3

1 6

3 4

1 0

2 0

2 1

2 2

5 5

- -

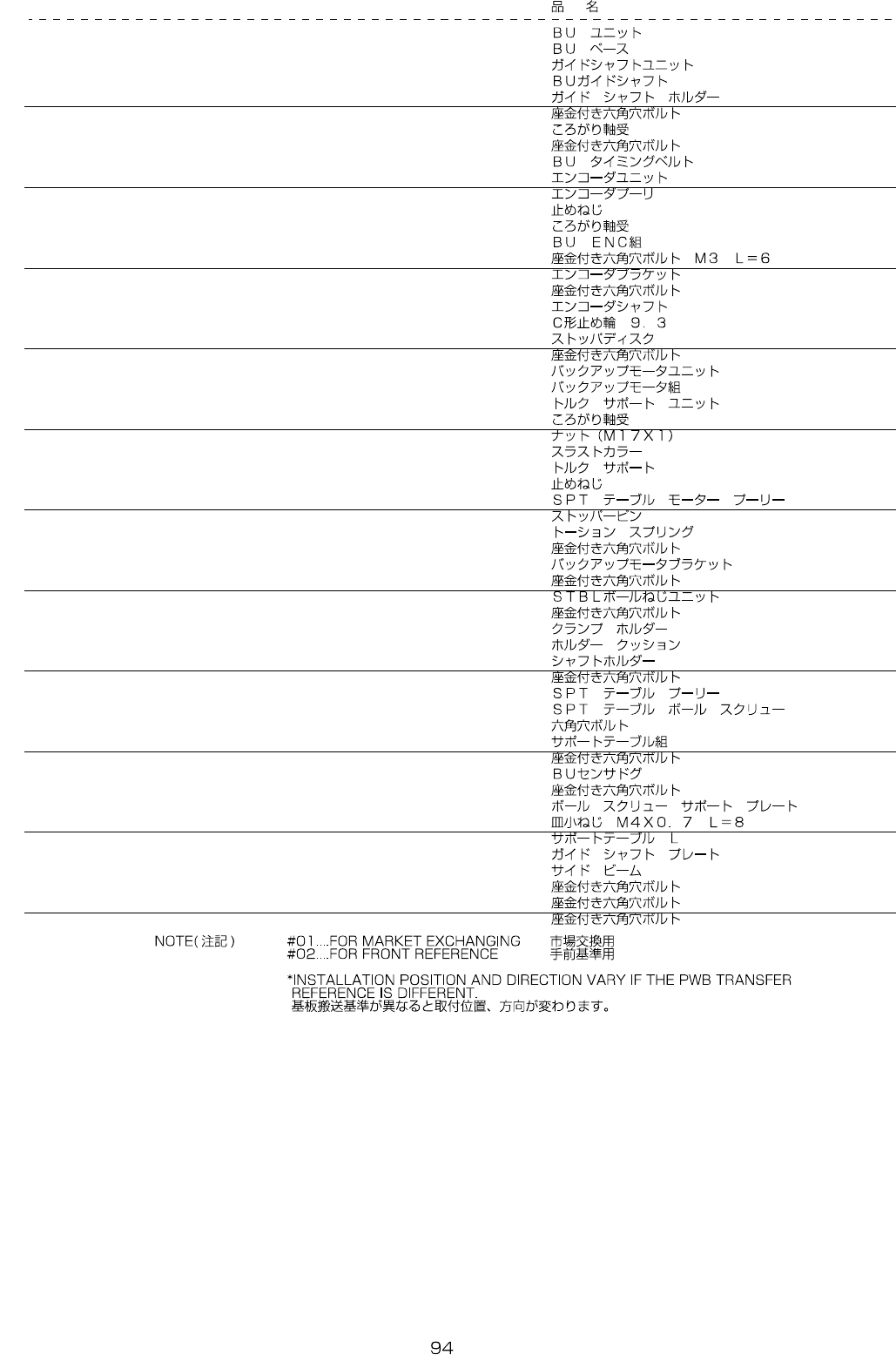

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-93900 BU_UNIT 1

2 400-71329 BU_BASE (1)

3 400-80446 GUIDESHAFTUNIT (3)

4 400-76103 BUGUIDESHAFT (1)

5 L177E-521-000 GUIDESHAFTHOLDER (1)

6 SL-6041042-TN BOLT (2)

7 SB-8160001-00 BEARING (3)

8 SL-6041092-TN SCREW (12)

9 400-71334 BU_TIMING_BELT (1)

10 400-93903 ENCORDERUNIT (1)

11 400-93612 ENCORDERPULLEY (1)

12 SM-8040602-TP SCREWM4X0.7L=6 (2)

13 SB-1100005-00 BEARING (2)

14 E9433-729-0A0 BUENCASM. (1)

15 SL-6030692-TN SCREWM3L=6 (2)

16 400-93904 ENCORDER_BR (1)

17 SL-6041092-TN SCREW (4)

18 400-93905 ENCORDER_SHAFT (1)

19 RC-0100001-KP SNAPRINGM10 (1)

20 400-93906 STOPPER_DISC (1)

21 SL-6042092-TN SCREWM4L=20 (4)

22 400-93901 BU_MOTOR_UNIT (1)

23 400-48076 BACKUPMOTORASM (1)

24 L177E-621-0A0 TORQUESUPPORTUNIT (1)

25 SB-1170001-00 BEARING (2)

26 E4156-729-000 NUT(M17X1) (1)

27 E4144-729-000 THRUSTCOLLAR (2)

28 L177E-621-000 TORQUESUPPORT (1)

29 SM-8050402-TP SCREW (2)

30 L177E-721-000 SPTTBLMOTORPULLEY (1)

31 E4142-729-000 STOPPERPIN (2)

32 L177E-821-000 TORTIONSPRING (1)

33 SL-6051692-TN BOLT (4)

34 400-93902 BU_MOTOR_BR (1)

35 SL-6051292-TN BOLT (4)

#01

400-82786 STBLBALLSCREWUNIT 3

37 SL-6041642-TN SCREW (4)

38 L176E-921-000 CLAMPHOLDER (1)

39 L177E-021-000 HOLDERCUSHION (1)

40 E4124-729-000 SHAFTHOLDER (1)

41 SL-6041092-TN SCREW (1)

42 L177E-221-000 SPTTBLPULLEY (1)

43 L176E-821-000 SPTTBLBALLSCREW (1)

44 SM-6041002-TN BOLT (18)

#02

400-93907 SUPPORT_TABLE_ASM 1

46 SL-6041092-TN SCREW (12)

47 400-93909 BU_SENSOR_DOG (1)

48 SL-6040892-TN BOLT (1)

49 L177E-121-000 BALLSCREWSUPPORTPLATE (3)

50 SM-1040801-SC SCREWM4X0.7L=8 (9)

51 400-93908 SUPPORT_TABLE_L (1)

52 L177E-421-000 GUIDESHAFTPLATE (3)

53 L176E-121-000 SIDEBEAM (2)

54 SL-6031092-TN SCREW (8)

55 SL-6040892-TN BOLT (15)

56 SL-6082092-TN BOLT 4
