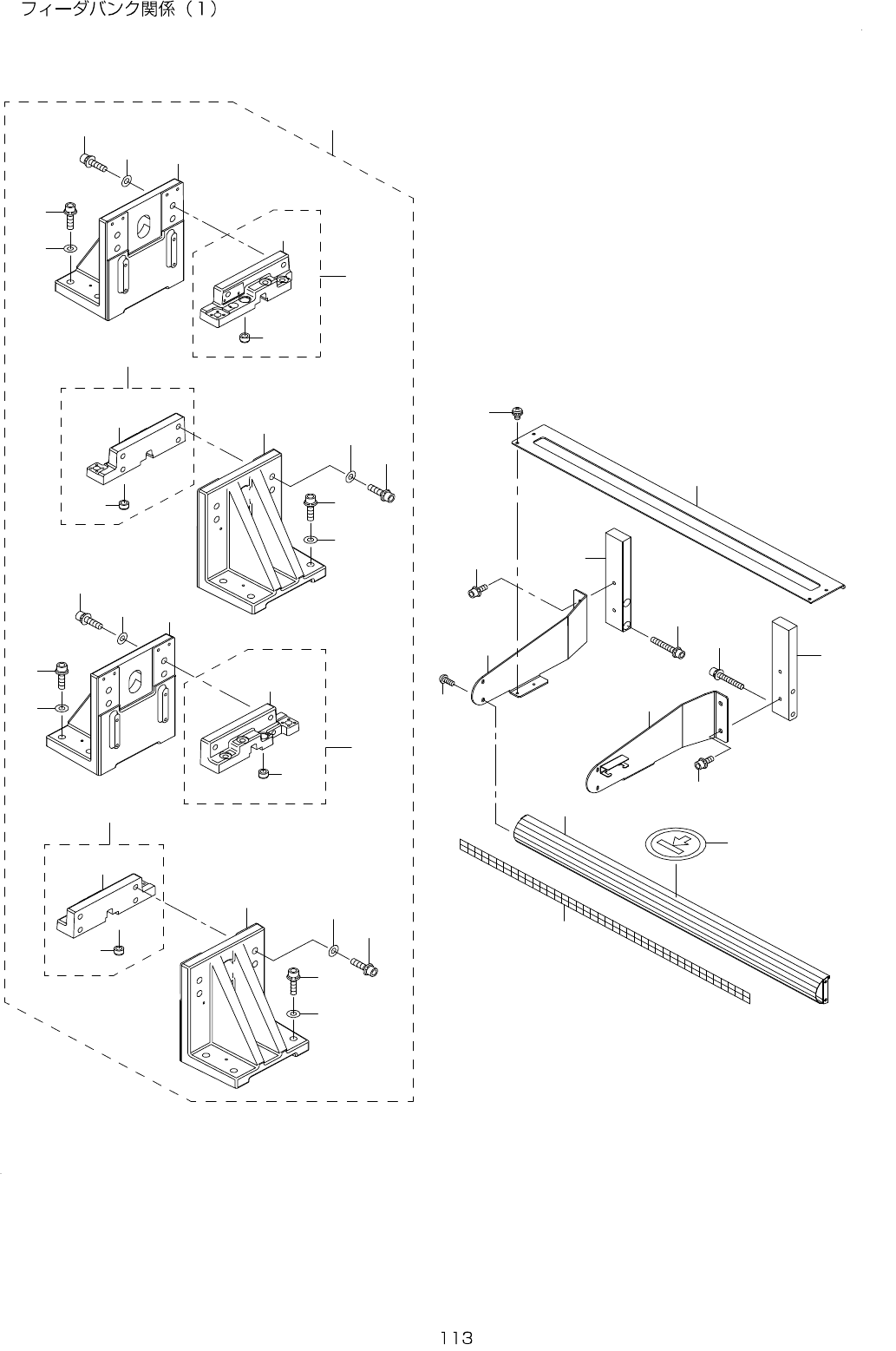

57.FEEDERBANKCOMPONENTS(1)
5
7
2
2
2
8
1 0
1 1
1 3
1 4
1 7
1 6
4
5
4
5
5
4
1 8
3
1 8
3
2
3
1 8
4
3
1 8
1
1 2
6
2 1
2 0
2 0
2 1
2 4
2 4
2 2
2 3
2 9
2 5
1 9
2 6
2 7
2 8
9
1 5
- -

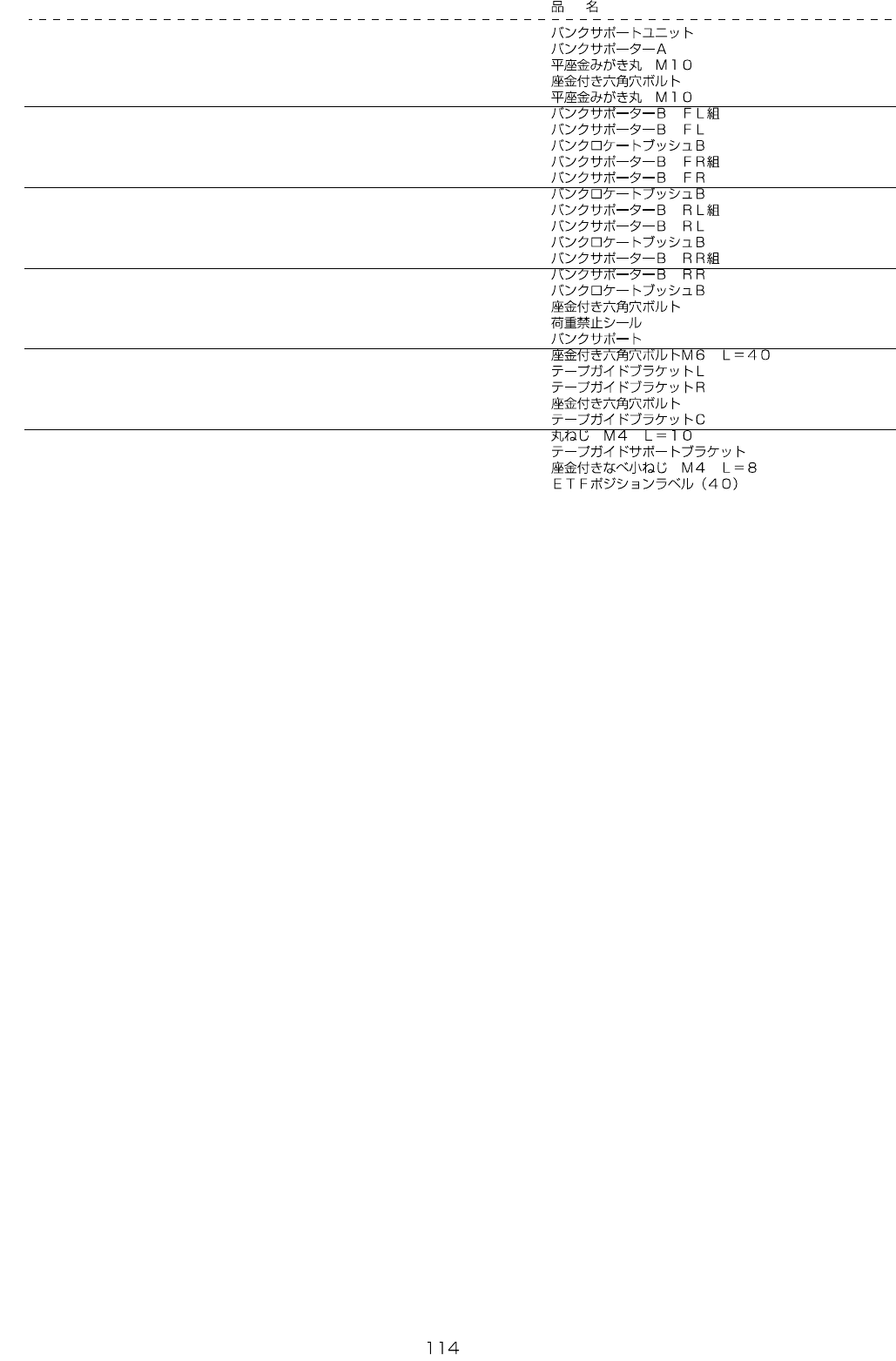

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-93596 BANKSUPPORTUNIT 1
2 400-71339 BANK_SUPPORTER_A (4)
3 WP-1052001-SC WASHER10,5X21X2 (16)
4 SL-6104042-TN BOLT (16)
5 WP-1052001-SC WASHER10,5X21X2 (16)
6 400-93613 BANK_SUPPORTER_B_FL_ASM (1)
7 400-71341 BANK_SUPPORTER_B_FL (1)
8 E2623-721-000 BANKLOCATEBUSHB (1)
9 400-93614 BANK_SUPPORTER_B_FR_ASM (1)
10 400-71344 BANK_SUPPORTER_B_FR (1)
11 E2623-721-000 BANKLOCATEBUSHB (1)
12 400-93615 BANK_SUPPORTER_B_RL_ASM (1)
13 400-71345 BANK_SUPPORTER_B_RL (1)
14 E2623-721-000 BANKLOCATEBUSHB (1)
15 400-93616 BANK_SUPPORTER_B_RR_ASM (1)
16 400-71342 BANK_SUPPORTER_B_RR (1)
17 E2623-721-000 BANKLOCATEBUSHB (1)
18 SL-6104042-TN BOLT (16)
19 E5721-729-000 LABEL 1
20 400-94376 BANK_SUPPORT 2
21 SL-6064092-TN SCREW 4
22 400-94374 TAPE_GUIDE_BR_L 1
23 400-94375 TAPE_GUIDE_BR_R 1
24 SL-6061692-TN BOLT 4
25 400-94372 TAPE_GUIDE_BR_C 1
26 SM-3041052-TN SCREWM4L=10 4
27 400-94373 TAPE_GUIDE_SUPPORT_BR 1
28 SL-4040891-SC SCREWM4L=8 4
29 400-93594 ETF_POSITION_LABEL(40) 1
- -
