- - OPTION 61. AWCCOMPONE NTS 1 9 3 9 2 0 6 4 7 8 1 3 1 6 2 3 3 0 1 2 2 2 4 2 6 2 5 2 8 1 0 2 1 2 5 1 7 1 1 1 2 1 5 2 7 1 4 1 8 1 1 1 2 1 5 2 9

- -

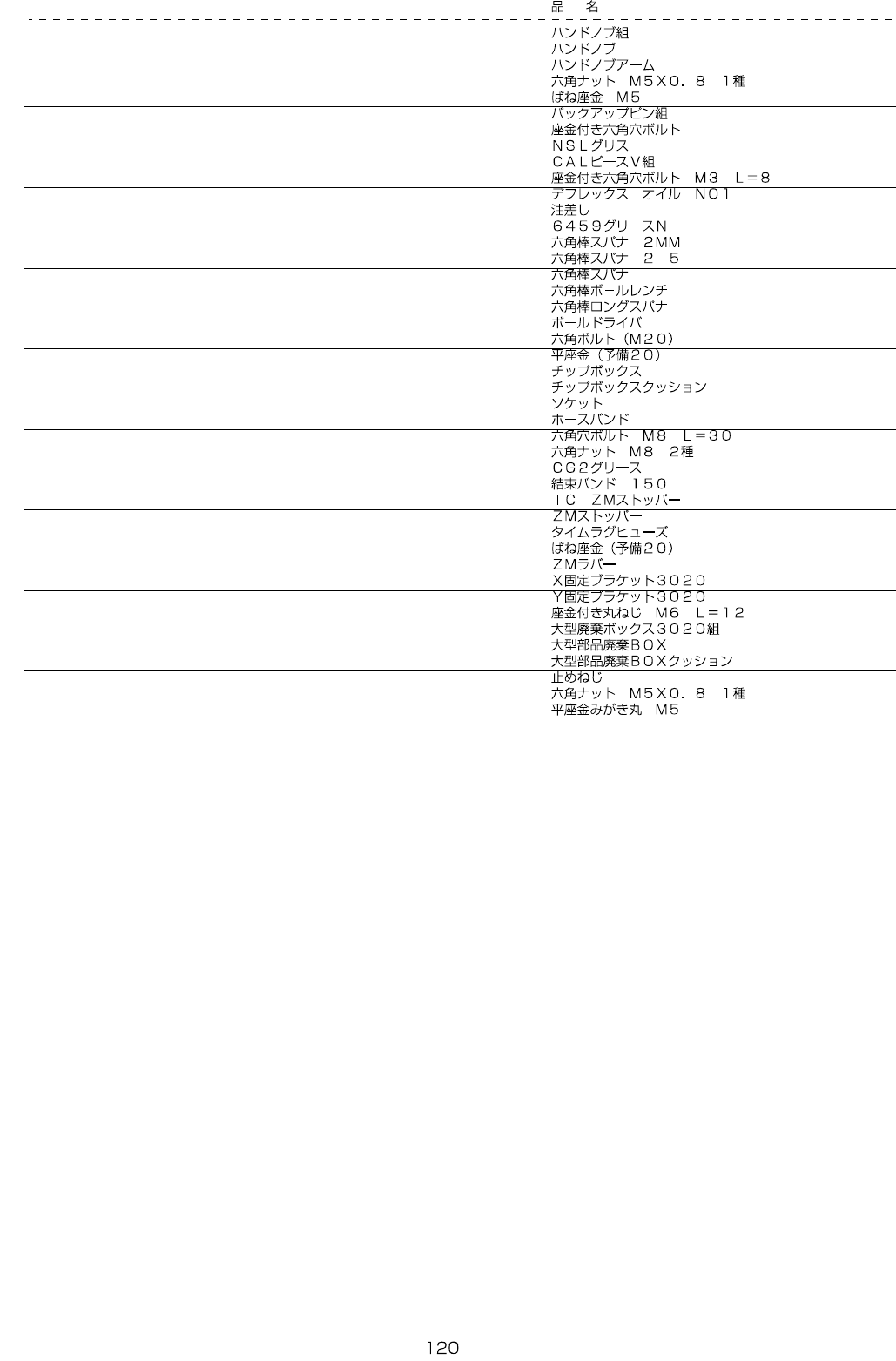

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-72349 HANDKNOBASM 1

2 400-72363 HANDKNOB (1)

3 400-72364 HANDKNOBARM (1)

4 NM-6050001-SC NUTM5X0.8TYPE1 (1)

5 WS-0510002-KN SPRINGWASHERM5 (1)

6 400-34506 BACKUPPINASSEMBLY 12

7 SL-6041092-TN SCREW 4

8 400-94361 NSL_GREASE 1

9 E5190-729-0A0 CALPIECE 1

10 SL-6030892-TN SCREW 7

11 MDF-RX1001L0 DEFRIXOILNO1 1

12 J1067-000-000 OILER 1

13 400-32449 6459GREASEN 1

14 J1066-000-00B HEXAGONALWRENCHKEY(2MM) 1

15 J1066-000-00C HEXAGONALWRENCHKEY2.5 1

16 J1066-000-00D HEXAGONALWRENCHKEY 1

17 J1066-000-00E HEXAGONALBOWLWRENCH 1

18 J1066-000-A0G HEXAGONALLONGSPANNER 1

19 J1080-000-000 BOLLSCREWDRIVER 1

20 288-46400 BOLT 4

21 288-46509 WASHER 4

22 400-45985 CHIPBOX 1

23 400-45986 CHIPBOXCUSHION 1

24 PJ-0700000-01 SOCKET 1

25 161-21907 HOSEBAND 1

26 SM-6083002-TN SCREWM8L=30 12

27 NM-6080002-SC NUTM8 12

28 400-46643 CG2GREASE 1

29 EA-9500B02-00 CABLEBAND150 10

30 400-46529 ICZMSTOPPER 1

31 400-46528 ZMSTOPPER 6

32 HF-0110025-S0 SLO-BLOFUSE 3

33 288-46608 SPRINGWASHER 4

34 400-46644 ZMRUBBER 7

35 400-71556 X_FIX_BR_3020 1

36 400-71557 Y_FIX_BR_3020 2

37 SL-3061232-TN SCREW 6

38 400-71507 LPARTSBOX3020ASSY 1

39 400-78695 LPARTSBOX (1)

40 400-78697 LPARTSBOXCUSHION (1)

41 SM-8052502-TP SCREWM5X0.8L=25 1

42 NM-6050001-SC NUTM5X0.8TYPE1 1

43 WP-0531001-SC WASHERM5 1

- -

OPTION

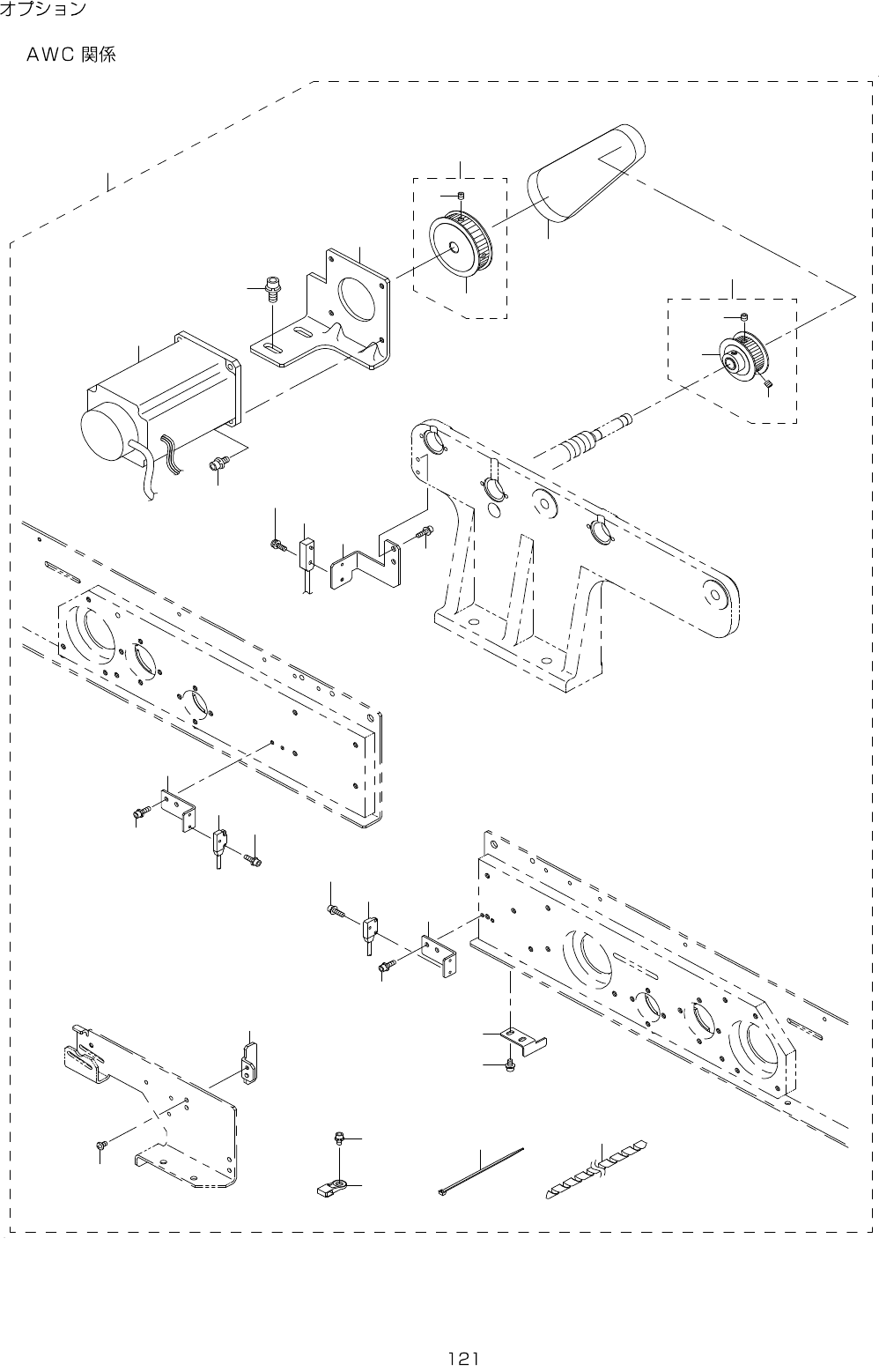

61.AWCCOMPONENTS

1 9

2 0

1 3

1 6

2 3

3 0

2 2

2 4

2 6

2 5

2 8

1 0

2 1

1 7

1 1

1 2

1 5

2 7

1 4

1 8

1 1

1 2

1 5

2 9

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-94743 AWC_3020_MECHANIC_ASM 1

2 400-00768 AWCPULLEYAASM. (1)

3 E2153-725-000 AWCPULLEYA (1)

4 SM-8040602-TP SCREWM4X0.7L=6 (2)

5 400-00769 AWCPULLEYBASM. (1)

6 E2154-725-000 AWCPULLEYB (1)

7 SM-8040402-TP SCREWM4X0.7L=4 (2)

8 SM-8040602-TP SCREWM4X0.7L=6 (2)

9 400-92577 AWCORGSENSASM (1)

10 SL-6031092-TN SCREW (2)

11 400-94550 SENSOR_BRACKET_AWC (2)

12 SL-6031092-TN SCREW (4)

13 400-92569 BUPINSENSOREMISSIONASM (1)

14 400-92575 BUPINSENSORRECEIVERASM (1)

15 SL-6031092-TN SCREW (4)

16 400-48077 AWCMOTORASM (1)

17 E2163-725-000 AWCBRACKETE (1)

18 E2160-725-000 AWCBELT(E) (1)

19 E2161-725-000 AWCOPDOG(E) (1)

20 SL-6030692-TN BOLT (2)

21 E4805-729-000 AWCSENSORBRACKETB(E) (1)

22 SM-4030501-SN SCREWM3L=5 (1)

23 SL-6041092-TN SCREW (4)

24 SL-4031091-SC SCREWM3X10 (2)

25 HX-0034400-00 HARNESSPARTS (1)

26 SL-6030692-TN BOLT (1)

27 EA-9500B01-00 CABLEBAND (2)

28 HX-0052200-00 SPIRALTUBE (0.32)

29 400-65488 BUPINSENSORDOG (1)

30 SL-6051492-TN BOLT (2)
