OPTION

61.AWCCOMPONENTS

1 9

2 0

1 3

1 6

2 3

3 0

2 2

2 4

2 6

2 5

2 8

1 0

2 1

1 7

1 1

1 2

1 5

2 7

1 4

1 8

1 1

1 2

1 5

2 9

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-94743 AWC_3020_MECHANIC_ASM 1

2 400-00768 AWCPULLEYAASM. (1)

3 E2153-725-000 AWCPULLEYA (1)

4 SM-8040602-TP SCREWM4X0.7L=6 (2)

5 400-00769 AWCPULLEYBASM. (1)

6 E2154-725-000 AWCPULLEYB (1)

7 SM-8040402-TP SCREWM4X0.7L=4 (2)

8 SM-8040602-TP SCREWM4X0.7L=6 (2)

9 400-92577 AWCORGSENSASM (1)

10 SL-6031092-TN SCREW (2)

11 400-94550 SENSOR_BRACKET_AWC (2)

12 SL-6031092-TN SCREW (4)

13 400-92569 BUPINSENSOREMISSIONASM (1)

14 400-92575 BUPINSENSORRECEIVERASM (1)

15 SL-6031092-TN SCREW (4)

16 400-48077 AWCMOTORASM (1)

17 E2163-725-000 AWCBRACKETE (1)

18 E2160-725-000 AWCBELT(E) (1)

19 E2161-725-000 AWCOPDOG(E) (1)

20 SL-6030692-TN BOLT (2)

21 E4805-729-000 AWCSENSORBRACKETB(E) (1)

22 SM-4030501-SN SCREWM3L=5 (1)

23 SL-6041092-TN SCREW (4)

24 SL-4031091-SC SCREWM3X10 (2)

25 HX-0034400-00 HARNESSPARTS (1)

26 SL-6030692-TN BOLT (1)

27 EA-9500B01-00 CABLEBAND (2)

28 HX-0052200-00 SPIRALTUBE (0.32)

29 400-65488 BUPINSENSORDOG (1)

30 SL-6051492-TN BOLT (2)

- -

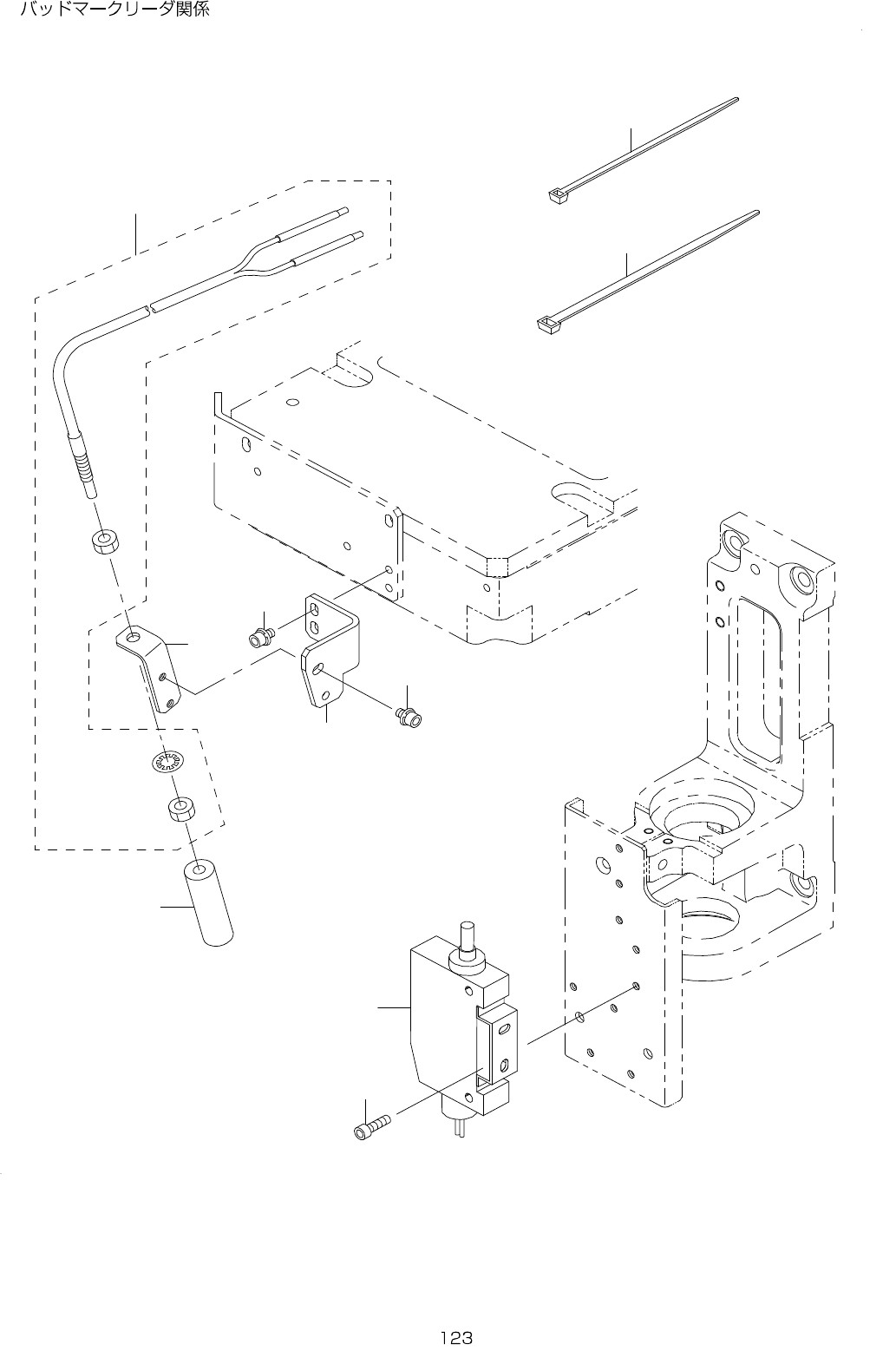

62.BADMARKREADERCOMPONENTS
