- - 66. NOZZLEASSE MBLY&SUPPORT PINCOMPONENT S 3 4 6 5 1 2 1 3 1 4 1 5 1 6 1 7 1 2 7 8 9 1 8 1 0 1 1
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-01988 CVSUNIT 1
2 400-99513 CVSBASE (1)
3 400-99514 CVSBASEP (1)
4 SM-6051202-TN SCREWM5X0.8L=12 (2)
5 401-05839 CVS_BRACKET (1)
6 SM-3041052-TN SCREWM4L=10 (6)
7 401-01989 CONTACTSUBUNIT (6)
8 401-05838 CVS_COVER (1)
9 SM-3030552-TN SCREWM3L=5 (5)
10 400-48829 STUD17 (5)
11 HX-0035400-0G BOARDPARTS (4)
12 SM-1030552-TN PLATESCREWM3L=5 (4)
13 SL-4030681-SC SCREWM3L=6 (1)
14 HX-0029400-00 FIXEDBASE (4)
15 SM-4040601-SC SCREWM4X0.7L=6 (4)
16 401-05840 CVS_PCB_COVER (1)
17 SM-3030552-TN SCREWM3L=5 (2)
18 400-80833 SPONGE (1)
19 SL-6030592-TN SCREWM3L=5 (12)
20 SL-6062092-TN SCREWM6L=20 4
21 400-95117 CVSPCBASM. 1
- -
66.NOZZLEASSEMBLY&SUPPORTPINCOMPONENTS
3 4
6
5
1 2
1 3 1 4 1 5
1 6
1 7
1 2
7 8 9
1 8
1 0
1 1
- -

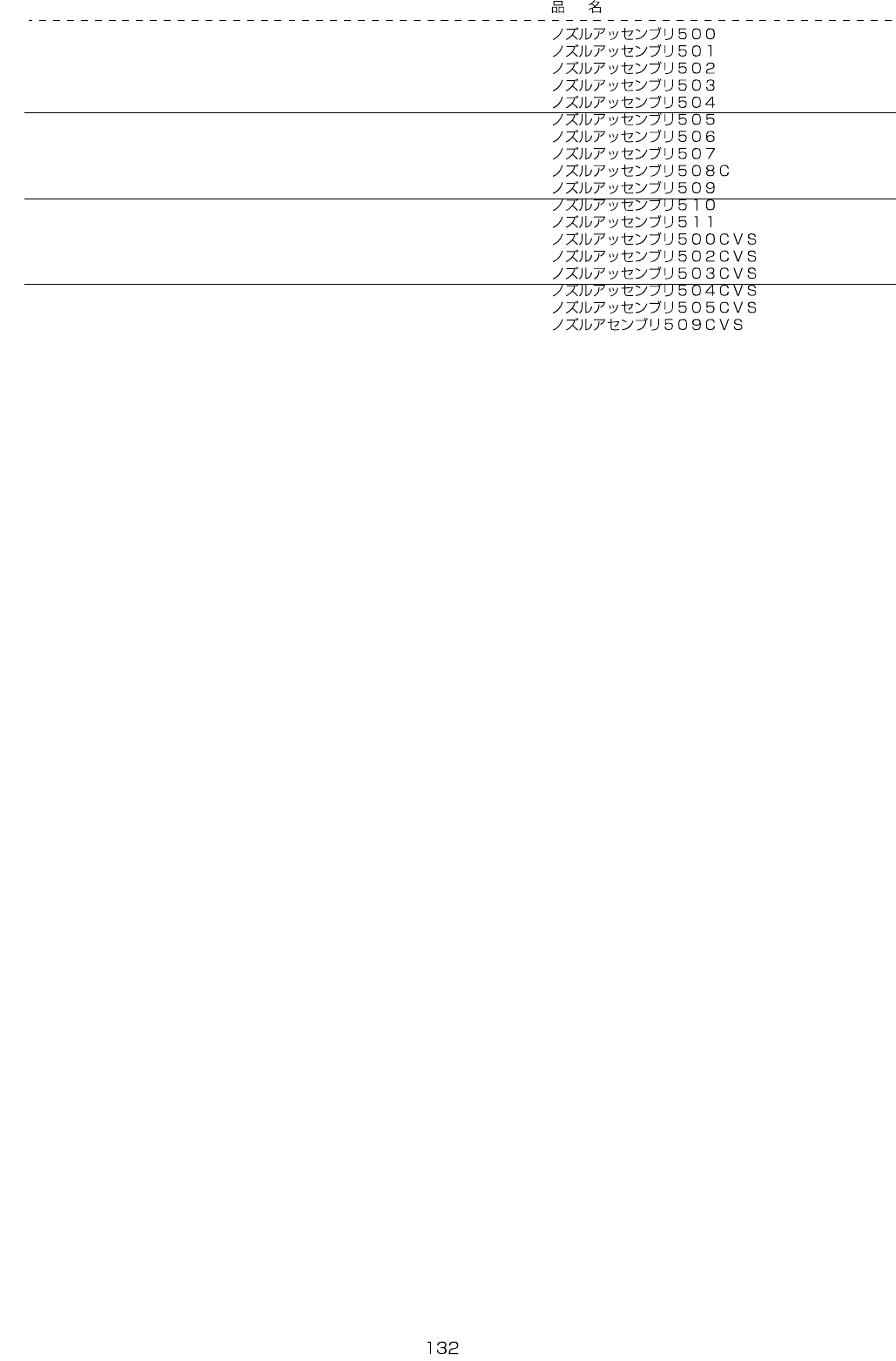

REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-11046 NOZZLEASSEMBLY500 1
2 400-01339 NOZZLEASSEMBLY501 1
3 400-01340 NOZZLEASSEMBLY502 1
4 400-01341 NOZZLEASSEMBLY503 1
5 400-01342 NOZZLEASSEMBLY504 1
6 400-01343 NOZZLEASSEMBLY505 1
7 400-01344 NOZZLEASSEMBLY506 1
8 400-01345 NOZZLEASSEMBLY507 1
9 400-44239 NOZZLEASSEMBLY508C 1
10 400-25165 NOZZLEASSEMBLY509 1
11 E3615-729-0A0 NOZZLEASSEMBLY510 1
12 E3616-729-0A0 NOZZLEASSEMBLY511 1
13 400-10999 NOZZLEASSEMBLY500CVS 1
14 400-10995 NOZZLEASSEMBLY502CVS 1
15 400-10996 NOZZLEASSEMBLY503CVS 1
16 400-10997 NOZZLEASSEMBLY504CVS 1
17 400-10998 NOZZLEASSEMBLY505CVS 1
18 401-05854 NOZZLEASSEMBLY509CVS 1
